POWER

Hooklift

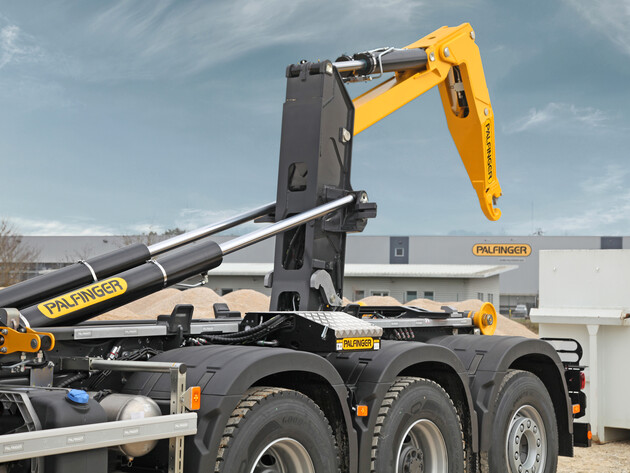

Designed for the harshest work, it will never let you down

Designed to operate in harsh environments or off-road applications, the HP 24 A ensures easy and safe handling of loads up to 24 t. The available power of the Power hooklift allows optimal use, even in difficult working conditions, even if the load exceeds the expected weight, and if the container is in a ditch.

It can be installed on chassis of 32 t and more GVW, covering all the jobs that require powerful and robust equipment: in agriculture, construction, off-road and several other application areas.

Thanks to its articulated arm, the Power A reduces the loading angle and thus the risk of spillage.  It also optimizes the positioning of short or long boxes on the truck, ensuring good weight distribution and load stability.

ADVANTAGES of the POWER category

  • Lifting capacity remains the same for any frame height
  • Robust design for tough applications
  • Pit loading
  • Minimal maintenance and reduced wearing

DIRECT LOAD TO

Downloads Technical Data Request a quote TEC CONFIGURATION

HP 24 A

Unit length (mm) Container max. length (mm) Container min. length (mm) Transport height Weight (kg) Tipping angle (°)
5000 6000 4000 280 2550 46
5000 6000 4000 280 2550 46
5200 6200 4200 280 2600 49
5300 6400 4250 280 2650 49
5450 6600 4500 280 2700 47
5600 6800 4500 280 2750 45
5750 7000 4750 280 2800 47
5950 7200 5000 280 2800 47
6100 7400 5000 280 2850 45
6250 7600 5250 280 2850 44
6450 7800 5500 280 2900 44
6650 8000 5500 280 2900 44

HP 24 AR

Unit length (mm) Container max. length (mm) Container min. length (mm) Transport height Weight (kg) Tipping angle (°)
5000 6200 4000 300 2800 44
5200 6400 4200 300 2850 47
5300 6400 4400 300 2900 47
5450 6600 4400 300 2950 47
5600 6800 4600 300 3000 45
5750 7000 4800 300 3050 47
5950 7200 5000 300 3050 47
6100 7400 5200 300 3100 45
6250 7600 5200 300 3100 44
6450 7800 5400 300 3150 44
6650 7800 5600 300 3150 44
TEC CONFIGURATION

CUTTING EDGE OPTIONS

MEMORY POSITION

Pre-set hookheigth stop including soft landing and opening of safety latch to ease and smooth operations.

SYSTEM MONITORING

Improved operational safety thanks to in-cab screen and 3 cameras monitoring the system and surroundings, including view following function.

SILENT MODE

Replacement of buzzer by flashing lights to improve working conditions while maintaining a high level of safety. Perfect for night urban use or on etrucks.

E-PTO CONTROL VIA CANBUS

Reduced energy consumption due to on-demand pump control and optimized oil flow for hookloaders installed to e-trucks.

Proportional speed

Precise control of the speed of the arm movement to easily catch the container bar and smooth the landing without wasting time in the rest of the handling phase.

Automatic cycle

Perform all necessary hydraulic functions automatically one after the other  in a planned sequence by simply operating one single joystick.

Central lubrication

Save time with central lubrification in one point located at safe and convenient location for the operator. Ease the weekly maintenance process to increase uptime and life cycle.
