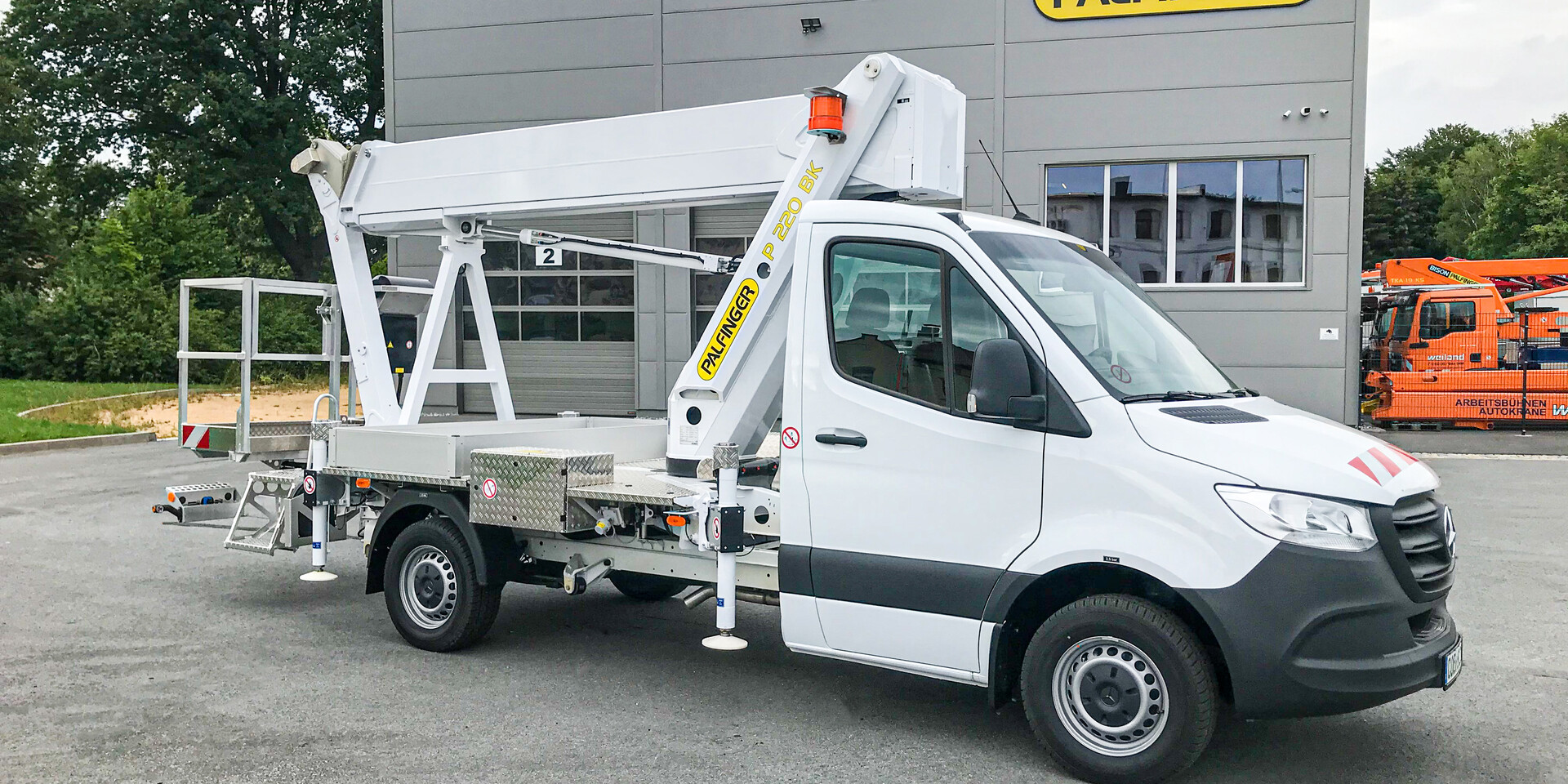

P 220 BK
Working Height 22 M
Basket Load 300 KG
Side Reach 16,90 m
Perfection in Action
Images & Videos
|Max. height of work||22 m|
|Max. basket floor height||20 m|
|Max. horizontal outreach /with basket load||16,90 m|
|Slewing range of basket||+/- 90°|
|Max. stabilizer spread||3.6 m|
|Operating angle of working arm||185°|
|max. basket load||300 kg|
|Workman basket - breadth / length / height||1,4 x 0,7 x 1,1 m|
|Rotation angle of turntable||500°|
|Width in transport position||2.22 m|
|Overall length||7.4 m|
*above mentioned values are standard values and vary depending on options and chassis
Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
