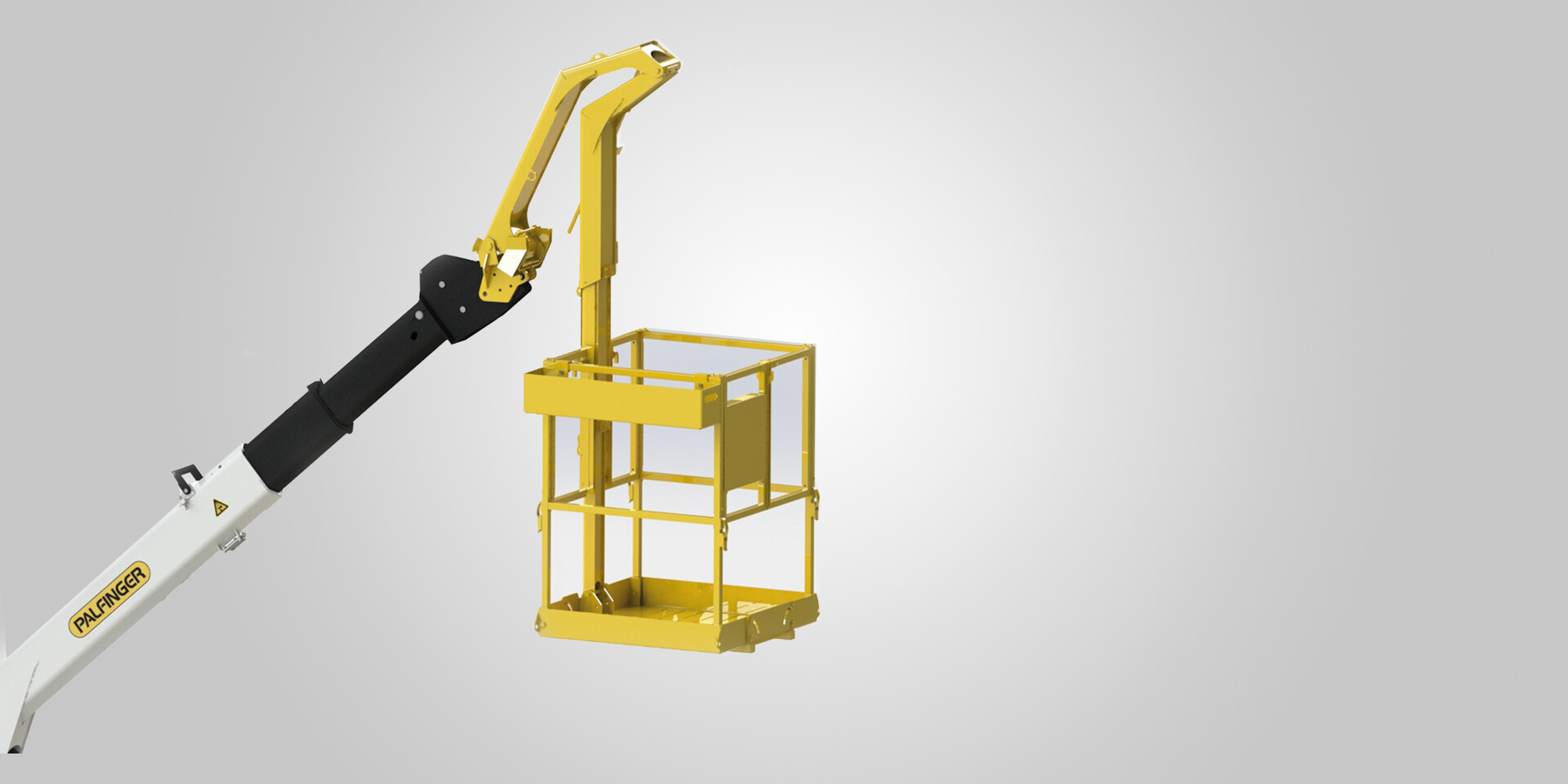

Service Crane Accessory
|Load Capacity (1 person & tools)||
300 lbs. | 136 kg.
|Weight of Basket||
280 lbs. | 127 kg.
|Weight of Complete System (Basket, Boxes, Quick-Connect)||
400 lbs. | 181 kg.
|Minimum Required Lifting Capacity||
870 lbs. | 395 kg.
30"x30" | 762 mm x 762 mm
40.5" | 1029 mm
2 doors spanning from the immediate to top rails
Gravity & Hydraulic Dampening/Locking System
|Mounting||Quick Connect Mounting|
|Personnel Anchor||Located on Quick Connect|
|Controls||Crane RRC System|
|Insulation||Personnel Basket is not insulated|
|Working Height on PSC 6025||
33' | 10.1 m
Working Height on PSC 4329, PSC 6229, PSC 7229, PSC 8629
37' | 11.1 m
