Slider
ILFP
Slider Lift
Liftgates
Imperial
Metric
Weight Capacity
Weight Capacity
Up to 1814 kg
Up to 4000 lbs.
Platform Size
Platform Size
Up to 1955.8 mm x 2133.6 mm
Up to 77"x84"
Bed Height
Bed Height
Up to 1346.2 mm
Up to 53"

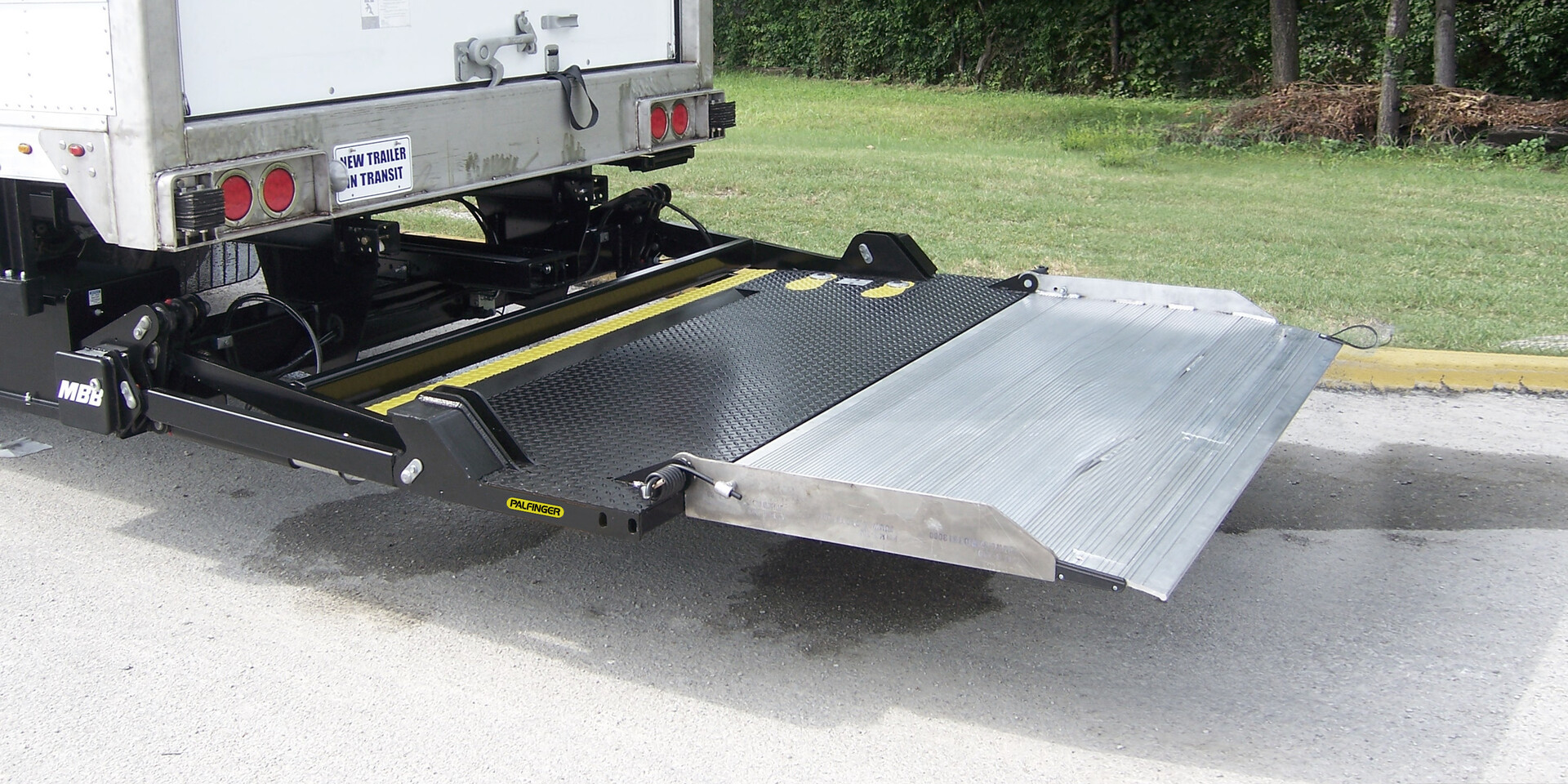

Our flat platform slider offers increased productivity, safety and lower running costs for fleets handling large and bulky products. The ILFP Side Lift is designed for swing and roll-up door equipped trucks and trailers and combines features like unobstructed dock loading access with a flat slim-line column lift type platform.
| Lifting capacity (lbs) | Platform size length (inch) | Platform size width (inch) | Bed height range (inch) | Approx. weight (lbs) | |
|---|---|---|---|---|---|
| ILFP 30 | 3000 | Available in 58" | 70" lengths | 84" | 35-53" | 1350-1450 lbs. |
| ILFP 40 | 4000 | Available in 58" | 70" lengths | 84" | 35-53" | 1350-1450 lbs. |
| Lifting capacity | Platform size length | Platform size width | Bed height range | Approx. weight | |
|---|---|---|---|---|---|
| ILFP 30 | 1360 | Available in 1473 mm | 1778 mm lengths | 2133 mm | 889-1346 mm | 612-657 kgs. |
| ILFP 40 | 1814 | Available in 1473 mm | 1955 mm lengths | 2133 mm | 889-1346 mm | 612-657 kgs. |
- Flat platform - level ride with ability for the tip to touch ground if uneven surface is present (same as our level ride folding units).
- 150 AMP circuit breaker
- On-off switch
- Torsion assisted aluminum tip section
- Bushings and zerks at all pivot points
- Hydraulic cylinder locks
- Pre-mounted, enclosed power pack inside mount frame
- E-coat paint process
- Hand held remote
- Auxiliary truck and trailer kits
- Cart stops
- Extra heavy duty trailer dock bumpers
- DOT rear impact guard
- Platform mounted foot controls
- Folding retension ramps
- Wireless remote
