L-Line
Q150L
Timber & Refuse Loaders

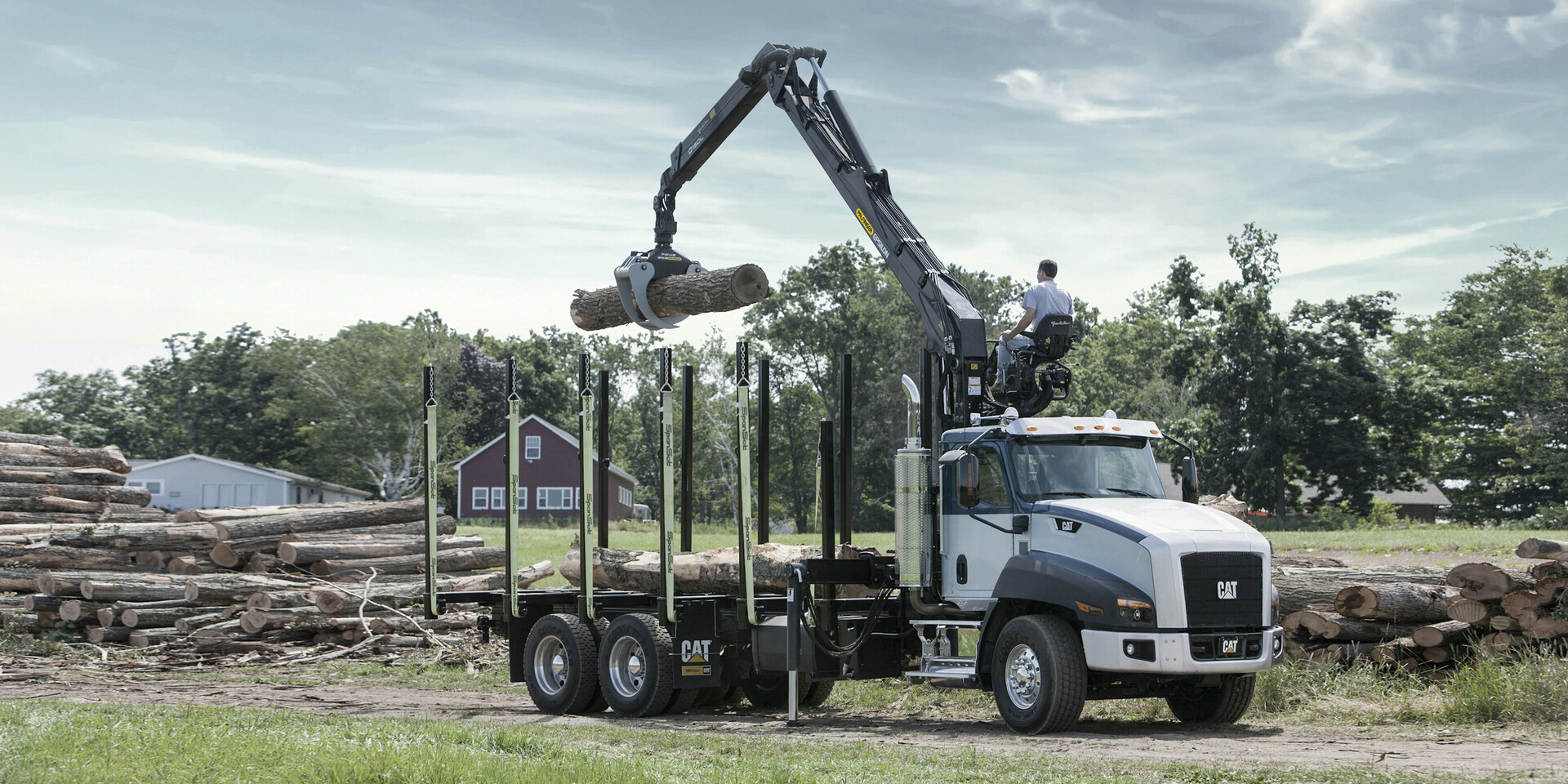

The Q-Series is the upper end of the medium-duty class of EPSILON loaders in the L-Line product range. Providing a diverse range of configurations to offer customized solutions, the Q150L is built to maximize speed, productivity and stability. The Q150L is the perfect choice for forestry and recycling applications.
EPSCOPE
Extension components are located inside the boom for maximum protection. Unparalled speed and precision derived from a synchronized chain/cylinder combination. Service maintenance is facilitated by protective covers that provide access to exchange hoses, pipes, and cylinder. No need to dismantle boom.
EPSLINK
Provides maximum protection and maneuverability through internal hose routing. No more hoses hang around the link/rotator vulnerable to breakage from timber/refuse or from being stowed on the load.
| Max. lifting capacities (lbs.) | Max capacity at full extension (lbs.) | Max outreach (ft.) | Weight without rotator/grab (lbs.) | Slewing torque (mt) | Slewing angle | Operating pressure | |
|---|---|---|---|---|---|---|---|
| Single | 10406 | 3791 | 26.2 | 5313 | 22127 | 425 degrees | 3480 psi - 2x21 gpm |
| Double | 9987 | 3218 | 31.8 | 5710 | 22127 | 425 degrees | 3480 psi - 2x21 gpm |
| LIFTING | Max capacity at full extension (kg.) | Max outreach (m) | Weight without rotator/grab (kg.) | Slewing torque (ft.lbs) | Slewing angle | Operating pressure | |
|---|---|---|---|---|---|---|---|
| Single | 4720 | 1720 | 8 | 2410 | 30 | 425 degrees | 240 bar - 2x80 l/min. |
| Double | 4530 | 1460 | 9.7 | 2590 | 30 | 425 degrees | 240 bar - 2x80 l/min. |
