Rotating - Slider
CC80RS
Slider with Rotator
Container Delivery Unit (CDU)

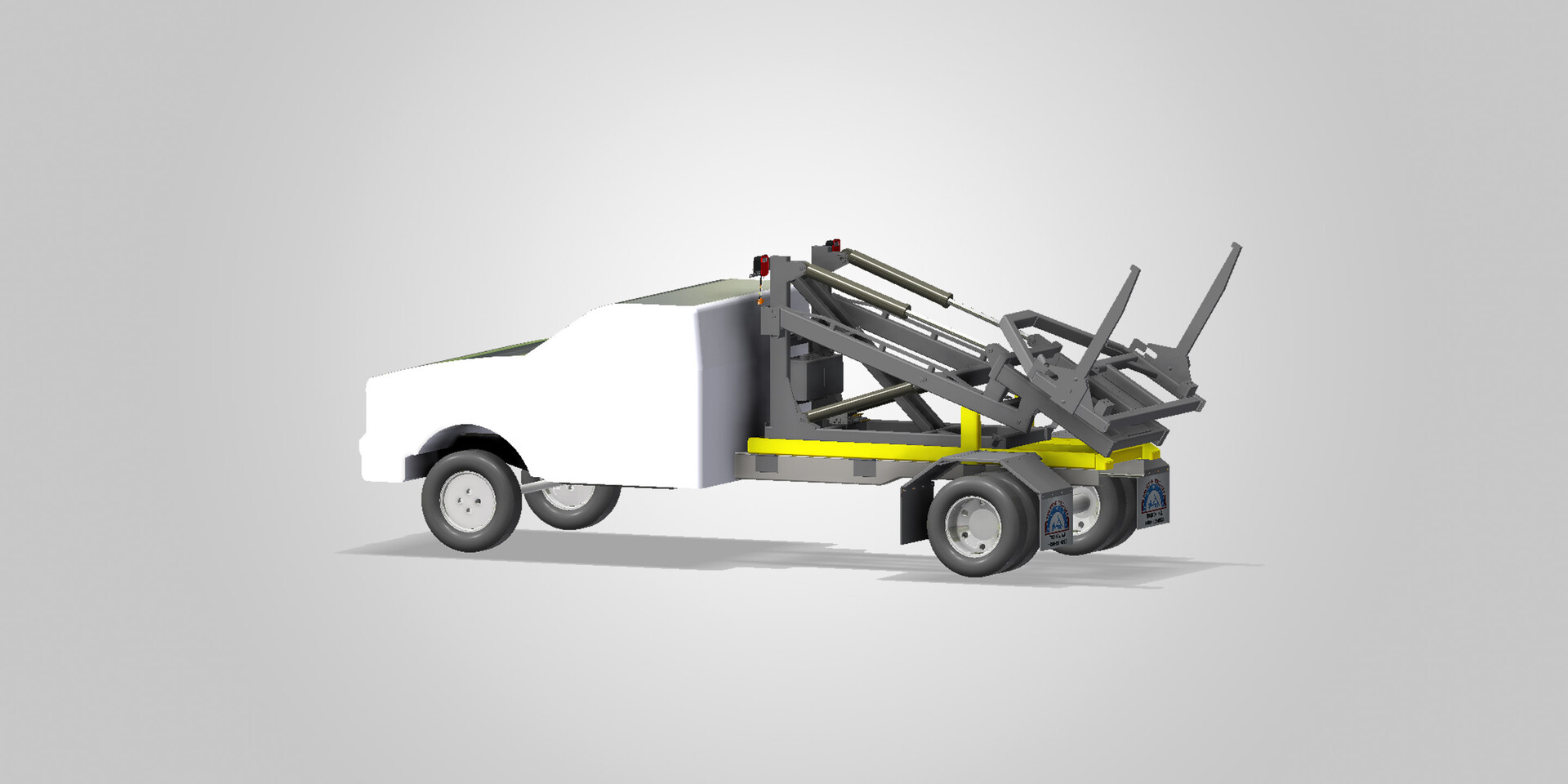

Offering many benefits like increased efficiency on the job, added convenience for the user and safe operation, the CR80RS is your reliable carrier for heavy weight applications. Frame-mounted rollers offer smooth sliding operation while the 360 degree rotation offers added versatility on the job.
OPTIONS INCLUDE:
| Lifting Capacity | 8000 lb |
| Rotating capacity (360° bi-rotational) | 8000 lb |
| Weight (approx.) | 3500 lb |
| Sliding Distance | 36" |
| Forks (heat treated - bolt on) | 1-1/2" x 48" |
| Control valve | 4 spools |
| Operating pressure | 3000 psi |
| Hydraulic tank | 10 gal. |
| Lift cylinders | 3-1/2" |
| Tilt Cylinders | 4" |
| Optimum C/A | 108" |
| Recommended GVWR | 24000 lb |
| Container sizes | 2-10 cu. yd. |
| Shipping Weight | 3500 lb |
| Lifting Capacity | 3628 kg |
| Rotating capacity (360° bi-rotational) | 3628 kg. |
| Weight (approx.) | 1587 kg |
| Sliding Distance | 914.4 mm |
| Forks (heat treated - bolt on) | 1-1/2" x 48" |
| Control valve | 4 spools |
| Operating pressure | 3000 psi |
| Hydraulic tank | 37.8 l |
| Lift cylinders | 3-1/2" |
| Tilt Cylinders | 4" |
| Optimum C/A | 108" |
| Recommended GVWR | 24000 lbs |
| Container sizes | 2-10 cu. yd. |
| Shipping Weight | 1587 kg |
