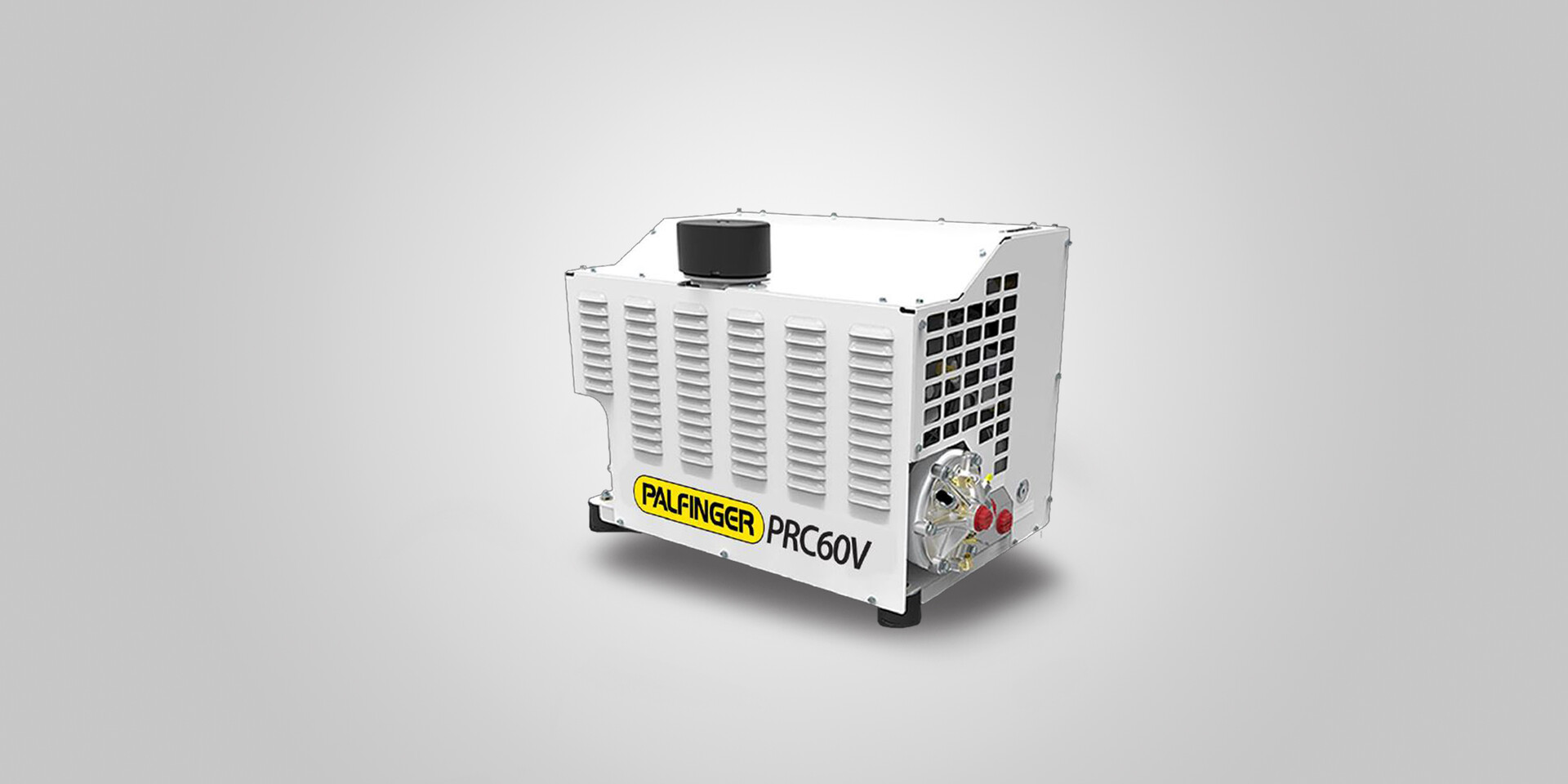

PRC 60V Hydraulic Rotary Screw Compressor
60 CFM
Mechanics Trucks
The PALFINGER PRC 60V compressor model is a hydraulic driven deck mounted rotary screw air compressor built for the modern work truck. When space is at a premium and weight savings is a priority, rely on the smallest and lightest hydraulic deck mount compressor available at 160 lbs. Our compressor systems are designed to work in the most extreme climate conditions, with built-in protection to operate anywhere you work. With a CFM range of 60 CFM with 100% duty cycle for continuous air output, you can expect PALFINGER compressors to handle your workload.
EASY TO OPERATE
How easy? Simply press the on/off button on the digital display box or radio remote controller. The control system will take care of the rest! The display will show the system status and if something isn’t right, it will tell you. When you stop using air for any reason, the compressor goes into Standby Mode. This means essentially it is off, but ready to start up automatically the moment you need air*.
*Assuming proper safety conditions are in place: truck is parked safely and PTO engaged.
| COMPRESSOR | |
| Style | Oil-injected rotary screw |
| Air Delivery | 60 CFM @ 100 psi (7 bar) |
| Max. System Pressure | 150 psi (10.3 bar) |
| Duty Cycle | Continuous, 100% |
| Drive | Spline Drive (Hydraulic Driven Motor) |
| Air Outlet | 3/4" NPT |
| Integrated Valves | Automatic air pressure blow-down valve, one-way air system check valve, 200 psi air pressure relief valve |
| HYDRAULICS | |
| Flow Requirements | 12-18 gpm (45-68 l/min.) |
| Normal Operating Pressure | 2,500 psi (172 bar) |
| Max. Operating Pressure | 2,750 psi (189 bar) |
| Inlet Port Size | #12 ORB |
| Outlet Port Size | #16 ORB |
| Hydraulic Cooler | Integrated dual chamber hydraulic and compressor oil radiator with 12 volt thermally activated 16" cooling fan |
| ELECTRICAL | |
| Controls | LCD digital display box (system status, adjustable parameters, error reporting) |
| Fan | 16", 12V thermally activated |
| SAFETY & MAINTENANCE | |
| Shutdown | High compressor and hydraulic oil temp shutdown |
| Indicators | LED indicators on control box |
| Access | Removeable top, front and side panels |
| Cold Start | Cold start protection |
| Pressure Relief | 200 psi (13.8 bar) air pressure relief valve |
| Hydraulic Pressure Relief | 3,300 psi (227 bar) hydraulic pressure relief valve |
| Cooler Bypass | Hydraulic cooler bypass check valve |
| ADDITIONAL SPECS | |
| Dimensions | 16.5"w x 24.0"l x 18"h (42cm w x 61cm l x 46cm h) |
| Weight (dry) | 160 lbs (73 kg) |
| Canopy | Powder coated aluminum |
