Smart Class

P 170 TXE- E Smart Plus

Access Platform

Working Height 16.9 M

Basket Load 250 KG

Side Reach 11.80 m

Technical Data

P 170 TXE- E Smart Plus

Maximum performance offered by lateral outreach and small stabilisation footprint

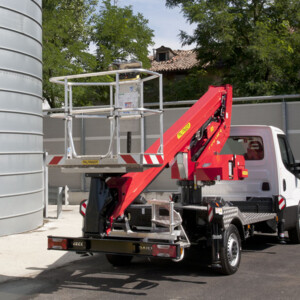

Advanced performance telescopic platform, mounted on a 3.5 tonne truck.
Multifunction electric controls for greater precision, speed, and manoeuvring comfort
Vertical stabilisation with frontwards extending outriggers which compensate for uneven and sloping ground
Platform with three stabilisation possibilities for each working condition:

Within the outer vehicle limits: for maximum compactness overall within small spaces
With front outriggers extended: for maximum performance when working in elevated positions
Partial stabilisation: for maximum performance with minimum overall dimensions.

Downloads

Perfection in Action

Images & Videos

Max. height of work	16.9 m
Max. basket floor height	14.9 m
Max. horizontal outreach /with basket load	11.80 m
Slewing range of basket	2 x 90°
max. basket load	250 kg
Workman basket - breadth / length / height	14 x 085 x 11
Angle of main boom	-25° + 80°
Rotation angle of turntable	370°
Height in transport position	2.91 m
Width in transport position	2.19 m
Length in transport position	6.9 m

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
