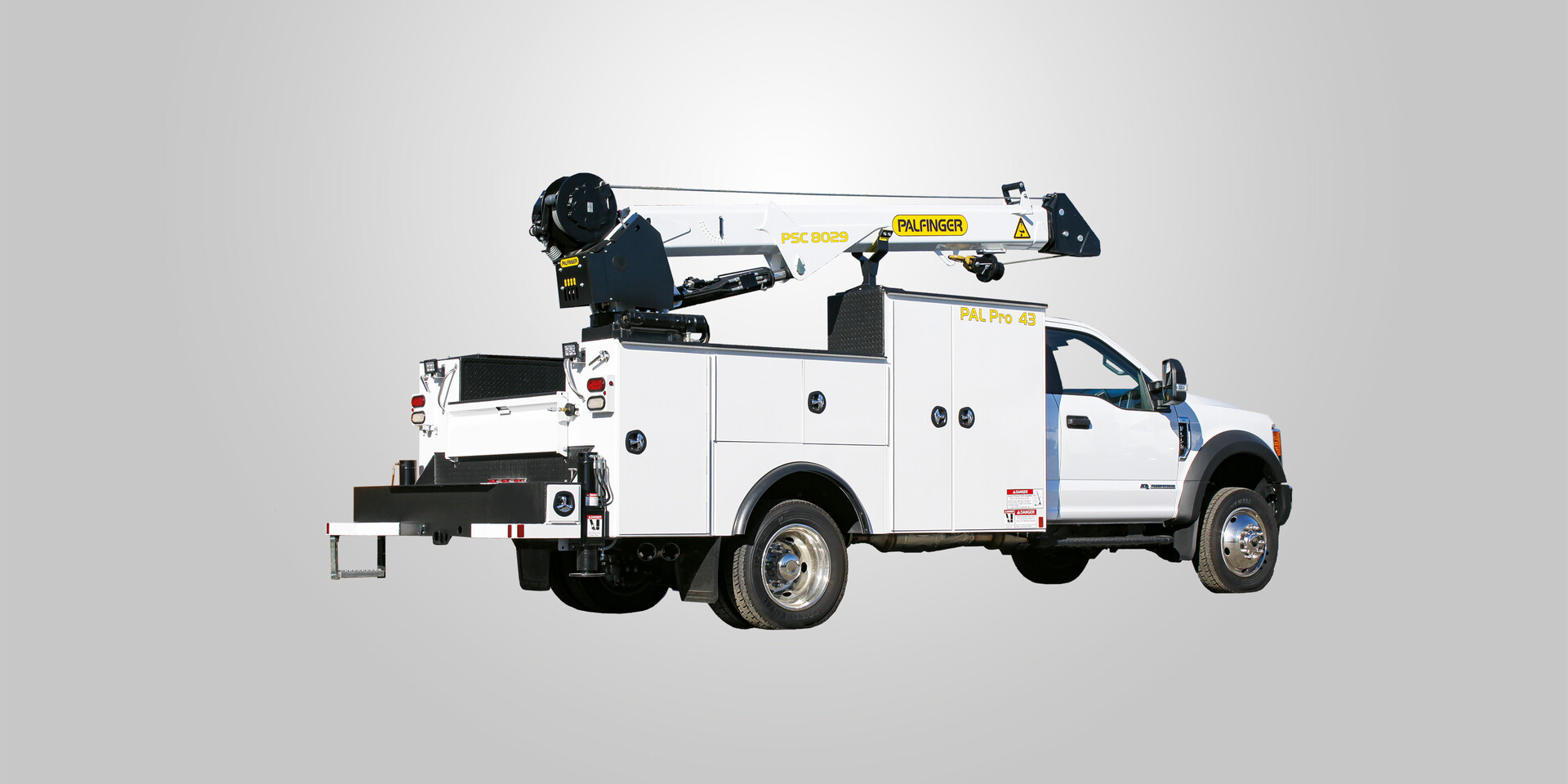

PAL Pro 43 Mechanics Truck

up to 43,000 ft lbs

PAL Pro 43

Mechanics Trucks

True Crane Body — 43,000 ft. lbs.
Imperial Metric
Max Lifting Moment 49180 ft. lbs.
Chassis Class Up to 5

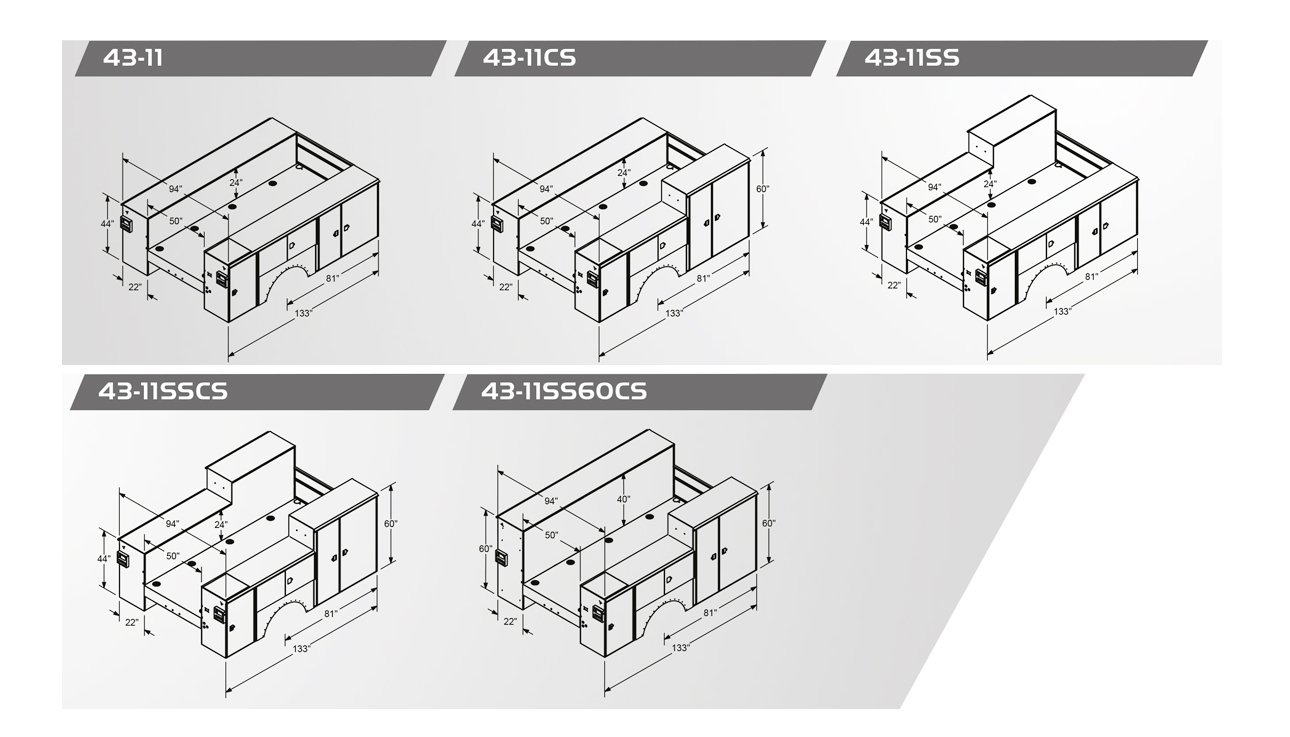

Standard Configuration Up to 11'

PAL Pro 43 is our leading weight-optimized mechanics body built to handle our more significant 8,000 lbs. service crane rated at 43,000 ft. lbs. lifting capacity.  Like all true crane bodies from PALFINGER, the PAL Pro 43 is manufactured with 12-gauge all A-60 galvanneal construction, a hybrid torsion box that eliminates frame and size pack deflection and the best rust protection in the industry.


PAL Pro Mechanics Truck E-Coat Process
PALFINGER Personnel Basket
Multiple Layers of Protection

The Ultimate Rust Protection

The PAL Pro 43 mechanics body is designed to hold up against the toughest job site conditions. A 12-step epoxy electrocoat (E-Coat) process provides the best anti-corrosion protection available for steel bodies and cranes, and is backed by our 6-year rust-thru guarantee.

Learn More
Personnel Basket

Innovative & Compact Aerial Lift Solution

An industry first developed by PALFINGER, our collapsible personnel basket provides mobile mechanics quick and easy aerial access on the job site. When the job is done, the basket is easily collapsed and stored onto the body for transport.

Learn More


Built for powerful cranes

PAL Pro 43 is manufactured using 12-gauge A-60 galvanneal steel and features a full-length hybrid torsion box understructure that eliminates frame and side pack deflection. Combined with integrated outrigger housings that transfer crane load directly to the ground, PAL Pro 43 effectively manages crane forces while preventing flexing and cracking.

PAL Pro 43 features a 43,000 ft. lbs. crane reinforcement designed to accommodate PALFINGER PSC 3216, 4016, 4025, 5025, 6025, and 8029 service cranes.

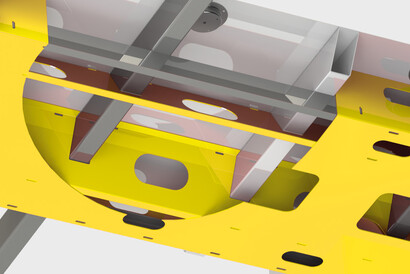

Optimized for increased payload

PAL Pro 43 is designed to be light-weight without sacrificing durability. Tubular 3”x 5” structural steel crossmembers interlaced into the body's understructure and internal gussets on every raised compartment provide a rigid body for storage of equipment, tools, and accessories.

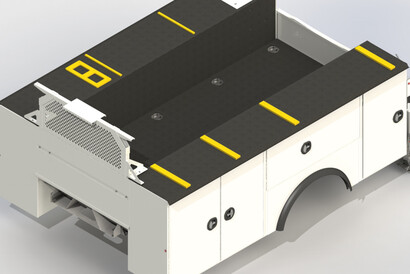

Ready for top mounted accessories

Threaded weldment options available from the factory make installing top mounted accessories easy. Boom rest, welder, compressor, EnPak, Air-n-Arc and AirPak mounts eliminate the need to drill holes in the body.

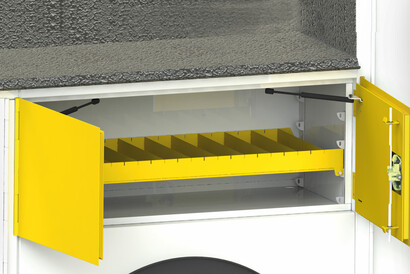

Light-weight aluminum doors & trays

PAL Pro 43 features light-weight aluminum double panel doors that provide rigid performance with internal C-channel stiffeners adhered with structural adhesive. Interior compartments feature aluminum hinges and divider trays that are light-weight and corrosion resistant.


Zolatone interior compartment coating

Interior compartments on the PAL Pro 43 are coated with Zolatone to resist damage commonly caused by tools, chains, and parts. Zolatone provides an additional layer of rust protection and as an added bonus, the coating is white in color and helps to brighten up the interior.

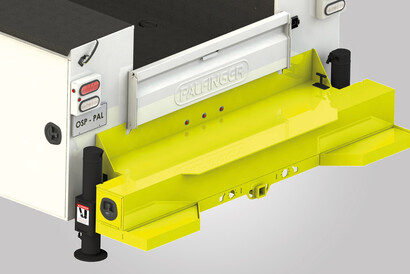

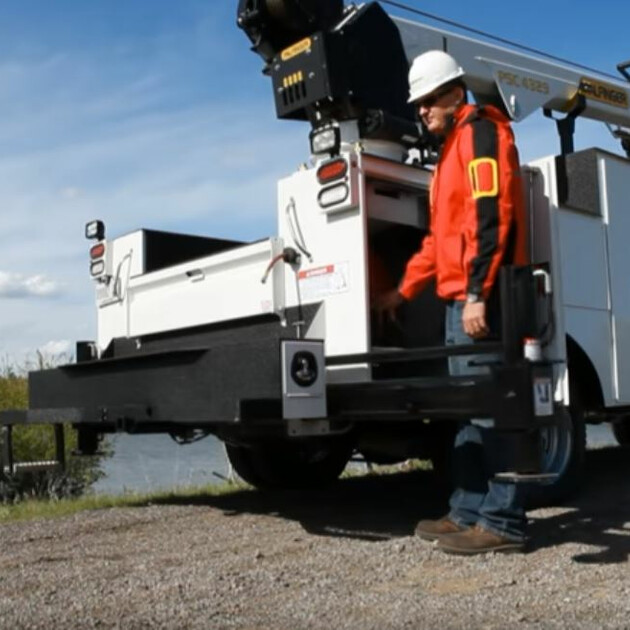

A true mechanics work bench

PAL Pro 43 features either a 12" or 21" deep work bench bumper designed to provide technicians with a useable work surface for field repairs, welding, and more. Each bumper features a 1/4" steel top plate and the 21" bumper adds a thru-compartment for internal storage of long tools and chains.


Integrated hitch receiver

All PAL Pro 43 bumpers come standard with a 2" class 5 receiver tube hitch rated for 16,000 lbs. of towing capacity.
