up to 39,000 ft lbs

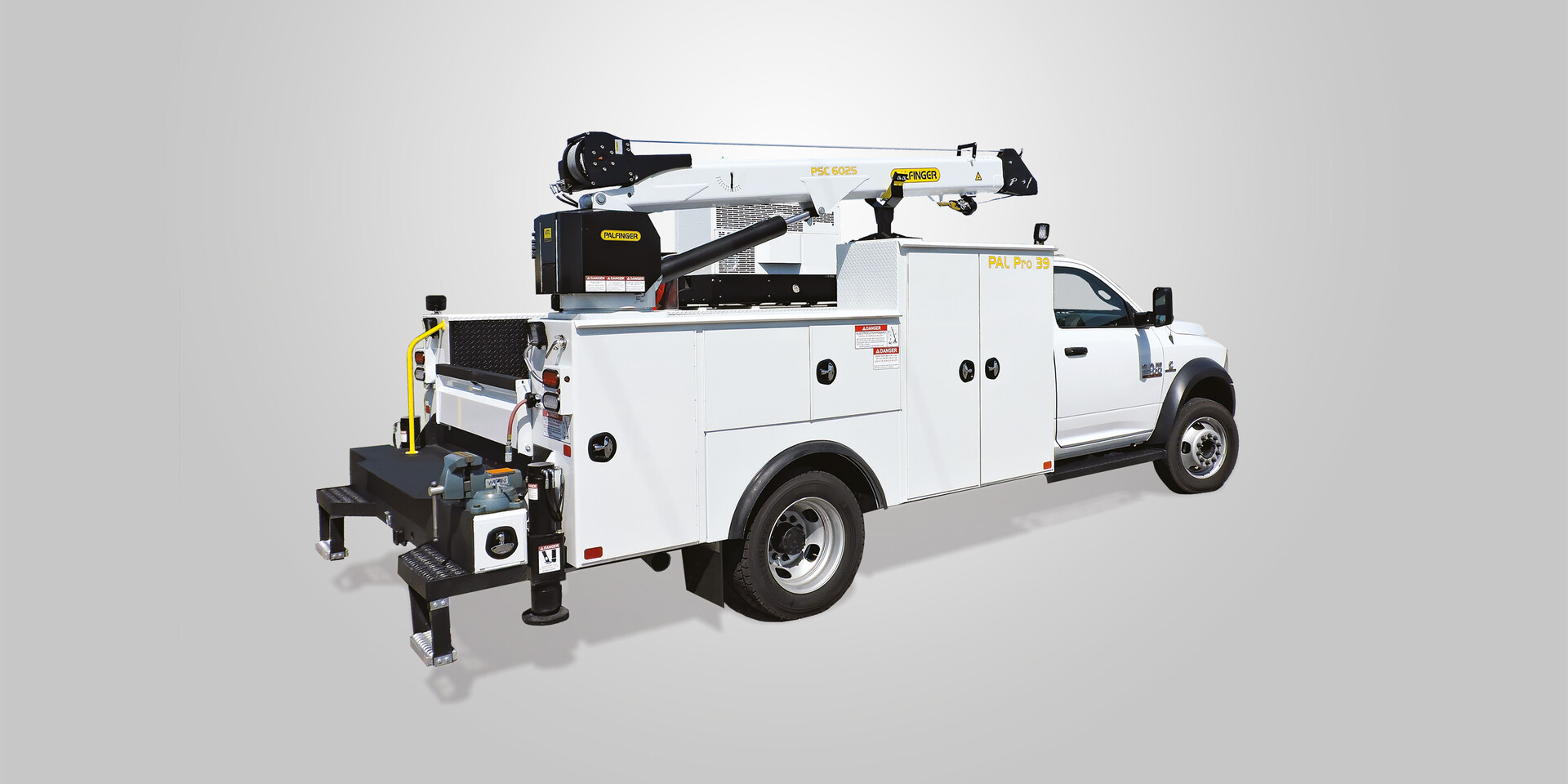

PAL Pro 39

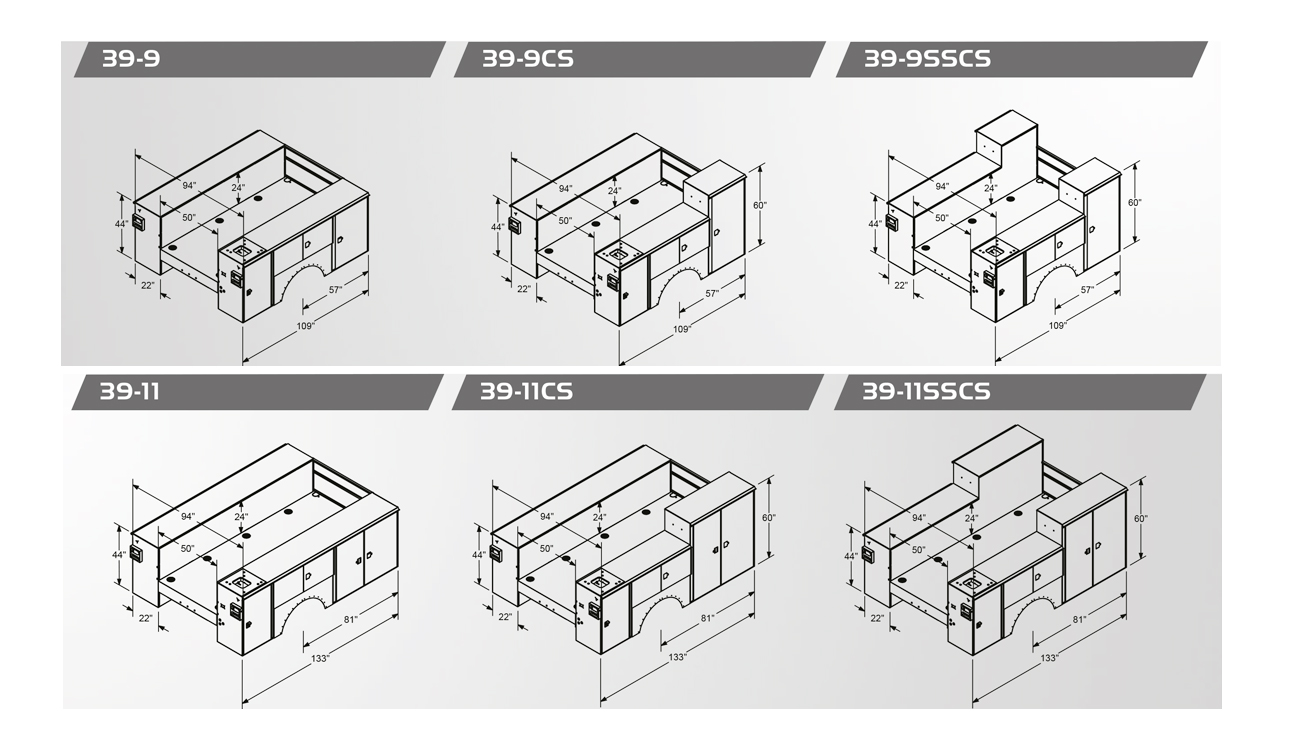

The PAL Pro 39 is our new weight-optimized generation of bodies available in 9' and 11' configurations. In this development, we discovered new ways to reduce weight and becoming the lightest steel crane body in the industry without sacrificing durability.

Featuring new light-weight aluminum doors, the PAL Pro 39 offers you more usable payload and reduced corrosion. Choose from a variety of standard options to meet your service truck needs including a headache rack, accessory mounting brackets, tailshelf and bumper options, and much more.

Each PAL Pro 39 is manufactured with 12 gauge all A60 galvanneal steel construction, a hybrid torsion box that eliminates frame and side pack deflection, and the best rust protection in the industry.

APPLICABLE CRANE MODELS

APPLICABLE COMPRESSORS

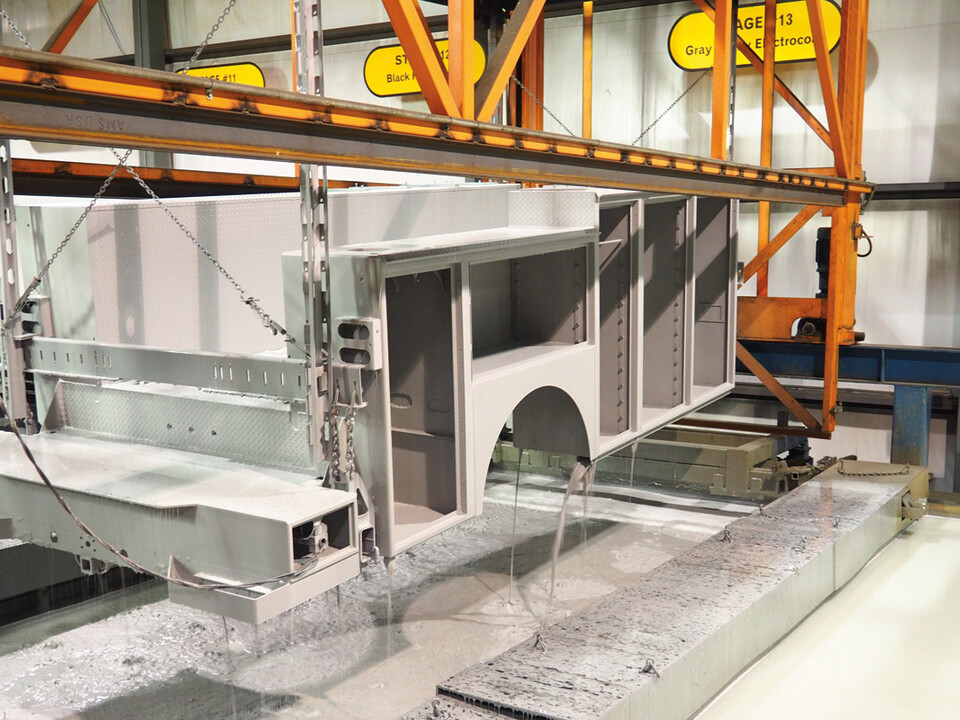

PAL Pro Mechanics Truck E-Coat Process
PALFINGER Personnel Basket
Multiple Layers of Protection

The Ultimate Rust Protection

The PAL Pro 39 mechanics body is designed to hold up against the toughest job site conditions. A 12-step epoxy electrocoat (E-Coat) process provides the best anti-corrosion protection available for steel bodies and cranes, and is backed by our 6-year rust-thru guarantee.

Learn More

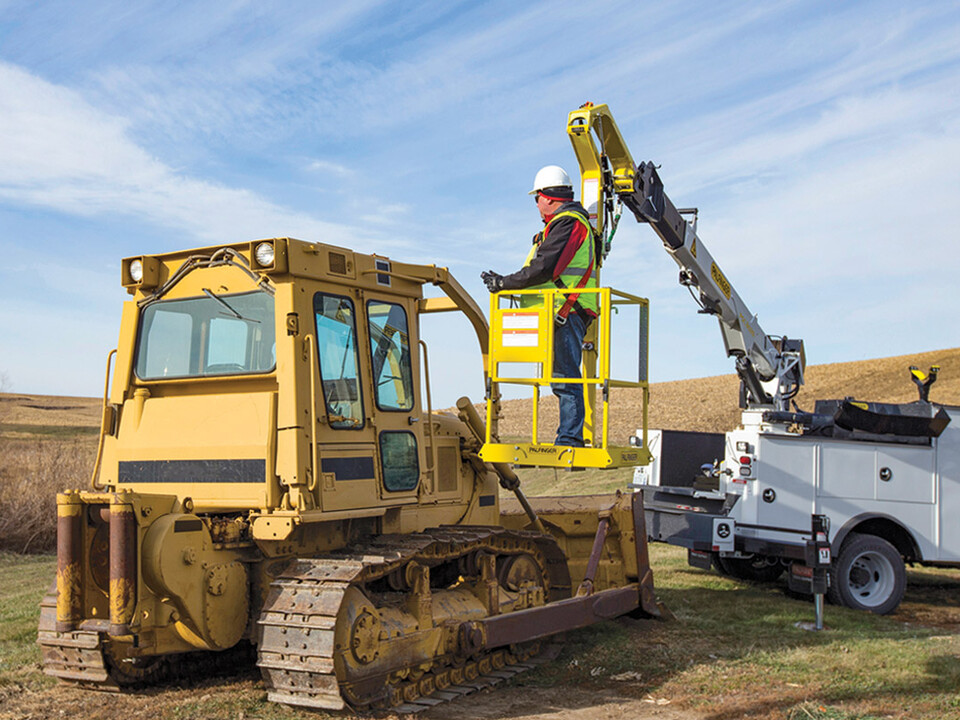

Personnel Basket

Innovative & Compact Aerial Lift Solution

An industry first developed by PALFINGER, our collapsible personnel basket provides mobile mechanics quick and easy aerial access on the job site. When the job is done, the basket is easily collapsed and stored onto the body for transport.

Learn More

Highlights

$2,000 Rebate on qualifying PAL Pro 39 Mechanics Truck Packages*

Managing a fleet? Need a Work Ready Truck immediately? We’ve got a truck and crane package for you! Engineered to handle the most demanding mobile service applications, our PAL Pro 39 Mechanics Trucks make a powerful addition to your fleet.

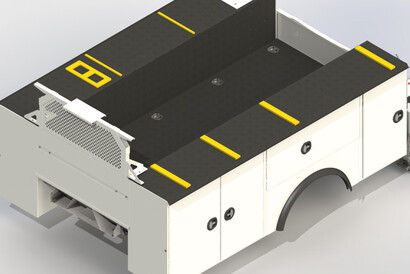

Built For Crane Use

The PAL Pro 39 body is manufactured using 12-gauge A-60 galvanneal steel and features a full length torsion box understructure interlaced with tubular cross members. Combined with integrated outrigger housings, PAL Pro 39 effectively manages crane forces, while preventing flexing and cracking.

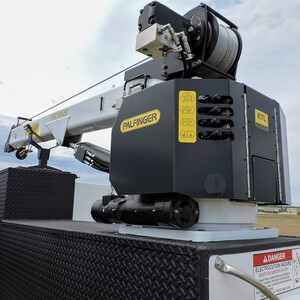

The PAL Pro 39 body features a 39,000 ft. lbs. crane reinforcement designed to accommodate PALFINGER PSC 3216, 4016, 4025, 5025, and 6025 service cranes.

Optimized For Increased Payload

The PAL Pro 39 body has been designed to be the lightest steel crane body in the industry without sacrificing durability. The body can be mounted on a dual wheel chassis with a GVWR as low as 14,001 lbs., providing excellent flexibility for a wide range of applications.



Threaded Weldment Options

Boom rest, welder, compressor, EnPak, Air-n-Arc and AirPak mounts are available from the factory to eliminate the need to drill holes in the body.

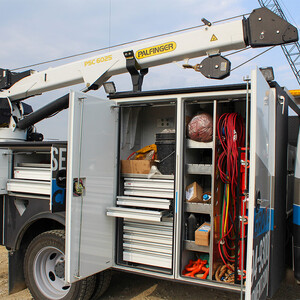

Light-Weight Aluminum Doors & Trays

PAL Pro 39's light-weight aluminum double panel doors provide rigid performance with internal C-channel stiffeners adhered with structural adhesive. Interior compartments feature aluminum hinges and divider trays that are light weight and corrosion resistant.



Line-X Ultra Interior Compartment Coating

PAL Pro 39's compartment interiors are coated with LINE-X Ultra to resist damage commonly caused by tools, chains, and parts. LINE-X Ultra provides an additional layer of rust protection and as an added bonus, the coating is white in color and helps to brighten up the interior.

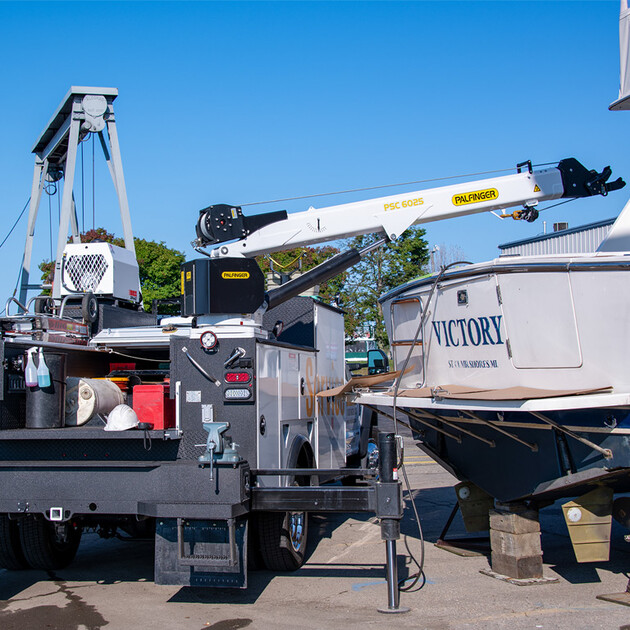

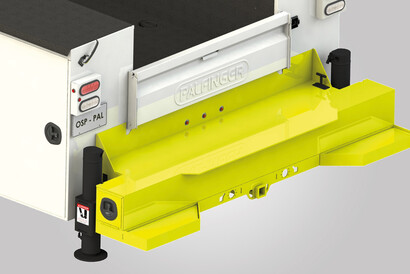

A True Mechanics Work Bench

PAL Pro 39 features 12” or 21” deep work bench bumper designed to provide technicians with a useable work surface for field repairs, welding, and more. The top plate is 1/4" steel and the 21" bumper adds a thru-compartment for internal storage of long tools and chains.



Integrated Hitch Receivers

All PAL Pro 39 bumpers come standard with a 2" receiver tube hitch rated to 16,000 lbs. towing capacity.
