Knuckle Boom

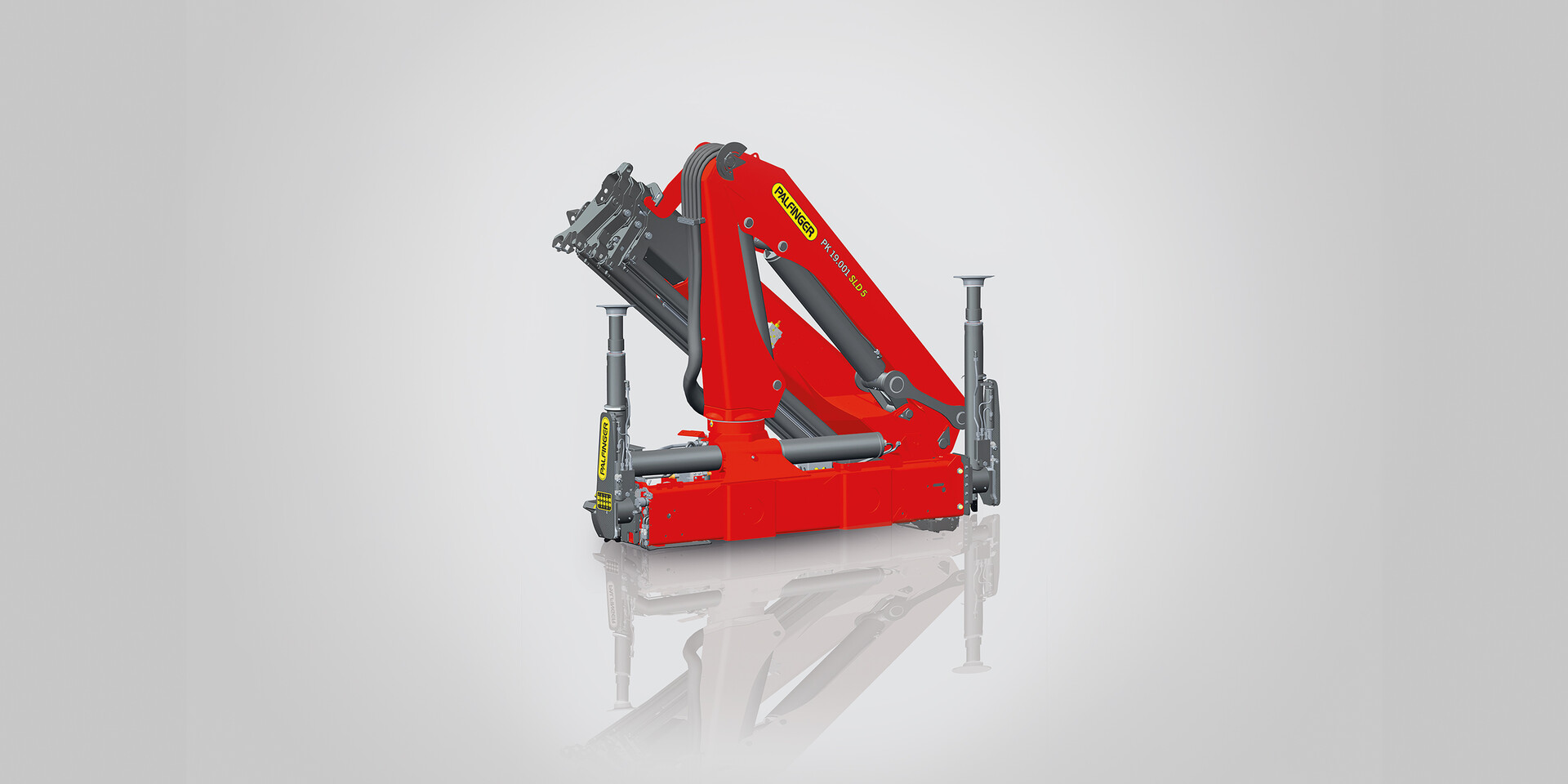

PK 19.001 SLD 5
PK 19.001 SLD 5
Knuckle Boom Crane
| Max. lifting moment | 133780.0 ft lbs |
| Max. lifting capacity | 13700 lb |
| Max. hydraulic outreach | 48' 7'' |
| Max. manual outreach | 62' 4" |
| Slewing angle | 420° |
| Slewing torque | 14460.0 ft lbs |
| Stabilizer spread (std) | 16' 5'' |
| Fitting space required (std) | 2' 8'' |
| Width folded | 8' 4'' |
| Max. operating pressure | 5220 psi |
| Pump capacity | 15.9 - 21.1 gpm |
| Dead weight (std) | 3750 lbs |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| Max. lifting moment | 18.5 mt |
| Max. lifting capacity | 6200 kg |
| Max. hydraulic outreach | 14.8 m |
| Max. manual outreach | 19.0 m |
| Slewing angle | 420° |
| Slewing torque | 2.0 mt |
| Stabilizer spread (std) | 5.0 m |
| Fitting space required (std) | 0.83 m |
| Width folded | 2.55 m |
| Max. operating pressure | 360 bar |
| Pump capacity | 60 - 80 l/min |
| Dead weight (std) | 1700 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (ft_lbs) |
Outreach |
Slewing angle (°) |
Slewing torque (ft_lbs) |
Pressure (psi) |
Pump capacity (gpm) |
Crane Weight (lbs) |
Crane Height (inch) |
Crane Width (inch) |
Installation Width (inch) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 133848.0 | - | 420 | 14460 | 5220.0 | 15.9 - 21.1 | 3750 | 88.58 | 100.39 | 32.48 |
| A | 130954.0 | 41' | 420 | 14460 | 5220.0 | 15.9 - 21.1 | 4090 | 88.58 | 100.39 | 32.48 |
| B | 128060.0 | 49' | 420 | 14460 | 5220.0 | 15.9 - 21.1 | 4390 | 88.58 | 100.39 | 32.48 |
| C | 125166.0 | 56' | 420 | 14460 | 5220.0 | 15.9 - 21.1 | 4575 | 88.58 | 100.39 | 35.24 |
| D | 122995.0 | 62' | 420 | 14460 | 5220.0 | 15.9 - 21.1 | 4860 | 88.58 | 100.39 | 35.24 |
|
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 18.5 | 6.1 | 420 | 2.0 | 36.0 | 60-80 | 1700 | 2250 | 2550 | 825 |
| A | 18.1 | 8.2 | 420 | 2.0 | 36.0 | 60-80 | 1855 | 2250 | 2550 | 825 |
| B | 17.7 | 10.4 | 420 | 2.0 | 36.0 | 60-80 | 1990 | 2250 | 2550 | 825 |
| C | 17.3 | 12.6 | 420 | 2.0 | 36.0 | 60-80 | 2105 | 2250 | 2550 | 895 |
| D | 17.0 | 14.8 | 420 | 2.0 | 36.0 | 60-80 | 2205 | 2250 | 2550 | 895 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
