Hookloader

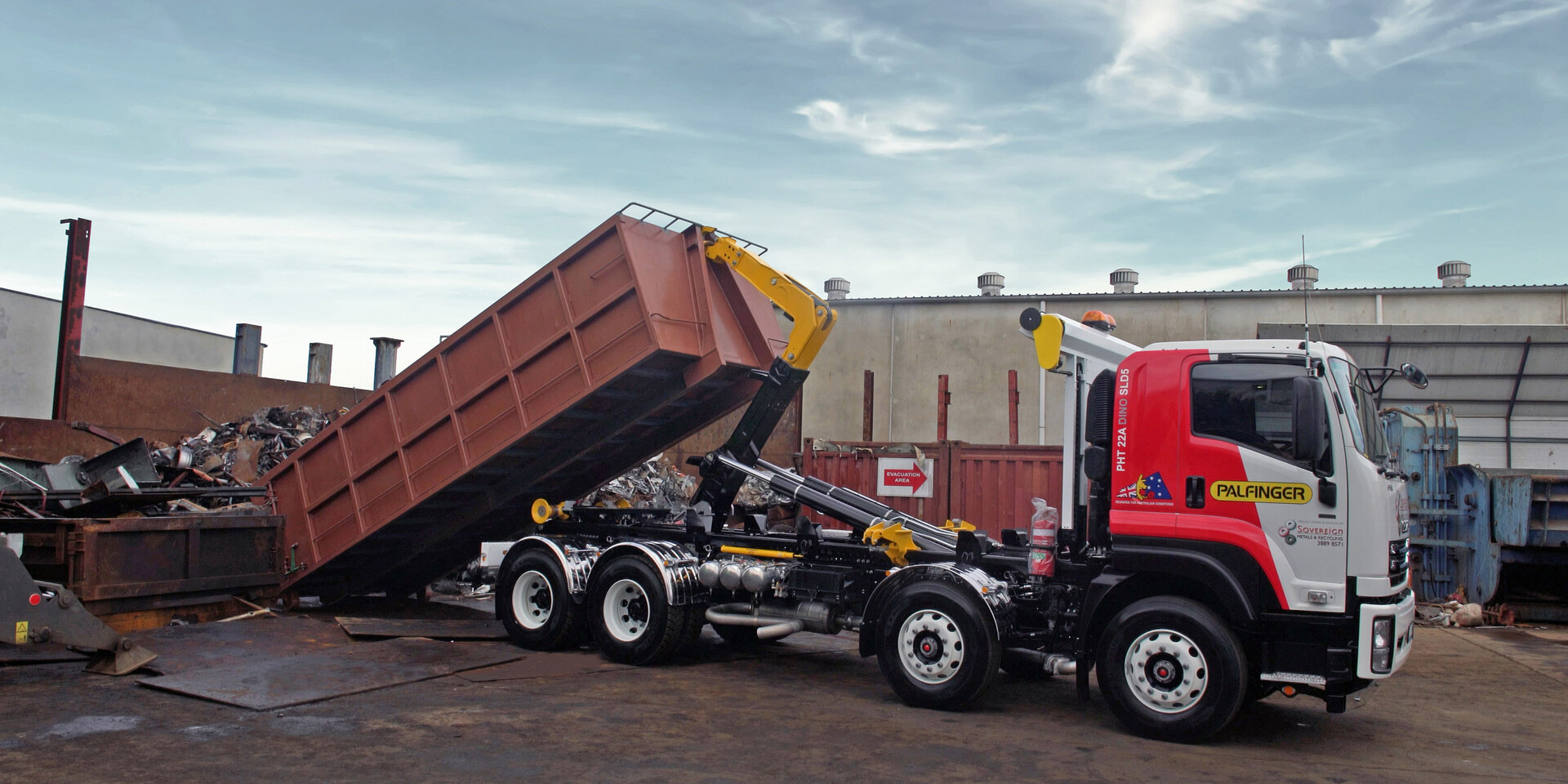

PH T 22 A DINO
TELESCOPIC
Hooklift
The 2 ranges SLD5 and TEC5 of the new PHT 22 A DINO is developped to handle the different Australian bin standards by offering a large acceptance range of bin cadle widths and hook-bar heights.
The design is done with a focus on safety, flexibility and user friendliness, such as automatic cycle, bolted front hydraulic locking which covers all differents rail widths.
UNIVERSAL
| PH T 22A DINO SLD5 | PH T 22A DINO TEC5 | |
|---|---|---|
| Capacity | 22 000 kg | 22 000 kg |
| Length (mm) | 5975-6175-6325-6725 | 5975-6175-6325-6725 |
| Weight | 2750-2800 kg | 2750-2800 kg |
| Control system | PAD | PAD TOUCH |
| Radio remote control | Option | Option |
| Rear locking | 2 independent locking | 2 independent locking |
| Rail-width (outer - inner) | 1200-660 | 1200-660 |
| Hook type | DINO hook (offset 120) or | DINO hook (offset 120) or |
| UNI (offset 130) | UNI (offset 130) | |
| Hookbar height range | - DINO hook 1410-1610 | - DINO hook 1410-1610 |
| - UNI hook (1340) -1410-1450-1570-1610 | - UNI hook (1340) - 1410-1450-1570-1610 |
| TEC 5 | SLD 5 |
| Standard features | Standard features |
| Articulated arm with pneumatic safety latch | Articulated arm with pneumatic safety latch |
| Mechnical adjustable hookheight | Mechnical adjustable hookheight |
| Rear hydraulic locking | Rear hydraulic locking |
| Bolted bin rests | Bolted bin rests |
| PAD TOUCH control | PAD control |
| Optional features | Optional features |
| Front hydraulic locking | Front hydraulic locking |
| Radio Remote Control | Radio Remote Control |
| Rapid motion & fast tipping down | Rapid motion |
| Hydraulic tipping cylinder safety | Hydraulic tipping cylinder safety |
| Automatic cycle | Automatic cycle |
| Vision Package | |
| Additionnal camera |
