|Platform type||Platform width||platform height||Dead Weight||Dead Weight|
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
|a (mm)||Q (kg)|
Webtool for automatic feasibility study for C- Type Lifts
Here you can create your feasibility study drawing online. For an extensive range of vehicles, quickly and without obligation

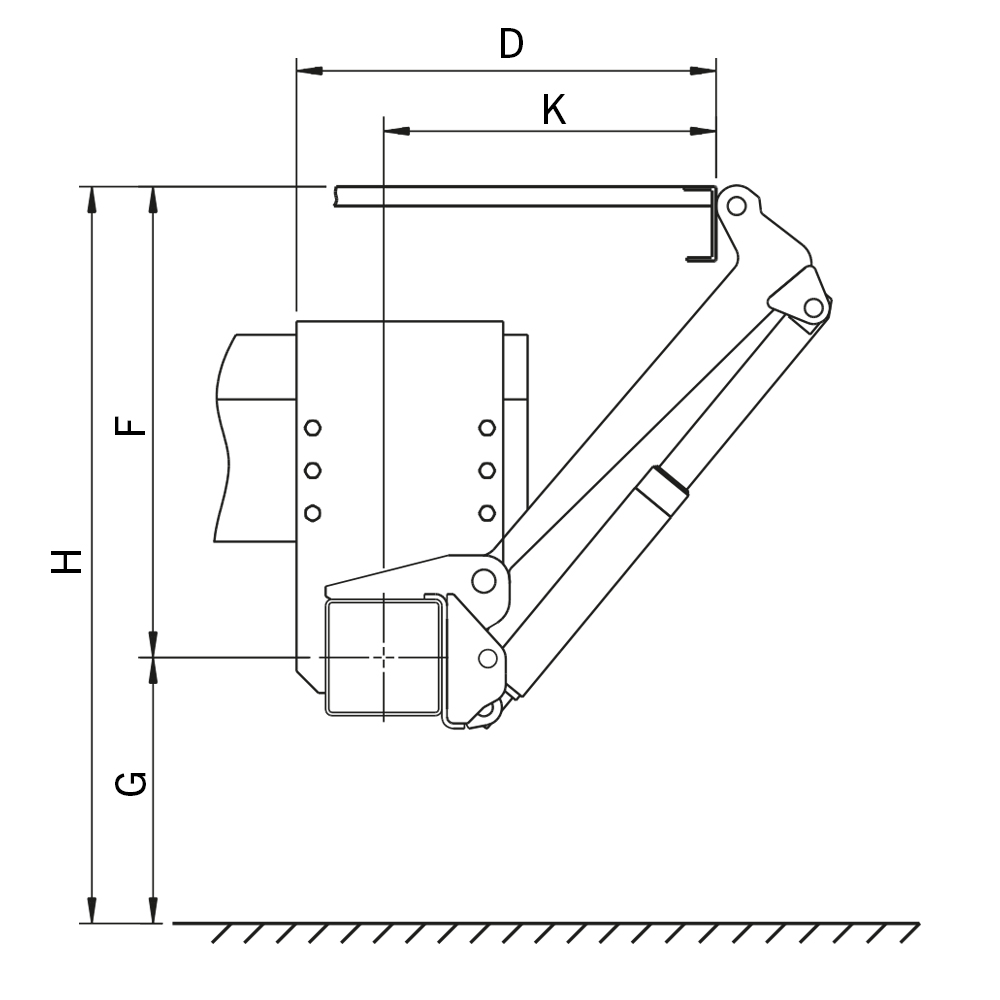

|Lift arms (in mm)||850|
|H (max.) Loading height unloaded||1480|
|H (min.) Loading height loaded||1090|
|F (max.) Middle of main beam to upper edge of loading floor||940|
|K (min.) at dimension F (max.)||501|
|D (min.) Installation space (min.)||692|
|D (max.) Installation space (max.)||964|
|K (max.) at dimension F (min.)||730|
|G (max.) Unloaded (middle of main beam to ground)||540|
|G (min.) loaded||385|
