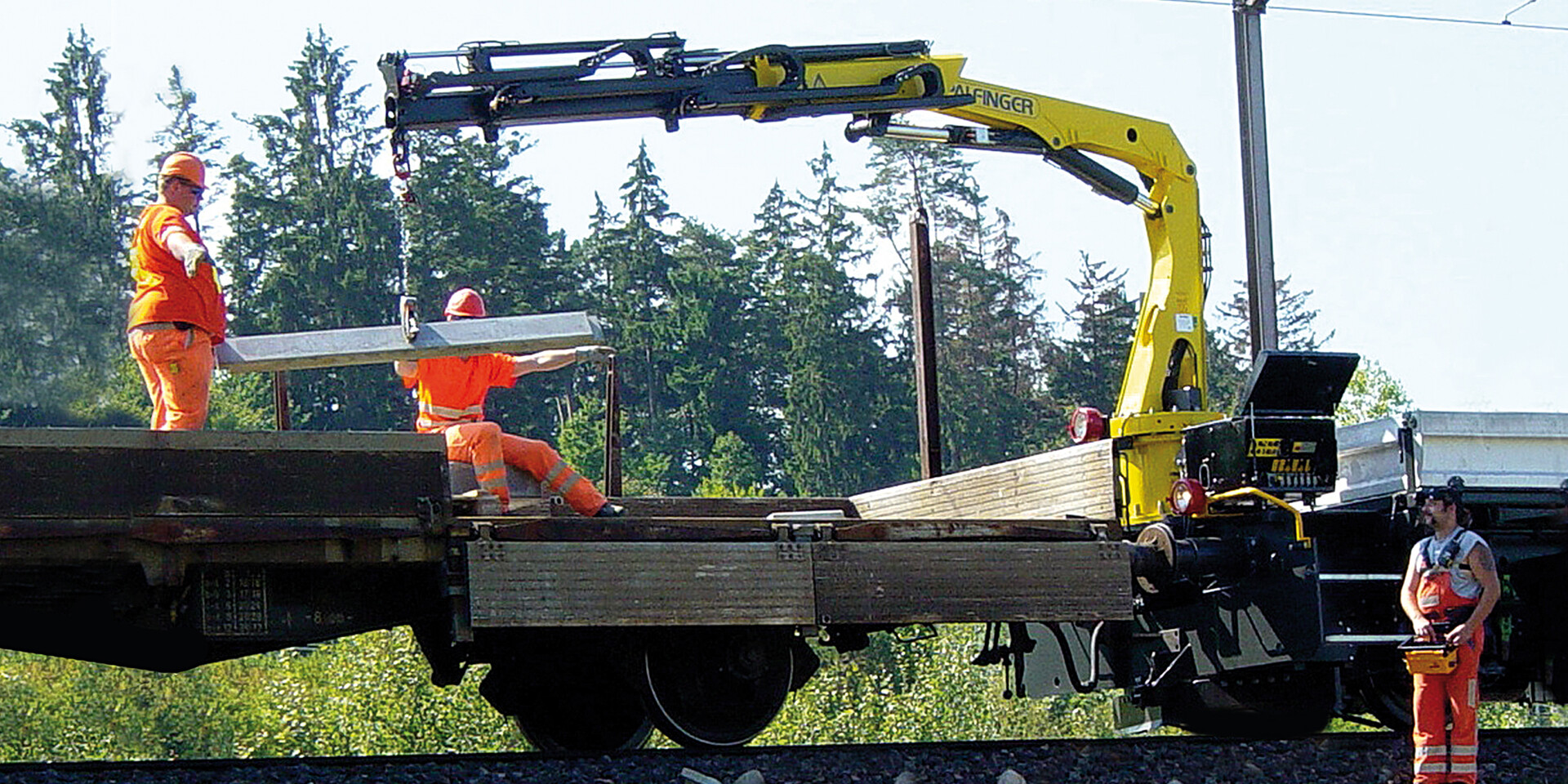

PK 10501

A counterweight on the crane column increases lifting capacity for lightweight vehicles. For work without support legs, it is the perfect addition for heavy lifting operations.

The strengths of PALFINGER railway cranes come to the fore in operations at high track cants. State-of-the-art sensors incorporate the inclination in real time into the stability calculation. This allows the crane's lifting capacity to be continuously adjusted from 0° to 15°, eliminating the need for reducing I in general.

With the earthing of all components through highly flexible grounding cables, PALFINGER provides perfect protection against electric shocks. All components - from the base to the crane tip - are connected by 2x50mm² strong grounding cables. Transparent insulation material facilitates the inspection of grounding cables for breaks or damage caused by derived current (carbonization). Devices with a work basket are also equipped with grounding cables.

The parametric Lateral Movement Limiter of the Railway Premium Line allows maximum freedom of movement with the highest level of safety. The limit-curve is calculated based on the specific clearance profile and corresponding safety measures according to EN14033. State-of-the-art sensors combined with Paltronic ensure a PLd standard. With an extension, up to four different limit-curves can be stored in Paltronic.

The parametric Vertical Movement Limiter of the Railway Premium Line allows maximum range of motion with the highest level of safety. The limit-curve according to EN14033 is calculated based on specific track parameters and safety measures. To prevent safety-compromising movements, Paltronic dynamically detects the crane's position in real time using state-of-the-art sensors. With an extension, up to three height limit-curves can be stored in Paltronic.

The Paltronic crane control system, combined with the connected sensor system, achieves Performance Level PLd and meets the high safety standards of railway norms.
