Special

PK 12001 L Performance

Loader Crane

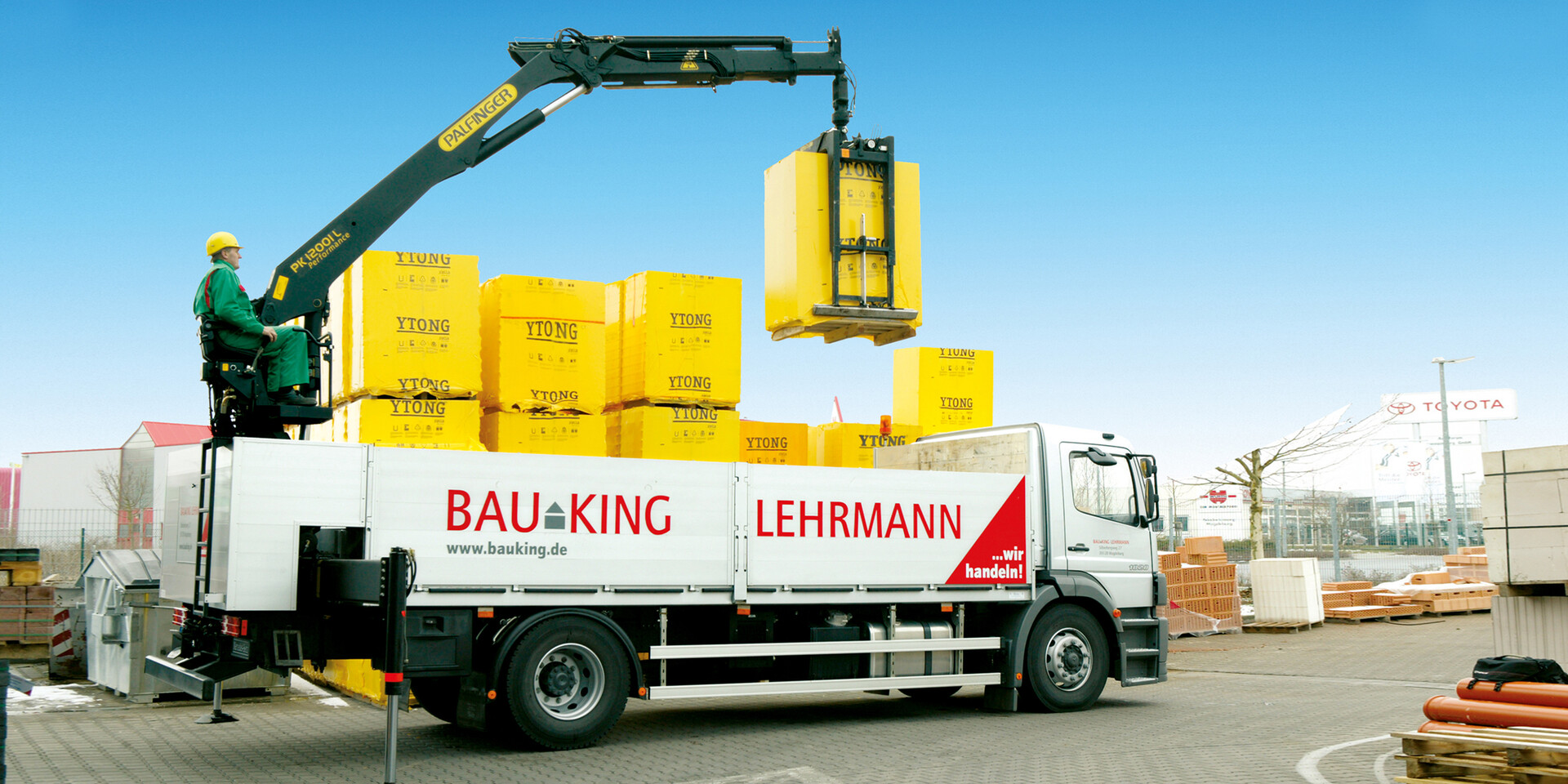

The speedy and safe handling of building materials becomes an easy task with the PK 12001 L Performance. In addition to ist enormous lifting capacity and low dead weight, the safety factor is among the strengths of the PK 12001 L Performance. The Crane is easy to control from the specially designed high-seat, and a perfect overview is also ensured as the work is being carried out.

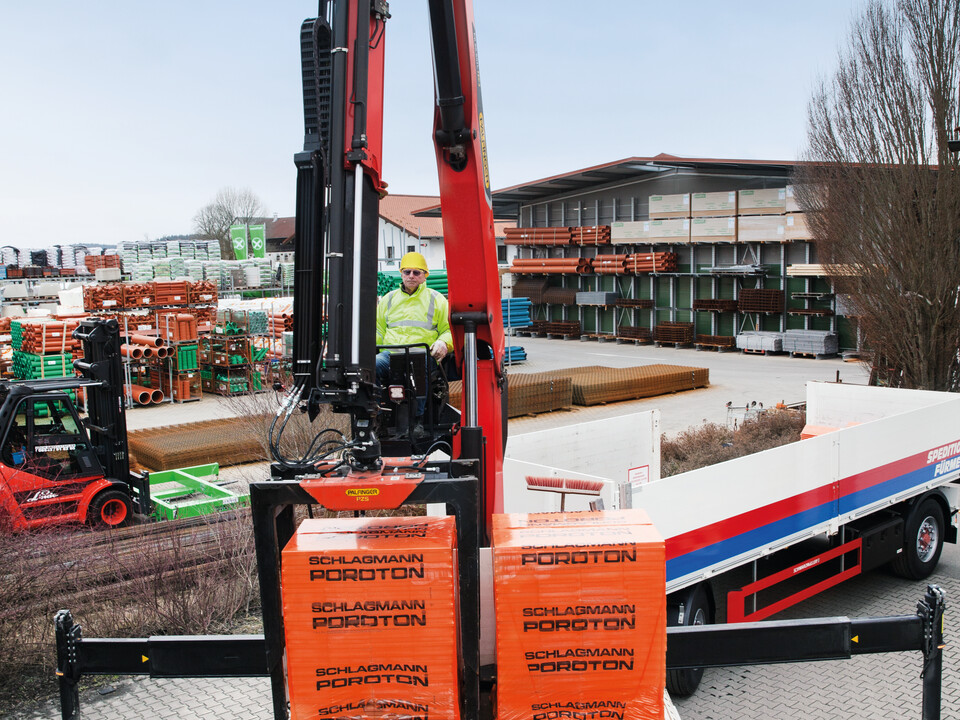

Loading height in close range

Thanks to the very good loading height in close range, the crane can move pallets over the entire loading area.

Details

High Speed Extension

The High Speed Extension is a standard feature on PALFINGER loader cranes. Also referred to as Return Oil Utilization, this feature is a regenerative hydraulic circuit for the extension booms. It speeds up the boom extend and retract functions by up to 30%.

Slewing angle

The slewing angle of 440 degrees enables the maximum radius of action.

Downloads

Brochures

PK 12001 L / PK 15001 L

1,17 MB Download

CRANE TOOLS

26,88 MB Download
