Knuckle Boom

PK 48.002 TEC 7

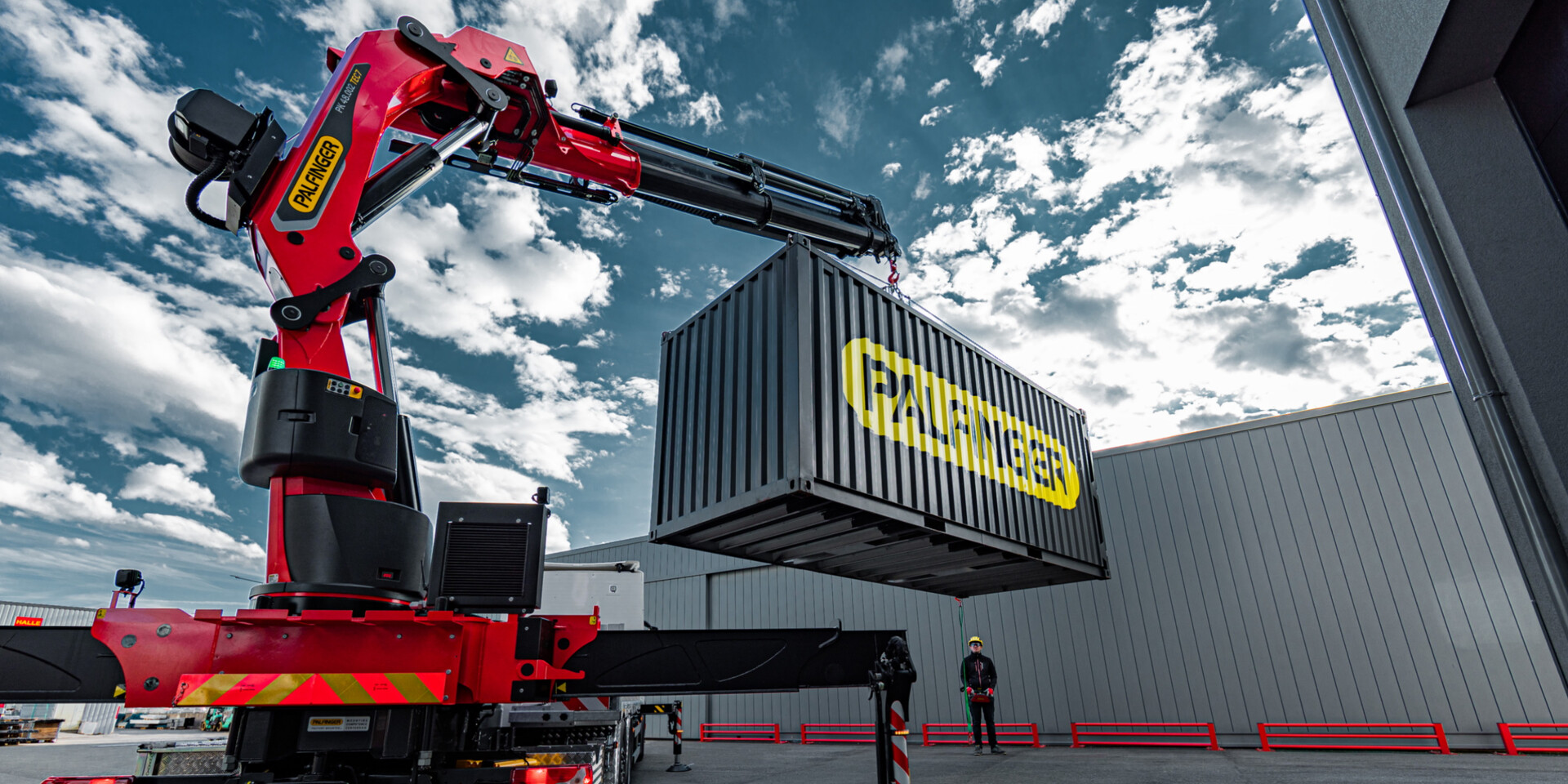

Knuckle Boom Crane

PK 48.002 TEC 7
  • Very stiff and light boom system thanks to P-Profile
  • More efficient and faster due to continuous slewing system
  • High user friendliness due to in-house developed radio remote control PALcom P7
  • More efficiency with fly-jib due to DPS-C
  • Maximum utilisation of the working range thanks to extended HPSC
  • More lifting power due to S-HPLS
  • Practical and attractive due to Functional Design
PALFINGER P-Profile Boom
PALFINGER TEC Series Cranes

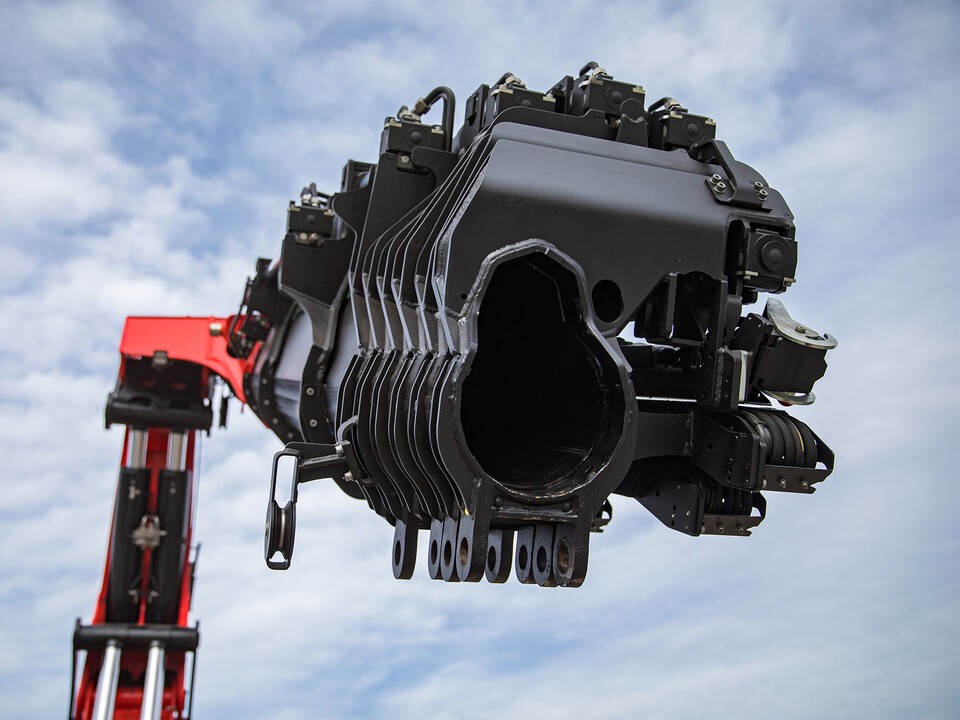

P-Profile Boom

PALFINGER TEC series cranes feature an industry first, patented tear-drop P-Profile boom that provides increased torsional strength along the entire boom system, including the fly-jib, and is extremely lightweight. The P-Profile benefits operators with less deadweight and more load stability in the boom system.

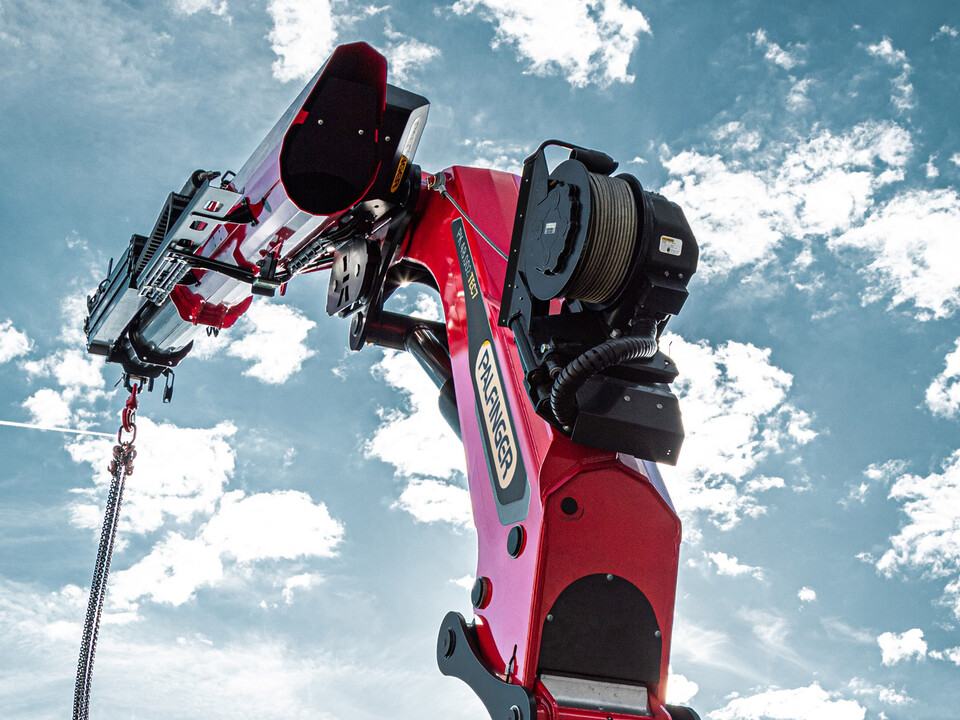

Low Maintenance Extension System

With the low maintenance extension system, PALFINGER leads the way in service-friendliness. The use of sliding elements made from special synthetic material, together with the highly dependable KTL cataphoretic dip painting, means that the operator no longer needs to grease the boom system.

P-Fold

P-Fold is a PALFINGER assistance system. It makes folding and unfolding an easy job for the operator. The P-Fold system also works in combination with the innovative RTC (Rope Tension Control). Both systems perfectly support the crane’s set-up processes and thus reduce set-up times to a minimum.

Details

Continuous Slewing System

The PALFINGER Continuous Slewing Mechanism permits an unrestricted radius of action. The crane is rotated or 'slewed' using a gear box and hydraulic motor instead of a rack and pinion system. All endless slewing mechanisms come as standard with a high quality roller ball bearing.

Details

Soft Stop

The Soft Stop function is an electronic limit position damper. It causes gentle braking of all crane movements before the limit position is reached. Hence, jerky movements and load impacts can be avoided. The crane can be operated more gently and precisely.

Details
Downloads

Brochures

1,18 MB Download
