AERIAL LIFT TRUCKS

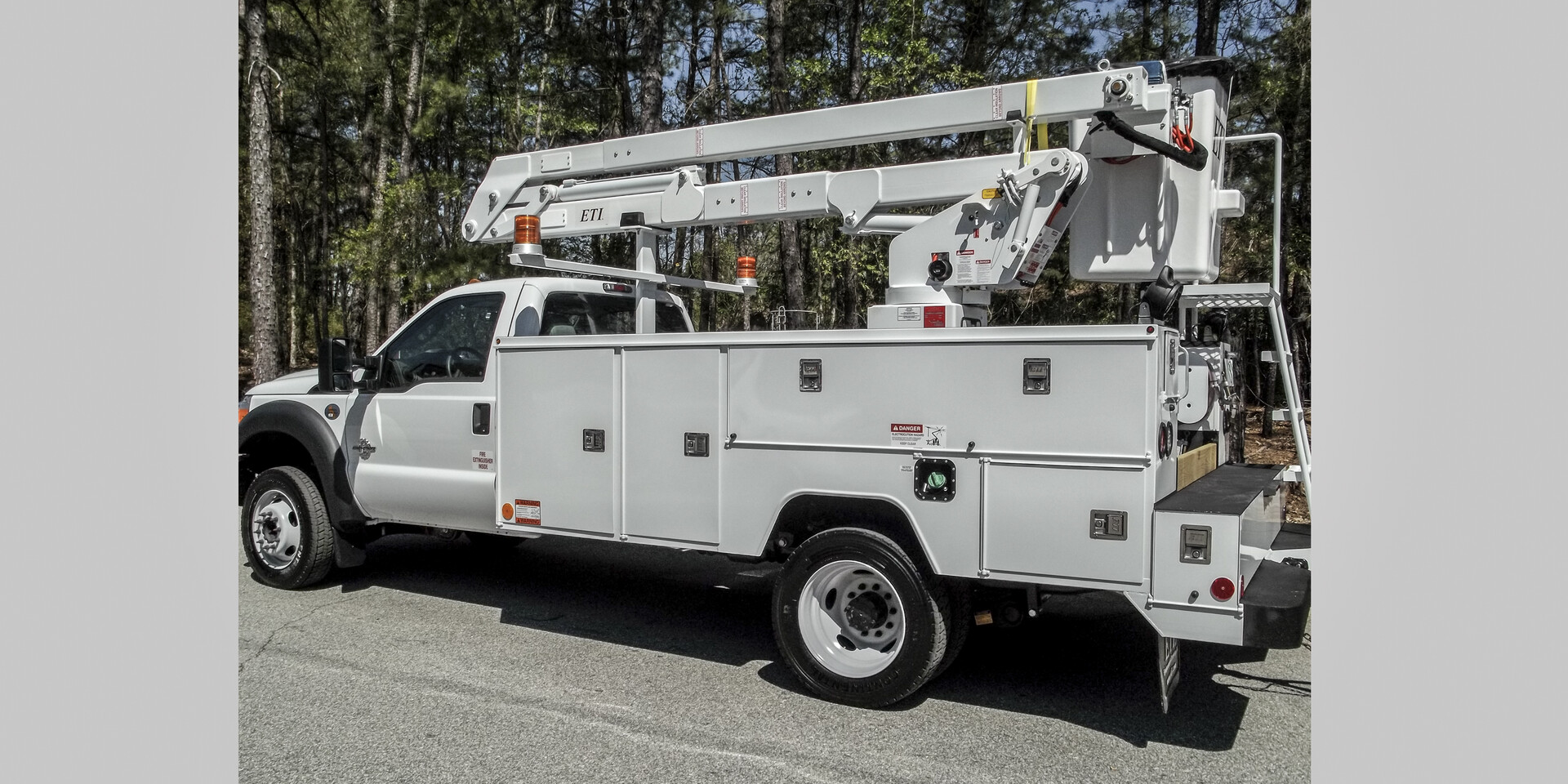

As part of the insulated product line, this versatile ETO model comes with working heights from 35' to 42' in an articulating, over center aerial.
The ETO 30/33/37 offers continuous rotation, full pressure hydraulic controls and a positive chain and rod leveling system as standard on its units.
A welcome safety feature is also standard and includes internally mounted holding valves that lock cylinders in place in the event of a hydraulic failure.
This model unit comes with a multitude of optional features including emergency hydraulic power, bucket tilt/rescue, a hydraulic tool circuit and more offering you a host of solutions to meet your needs.
| Height to bottom of bucket | Working height | Side reach | Rated bucket capacity | Operating pressure | Operating volume | GVWR (dual rear wheels) | GAWR (front) | GAWR (rear) | C.A. | |
|---|---|---|---|---|---|---|---|---|---|---|
| ETO 30 | 30' 0" | 35' 0" | 22' 6" | 350 | 2250 | 4 | 11000 | 4000 | 8250 | 60 |
| ETO 33 | 33' - 0" | 38' - 0" | 25' - 6" | 350 | 2250 | 4 | 15000 | 5000 | 11000 | 60 |
| ETO 37 | 37' - 0" | 42' - 0" | 29' - 6" | 350 | 2250 | 4 | 15000 | 5000 | 11000 | 60 |
| Height to bottom of bucket | Working height | Side reach | Rated bucket capacity | Operating pressure | Operating volume | GVWR (dual rear wheels) | GAWR (front) | GAWR (rear) | C.A. | |
|---|---|---|---|---|---|---|---|---|---|---|
| ETO 30 | 9.14 m | 10.67 m | 6.86 m | 158.8 | 155.13 | 15 | 4990 | 1814 | 3742 | 152.4 |
| ETO 33 | 10.06 m | 11.58 m | 7.77 m | 158.8 | 155.13 | 15 | 6804 | 2268 | 4990 | 152.4 |
| ETO 37 | 11.28 m | 12.80 m | 8.99 m | 158.8 | 155.13 | 15 | 6804 | 2268 | 4990 | 152.4 |
- Continuous rotation is standard on all ETO units.
- Full pressure hydraulic controls located at basket and turret with full feathering capabilities from both upper and lower controls
- Positive chain and rod leveling based on parallelogram system ensuring long life and minimum leveling system maintenance.
- Shear ball rotation with an extended shaft for manual rotation.
- Internally mounted holding valves (integral part of cylinder) lock cylinders in place in the event of hydraulic failure.
- All pins turn on replaceable bushings
- Emergency hydraulic power (12 volt DC)
- Engine start/stop system
- Hydraulic tool circuit
- Two speed throttle
- Bucket tilt/rescue
- Single handle control
- 69 KV rating - Category B
- Bucket liner
- Bucket cover
- Lower boom insert (ETO 33/37 only)
- Airline to bucket
- Oversize bucket (24”x30”x42”)
