Stiff Boom Crane
SPS 16000
SPS 16000

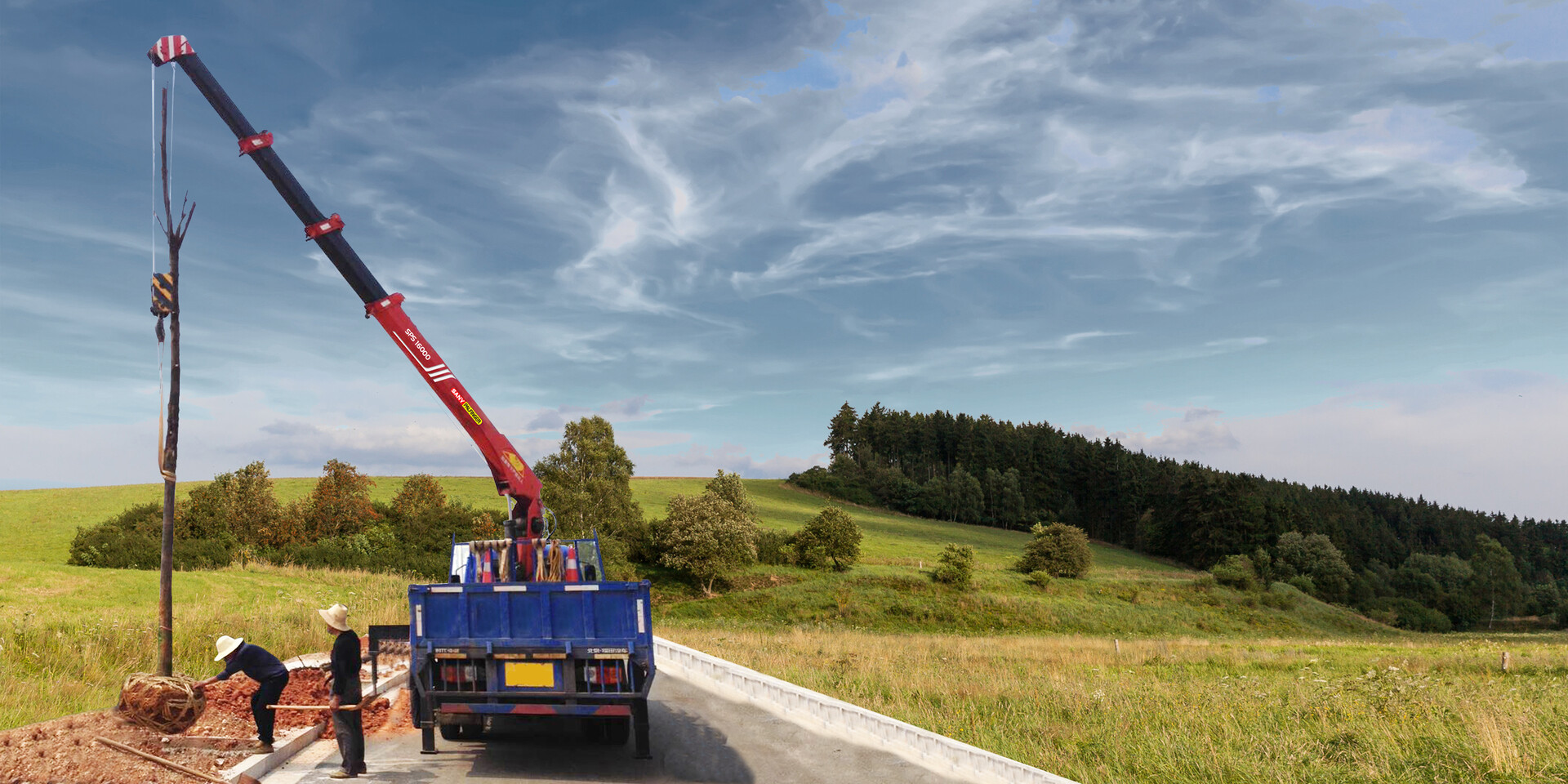

SANY PALFINGER Stiff Boom Crane
Equipped with high tensile strength extension booms, our cranes are optimized for greater lifting height and working range. Products are manufactured according to European Standards to ensure reliability, performance, and safety.
| Basic Data | SPS 16000A | SPS 16000B |
|---|---|---|
| Rated Lifting Moment | 16 mt | 16 mt |
| Rated Lifting Capacity | 7000 kg (2.5 m) | 7000 kg (2.5m) |
| Max. outreach | 9.5 m | 12.3 m |
| Max. lines of the hook | 4 | 4 |
| Slewing angle | Continuous | Continuous |
| Boom raising angle | 0 ~ 75° | 0 ~ 75 ° |
| Max. lifting height (the measurement from the ground after the outriggers fully extended) | 11.8 m | 14.6 m |
| Length of the boom system (retracted) | 4.5 m | 4.7 m |
| Length of the boom system (fully extended) | 9.7 m | 12.5 m |
| Boom sections | 3 | 4 |
| Outrigger span (fully extended) | 5300 (mm) | 5300 (mm) |
| Recommended flow rate | 45 - 65 L/min | 45 - 65 L/min |
| Operating pressure | 26 Mpa | 26 Mpa |
| Recommended oil tank capacity | 100 L | 100 L |
| Crane moment (dynamic) | 243.1 kNm 24.8 mt |
262.1 kNm 26.7 mt |
| Torsional moment (dynamic) | 16.8 kNm 1.7 mt |
16.8 kNm 1.7 mt |
| Crane Weight | 2450 kg (Floor Control) | 2650 kg (Floor Control) |
