Knuckle Boom Crane
SPK 8500

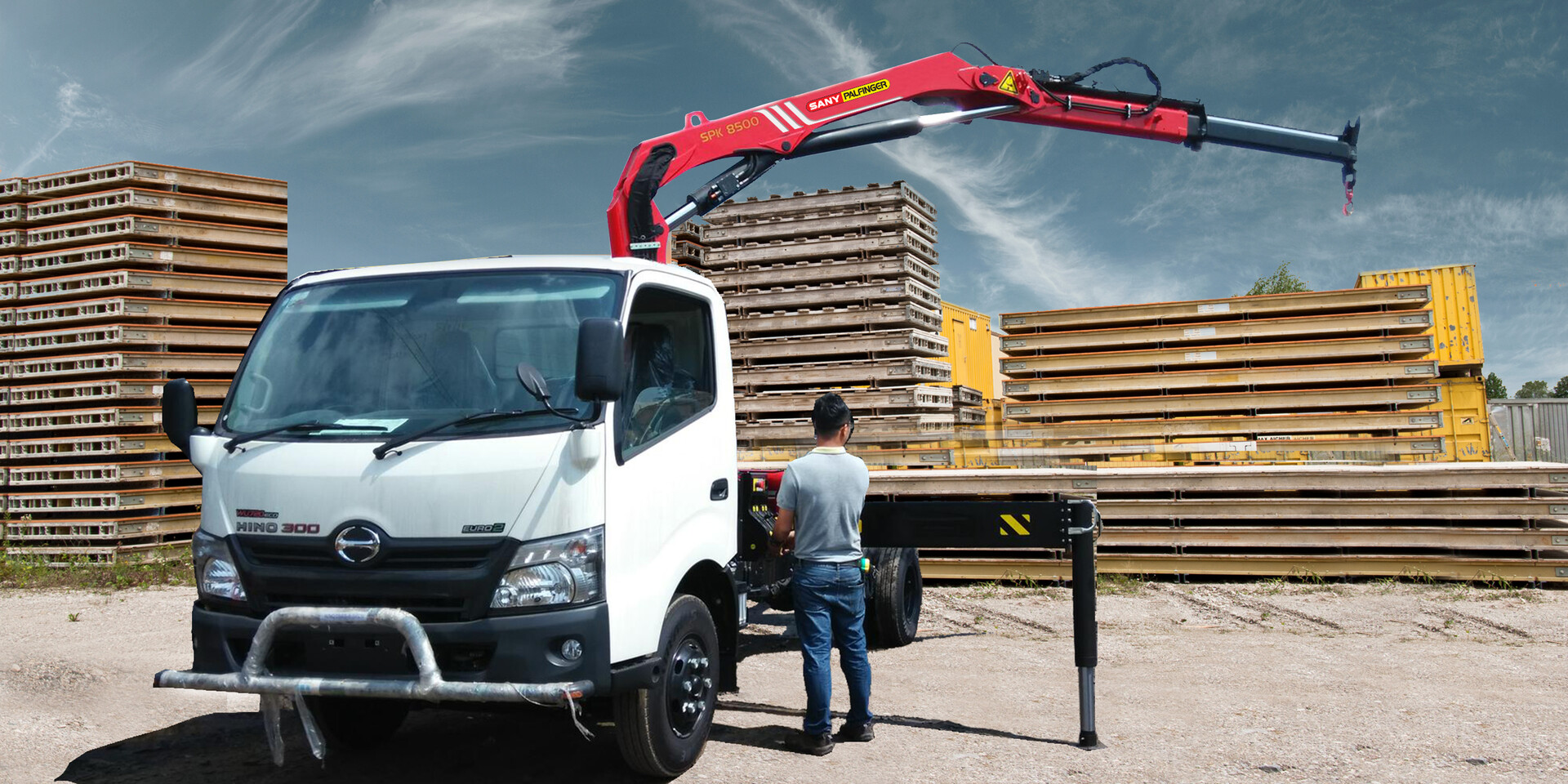

SANY PALFINGER Knuckle Boom Crane
The SPK 8500 is equipped with load holding valves for safe crane operations, high speed boom extension and retraction with Return Oil Utilization, and optimized lifting performance with the use of high tensile steel and hexagonal boom design. It is also lightweight yet robust construction according to European standards (EN 12999).
Max. lifting moment | 7.6 mt |
Max. lifting capacity | 3300 kg |
Max. hydrauic outreach | 5.7 m (Std.) / 7.6m (A) / 9.6 m (B) |
Slewing angle | 400° |
Slewing torque | 0.90 mt |
Stabilizer spread (std.) | 4870 mm (R2 / R2X) |
Fitting space required (std.) | 660 mm |
Width folded | 2295 mm |
Max. operating pressure | 315 bar |
Pump capacity | 25 - 35 l/min |
Dead weight (std.) | 920 kg |
