Knuckle Boom Crane
SPK 36080 MH
SPK 36080 MH

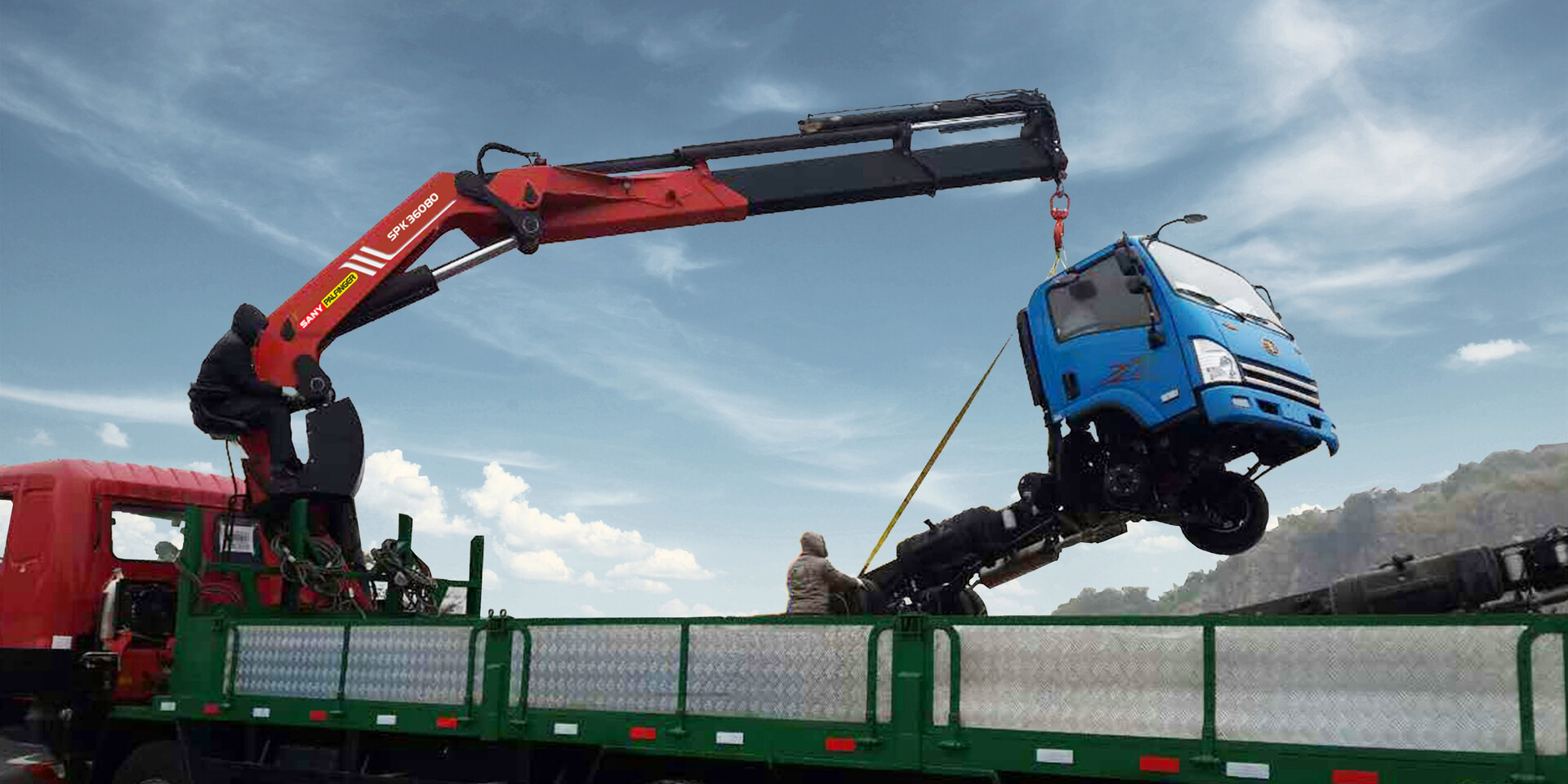

SANY PALFINGER Knuckle Boom Crane
The SPK 36080 MH is equipped with Electronic Overload Protection (Paltronic 50) and Emergency Stop Button and has up to 10% increased lifting capacity with High Power Lifting System (HPLS). It is optimized lifting performance with the use of high tensile steel and hexagonal boom design and lightweight yet robust construction according to European standards (EN 12999)
| Max. lifting moment | 34.8 mt |
| Max. lifting capacity | 8500 kg |
| Max. hydrauic outreach | 8.1 m (A) / 10.1 m (B) / 12.1 m (C) |
| Slewing angle | 400° |
| Slewing torque | 3.80 mt |
| Stabilizer spread (std.) | 6000 mm (R3X) |
| Fitting space required (std.) | 975 mm |
| Width folded | 2500 mm |
| Max. operating pressure | 330 bar |
| Pump capacity | 55 - 80 l/min |
| Dead weight (std.) | 3118 kg |
