Knuckle Boom Crane
SPK 23500
SPK 23500

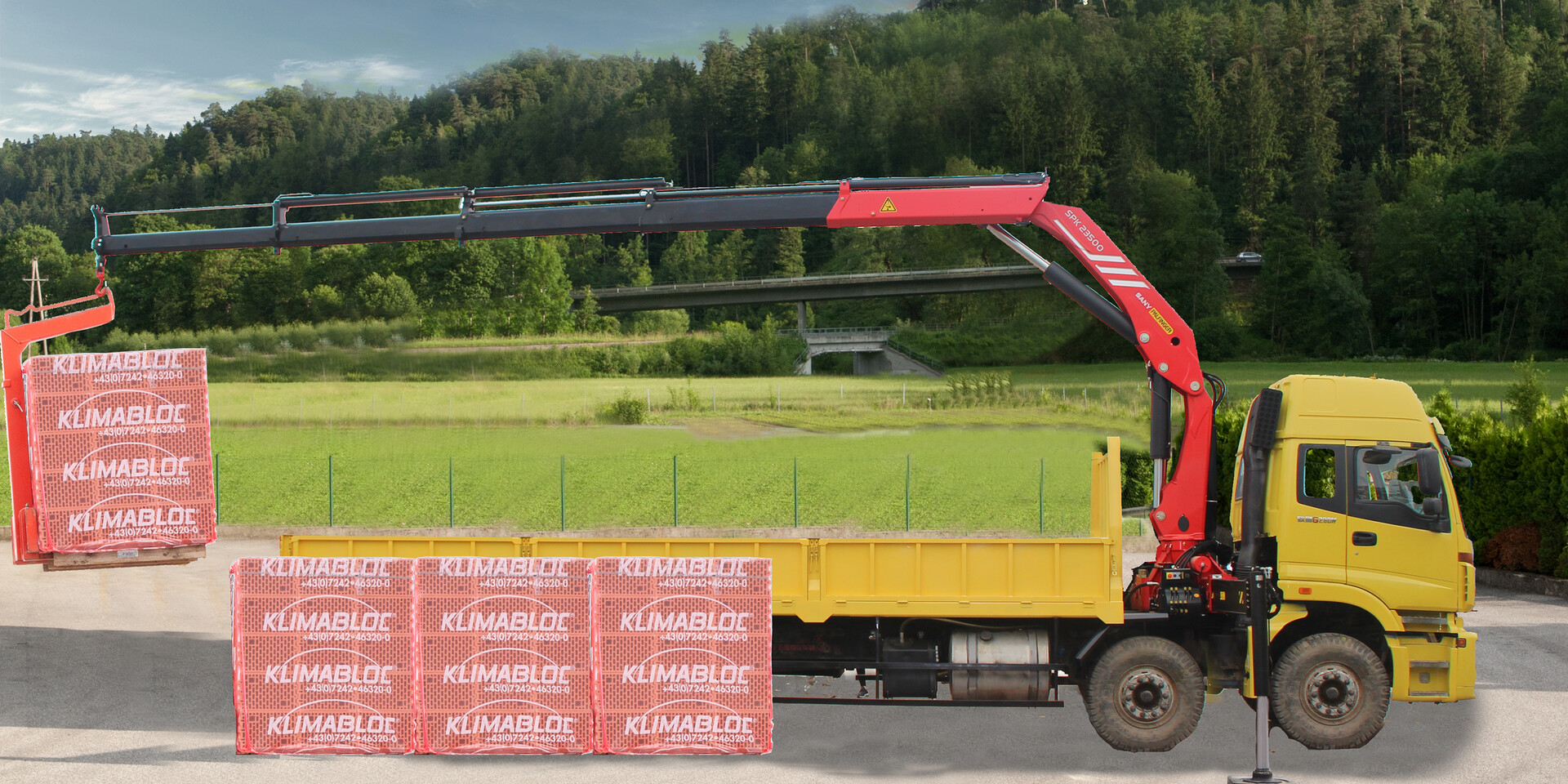

SANY PALFINGER Knuckle Boom Crane
| Max. lifting moment | 23 mt |
| Max. lifting capacity | 10000 kg |
| Max. hydrauic outreach | 8.2 m (A) / 10.3 m (B) / 12.4 m (C) |
| Slewing angle | 400° |
| Slewing torque | 2.80 mt |
| Stabilizer spread (std.) | 5640 mm (R2X) / 6616 mm (R3X) |
| Fitting space required (std.) | 875 mm |
| Width folded | 2500 mm |
| Max. operating pressure | 300 bar |
| Pump capacity | 50 - 75 l/min |
| Dead weight (std.) | 2376 kg |
