Knuckle Boom
PK 17.001 SLD 1
PK 17.001 SLD 1

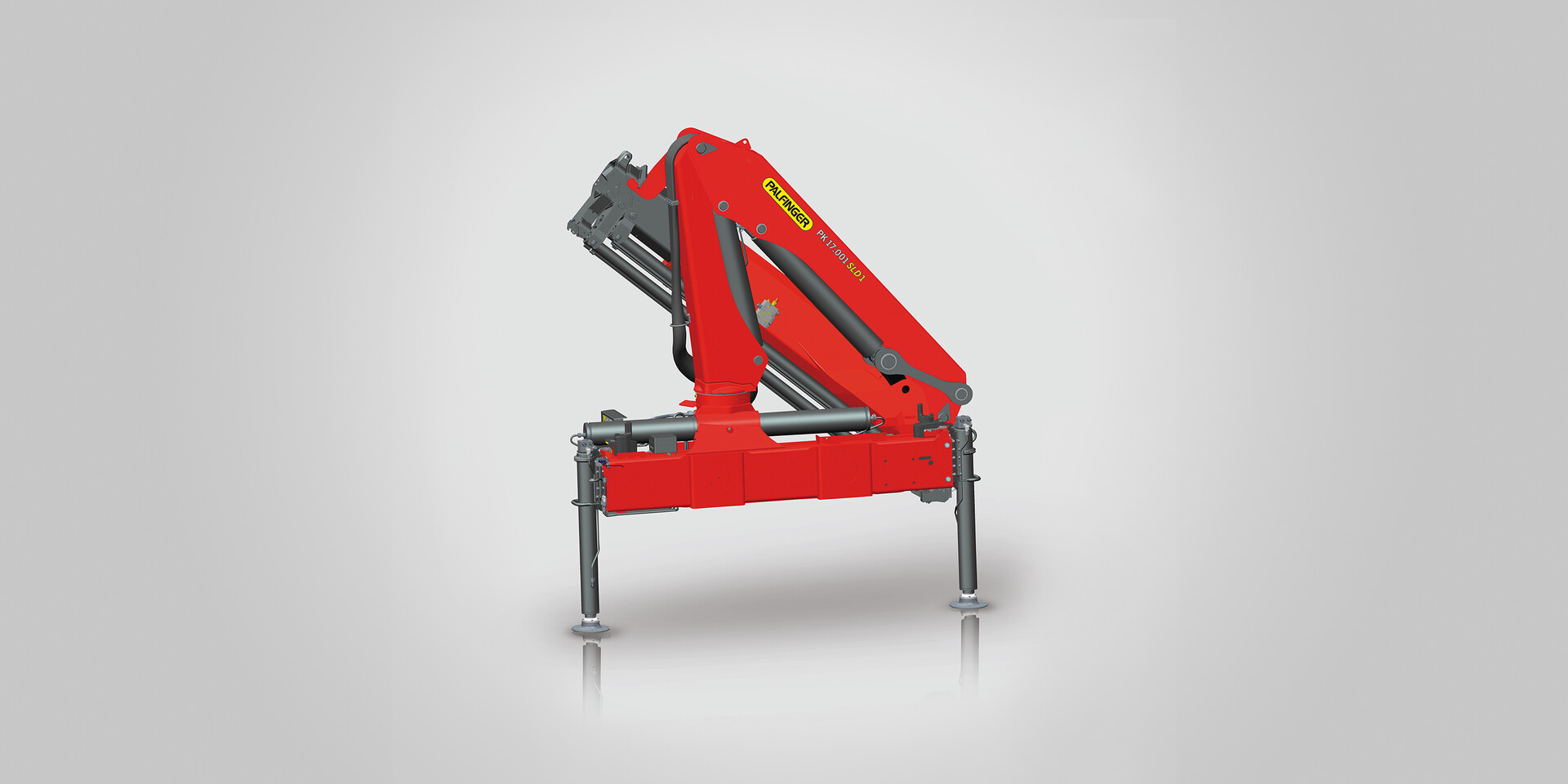

Knuckle Boom Crane
| Max. lifting moment | 121548.0 ft_lbs |
| Max. lifting capacity | 13700 lb |
| Max. hydraulic outreach | 48' 7'' |
| Max. manual outreach | 62' 4" |
| Slewing angle | 420° |
| Slewing torque | 14460.0 ft_lbs |
| Stabilizer spread (std) | 16' 5'' |
| Fitting space required (std) | 2' 8'' |
| Width folded | 8' 4'' |
| Max. operating pressure | 4785 psi |
| Pump capacity | 10.6 - 15.9 gpm |
| Dead weight (std) | 3680 lbs |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| Max. lifting moment | 16.8 mt |
| Max. lifting capacity | 6200 kg |
| Max. hydraulic outreach | 14.8 m |
| Max. manual outreach | 19.0 m |
| Slewing angle | 420° |
| Slewing torque | 2.0 mt |
| Stabilizer spread (std) | 5.0 m |
| Max. operating pressure | 330 bar |
| Pump capacity | 40 - 60 l/min |
| Dead weight (std) | 1670 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (ft_lbs) |
Outreach |
Slewing angle (°) |
Slewing torque (ft_lbs) |
Pressure (psi) |
Pump capacity (gpm) |
Crane Weight (lbs) |
Crane Height (inch) |
Crane Width (inch) |
Installation Width (inch) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 121548.0 | - | 420 | 14460 | 4785.0 | 10.6 - 15.9 | 3680 | 88.58 | 98.43 | 32.48 |
| A | 117931.0 | 41' | 420 | 14460 | 4785.0 | 10.6 - 15.9 | 4025 | 88.58 | 98.43 | 32.48 |
| B | 115037.0 | 49' | 420 | 14460 | 4785.0 | 10.6 - 15.9 | 4320 | 88.58 | 98.43 | 32.48 |
| C | 112866.0 | 56' | 420 | 14460 | 4785.0 | 10.6 - 15.9 | 4575 | 88.58 | 98.43 | 35.24 |
| D | 110696.0 | 62' | 420 | 14460 | 4785.0 | 10.6 - 15.9 | 4795 | 88.58 | 98.43 | 35.24 |
|
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 16.8 | 6.1 | 420 | 2.0 | 33.0 | 40-60 | 1670 | 2250 | 2500 | 825 |
| A | 16.3 | 8.2 | 420 | 2.0 | 33.0 | 40-60 | 1825 | 2250 | 2500 | 825 |
| B | 15.9 | 10.4 | 420 | 2.0 | 33.0 | 40-60 | 1960 | 2250 | 2500 | 825 |
| C | 15.6 | 12.6 | 420 | 2.0 | 33.0 | 40-60 | 2075 | 2250 | 2500 | 895 |
| D | 15.3 | 14.8 | 420 | 2.0 | 33.0 | 40-60 | 2175 | 2250 | 2500 | 895 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
