Multi
HT 400
Tandem Axle
Hooklift
Imperial
Metric
Hook Height
Hook Height
1371.6 mm | 1568.45 mm
54" | 61 ¾"
Container Length
Container Length
4.3 – 7m
14 – 23 ft
Min GVWR
Min GVWR
24494 kg
54,000 lbs.
This model features a telescoping (54 or 61 3/4 inch) jib with dual main cylinders.
40,000 lbs. capacity
| Lift / DumpCapacity (lb.) | CA Range (in.) | Min. GVWR (lb.) | Min RBM (in. lb.) | Hooklift length | Clear Frame Rail (in.) | Body Length Range (ft.) | Optimum Body Lenghts (ft.) | Jib Height (in.) | Jib Action | Max. Dump Angle | Pivot | # of Lift / Dump Cylinders | Operating Pressure (PSI) | Pump Type | Fitting Hoses | Shipping Weight (lb.) | Paint | Construction | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 40000 | 144-150" | 54000 | N/A | 200 | 205 | 14-18' | 16-18' | 54'' & 61.75'' | Telescopic | 50 degrees | Dual | 2/2 | 4500 | Piston - Direct mount | JIC/SAE | 4510 | Finish Coat | A514 (T-1) |
| L | 40000 | 185-195" | 54000 | N/A | 237 | 242 | 16-22' | 20-22' | 54'' & 61.75'' | Telescopic | 48 degrees | Dual | 2/2 | 4500 | Piston - Direct mount | JIC/SAE | 4840 | Finish Coat | A514 (T-1) |
| Lift / DumpCapacity (lb.) | CA Range (in.) | Min. GVWR (lb.) | Min RBM (in. lb.) | Hooklift length | Clear Frame Rail (in.) | Body Length Range (ft.) | Optimum Body Lenghts (ft.) | Jib Height (in.) | Jib Action | Max. Dump Angle | Pivot | # of Lift / Dump Cylinders | Operating Pressure (PSI) | Pump Type | Fitting Hoses | Shipping Weight (lb.) | Paint | Construction | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 18144 | 144-150" | 54000 | N/A | 508 | 521 | 4.27-5.49 m | 4.88-5.49 m | 137.16 cm & 156.8 cm | Telescopic | 50 degrees | Dual | 1/1 | 310 | Piston - Direct mount | JIC/SAE | 2046 | Finish Coat | A514 (T-1) |
| L | 18144 | 185-195" | 54000 | N/A | 602 | 615 | 4.88-6.70 m | 6.10-6.71 m | 137.16 cm & 156.8 cm | Telescopic | 48 degrees | Dual | 2/2 | 310 | Piston - Direct mount | JIC/SAE | 2196 | Finish Coat | A514 (T-1) |
- Dual Pivot Design
- Flexible design with true dumping capabilities
- High Pressure Hydraulics (3,600 psi to 4,500 psi)
- Allows system to take advantage of smaller cylinders, sving you weight and increases your available payload.
- Container Hold Downs
- Inside on T-12, PHT-16, and T-20 models
- Outside on all other models
- Adjustable (forward and back) on PHT-22
- Dual Lift/Dump Cylinders
- Steady and secure handling of bodies during loading, unloading and dumping operations
- Dual Counter Balance Valves
- Safety feature providing power up and power down
- Accessible and serviceable
- Dual Rear Rollers standard on T-40 models and up
- Soft Stop Landing standard on T-29 and up

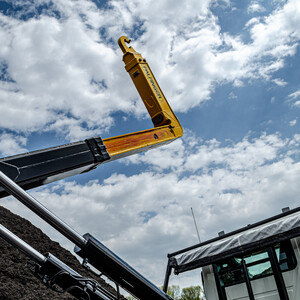

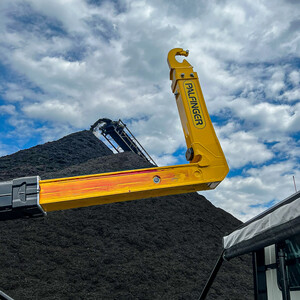

- Telescopic jib
- High strength steel supports
- No wearable/replaceable pads
- Adjustable Height Jib
- Hydraulic optional on T-29S, T29-M - 36" and 54"
- Manual standard on T-40 and up - 54" and 62"
- Inside Controls
- Greasable with bronze bushings at all pviot points
- High strength steel frame - Z rail design
- Safety sensors
- Jib sensor ensures the jib cannot retract while in dump mode (all models)
- Dump latch sensor ensures the latches are fully engated (all models)
- Soft stop sensor ensures gentle landing of body after dumping (T-29 and up)
- 3-Year Limited Warranty
