MBB F 1000 L
|Platform type||Platform width||platform height||Dead Weight||Dead Weight|
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

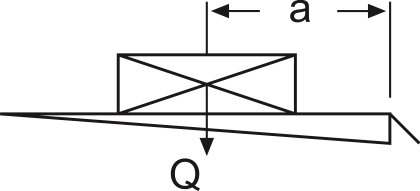

|a (mm)||Q (kg)|

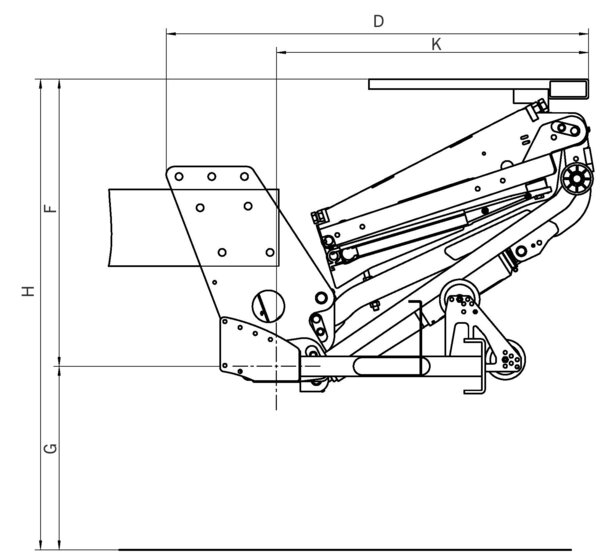

|Lift arms (in mm)||800|
|H (max.) Loading height unloaded||1175|
|H (min.) Loading height loaded||970|
|F (max.) Middle of main beam to upper edge of loading floor||715|
|K (min.) at dimension F (max.)||787|
|D (min.) Installation space (min.)||K+340|
|K (max.) at dimension F (min.)||844|
|G (max.) Unloaded (middle of main beam to ground)||460|
|G (min.) loaded||330|
|E (max.) Vehicle frame width (max.)||864|
|E (min.) Vehicle frame width (min.)||850|
