Retractable

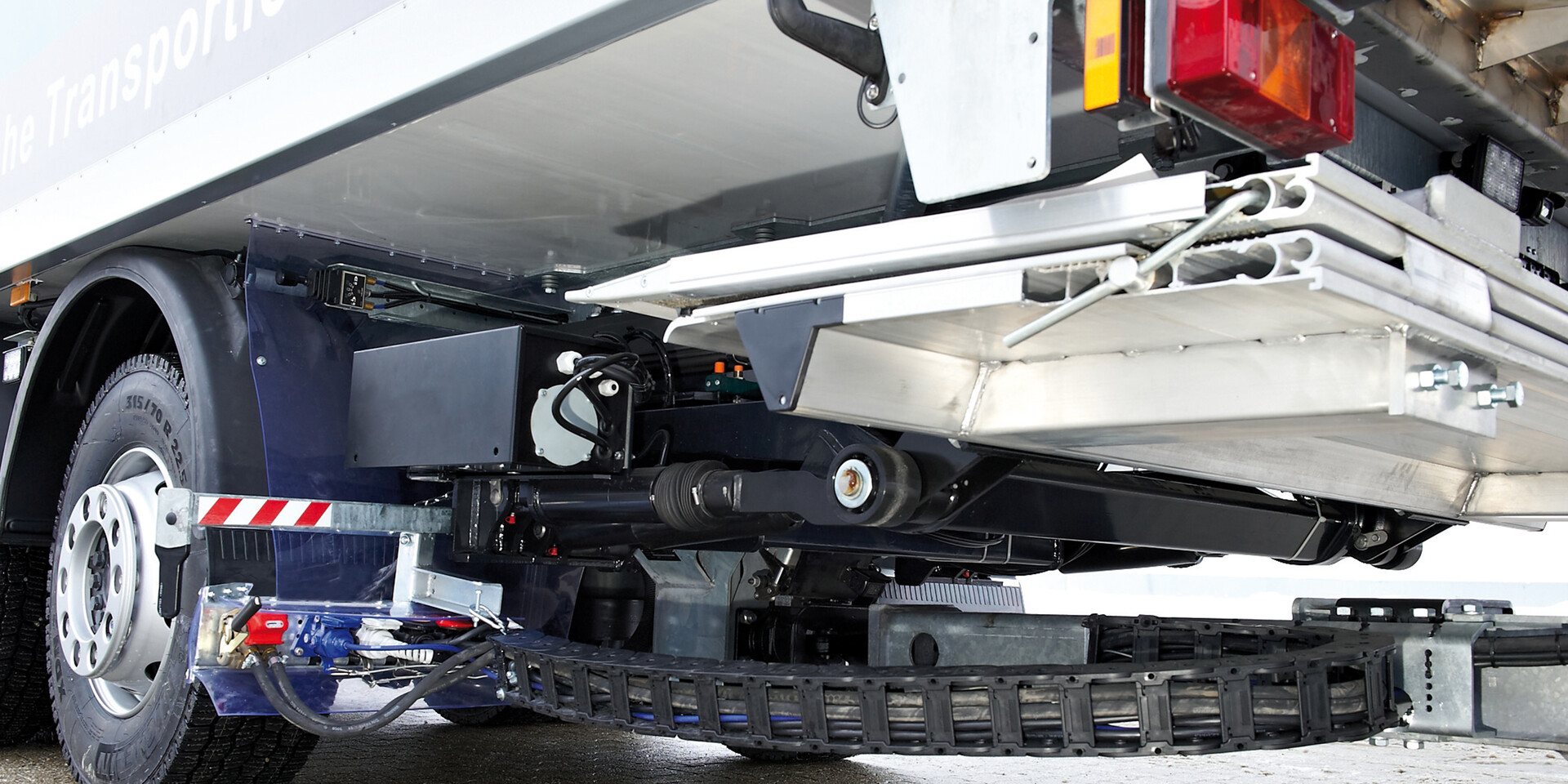

MBB R 1500 SK

Tail Lift

  • Specially designed for motor vehicles with low-mount coupling systems
  • 1,500/2,000 kg lifting capacity with four cylinders and 750/1,000 mm load distance
  • Simple-fold platform
  • Great freedom of motion for drawbar thanks to space-saving main beam
  • Optimal adaptation to motor vehicles thanks to a wide range of different lifting arm lengths and pitches
  • All-aluminium or steel/aluminium platform design
  • Spring-supported folding part ≥ Platform package serves as underride guard
  • Bridging projection for espagnolettes
  • Powerful moving cylinder for horizontal positioning of the tail lift
  • Moving rails in steel as standard, optionally available in aluminium
  • Optionally available completely pre-assembled with energy chain
Downloads

Brochures

Assembly Instructions not pre-assembled

0,21 MB Download

MBB R 1500 SK / MBB R 2000 LK

0,65 MB Download

Datasheet Feasibility Study

0,12 MB Download

Operating Instructions

15,72 MB Download
