The patented PALFINGER ACTIVE OSCILLATION SUPPRESSION (AOS) system dampens the boom system of the crane, compensating for vibration and shock, even after a sudden stop of the lifting function. The result is a significant increase in saftey in crane operation for operator, loads and surrounding areas.

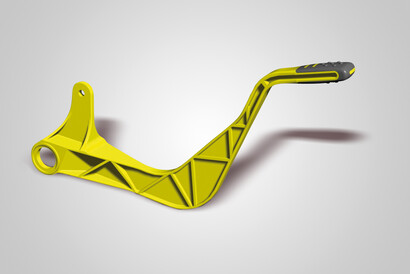

A good design must primarily fulfill its purpose, i.e. it should fulfill the function of the component the best way possible. Moreover, it must be possible to use it easily, ergonomically and economically. PALFINGER knows how to combine the functionality with individuality - through the use of new materials, shapes, colors and detailed solutions.

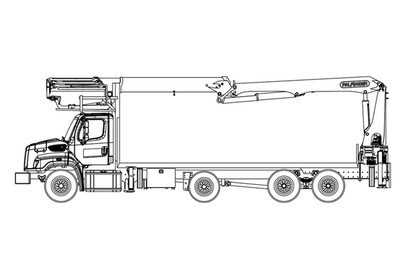

Being a market leader requires understanding our customers' needs and business thoroughly. PALFINGER Project Engineering ensures the optimum truck configuration for the job. The weight distribution, payload capacity, and stability are checked and presented in an easy-to-understand outline drawing package.
The main tasks of PALFINGER's Project Engineering include:
Provide drawings showing the proper layout of the PALFINGER product and truck
Provide accurate stability and weight distribution calculations
Designing sub-frame structures
Creating installation guidelines and providing additional support for product installation

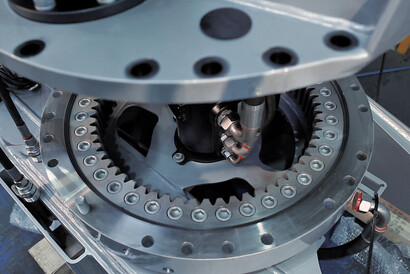

The PALFINGER turntable bearing permits an unrestricted radius of action. The crane is rotated or 'slewed' using a gearbox and hydraulic motor rather than a rack and pinion system. All slewing mechanisms come as standard with a high-quality roller ball bearing.
How It Works
A hydraulic motor drives a pinion that meshes with a base-mounted high-quality roller ball bearing, rotating the crane. The gears are precision machined to minimize backlash between the gears. The roller ball bearing is made with very tight width, flatness, and perpendicularity tolerances. The matching surfaces on the base and the column are machined in a single clamping for the highest possible accuracy. On larger cranes, two identically sized slewing motors are set across from each other on the column. One motor is hydraulically preloaded against the other, eliminating all backlashes in the rotation system.

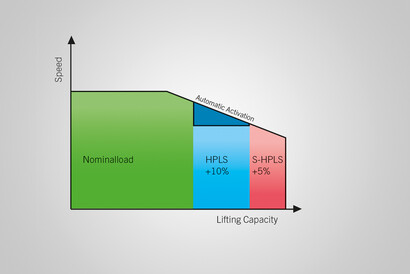

The PALFINGER HIGH POWER LIFTING SYSTEM (E-HPLS or S-HPLS) increases the crane's capacity by up to 15% with reduced working speed. E-HPLS can be activated manually for the occasional manipulation of very heavy loads. S-HPLS is activated fully automatically for the SH crane series. There is continuous activation depending on the power required.
How It Works
If HPLS is activated, then the hydraulic pressure is increased electronically. That way, a higher payload can be achieved. At the same time, the speed is reduced by the electronic system.
KTL — Cathodic Dip Painting
Innovative technology for surface coating is the foundation for durable and long-lasting surface protection—a unique KTL process with years of experience and environment-friendly energy consumption.

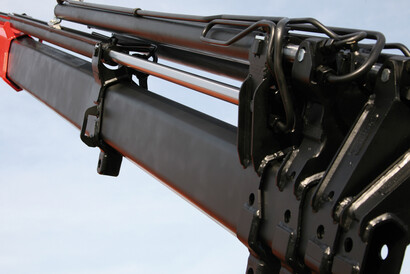

LOW MAINTENANCE EXTENSION SYSTEM
With the low maintenance extension system, PALFINGER leads the way in service-friendliness. The use of sliding elements made from special synthetic material and the highly dependable KTL cataphoretic dip painting means that the operator no longer needs to grease the boom system.
How It Works
The sliding elements are molded from special synthetic material and have self-lubricating properties. No further servicing is required after the first initial lubrication, in which food-grade grease is used. All other elements (slide rails, slide blocks, etc.) operate without grease. These elements have only a secondary function as sliding elements, primarily employed as adjustment and guiding elements. Special synthetic materials are also used for the paint to protect against corrosion.
Our goal is to provide our customers with product sales support, mounting, and service for dealers and customers.
PALFINGER has further developed the proved stability system HPSC and offers application oriented additional functions in a modular system. One of the modules of this HPSC-Plus concept is HPSC-Plus LOAD. It reacts to the loading condition of the truck and calculates on the basis of the inclination the maximum load limit suitable for the respective situation.
P-Fold is a PALFINGER assistance system. It makes folding and unfolding an easy job for the operator. The P-Fold system also works in combination with the innovative RTC (Rope Tension Control). Both systems perfectly support the crane’s set-up processes and thus reduce set-up times to a minimum.
High Performance Stability Control (HPSC) is a proportional system which recalculates and defines the working range and stability of the crane. Sensors for proportional path measurement are located in the stabilizers make their positioning fully variable.
The PALFINGER High Power Lifting System (E-HPLS, A-HPLS or S-HPLS) increases the capacity of the crane by up to 15% while reducing working speed. E-HPLS can be activated manually for the occasional manipulation of very heavy loads. A-HPLS as well as S-HPLS are activated fully automatically. There is continuous activation depending on the power required.
