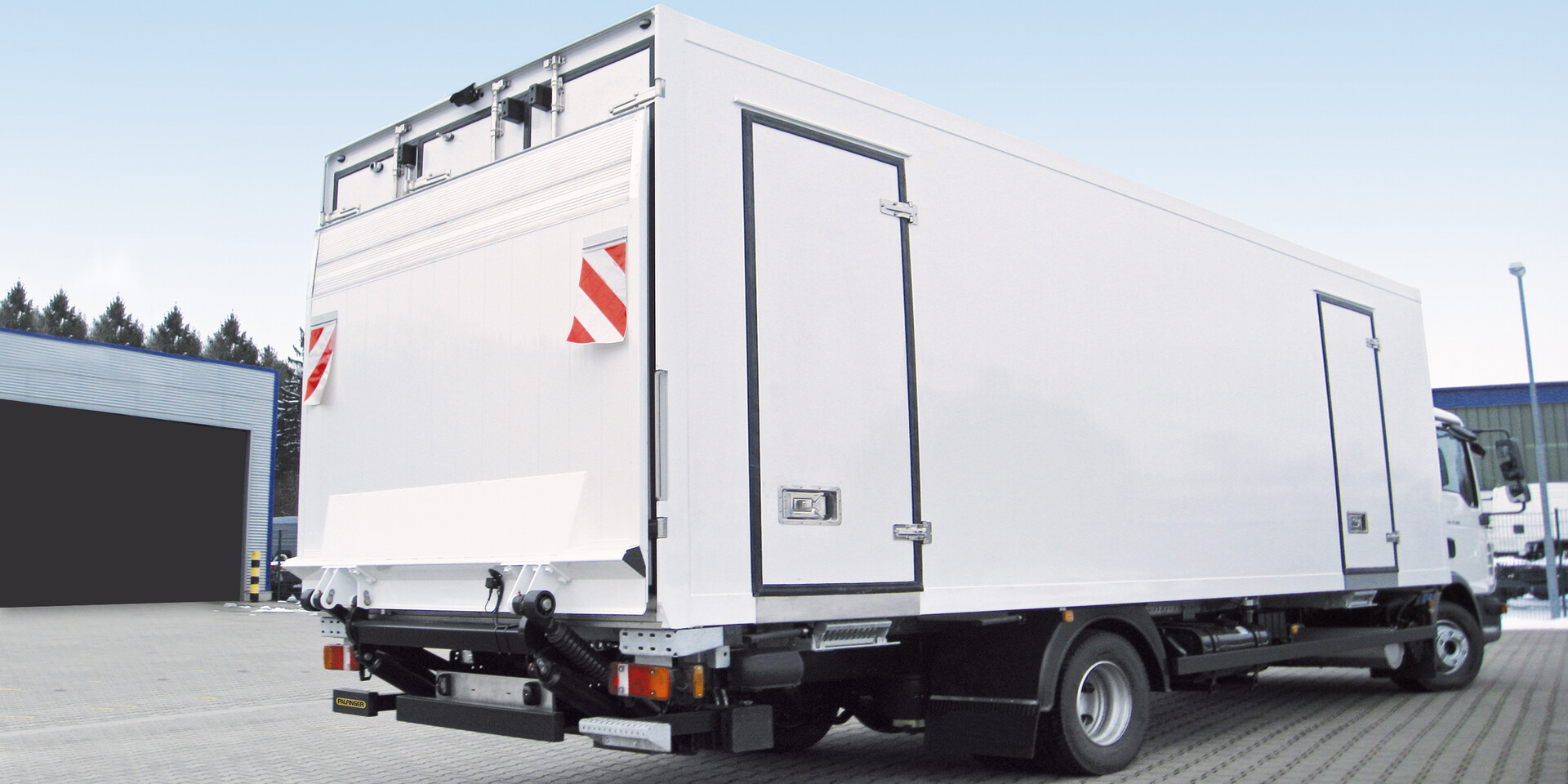

Tail Lift

MBB C 2000 L
  • Optimum ratio of dead weight to payload = greater transport capacity
  • Lifting capacity of 2,000 kg with 750 mm load distance
  • Variable lifting mechanism with five available lifting arm lengths for all common attachment situations
  • Design with aluminium or steel platform
  • Wide range of options and equipment variants
تنزيلات بيانات فنية
Lifting capacity 2000 كجم
العارضة الرئيسية 180 x 180 mm
هيدروليكا ترس الرفع 2 lifting cylinder / 2 tilting cylinder
تداخل المنصة مع الأرضية - 63 mm
درجة ذراع الرفع/طول ذراع الرفع 1300 mm
مركز التحميل - طولًا 750 ملم
مركز التحميل - عبر المركز Central 50% of rated load on one side
زاوية ميل المنصة +90° to -10°
Platform type Platform width platform height Dead Weight Dead Weight
alu 2500 1800 517 -
alu 2500 2100 539 -



The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

a (mm) Q (kg)
750 2000
900 1650
1100 1300
1600 950
2400 600



Feasibility study

Webtool for automatic feasibility study for C- Type Lifts

Here you can create your feasibility study drawing online. For an extensive range of vehicles, quickly and without obligation

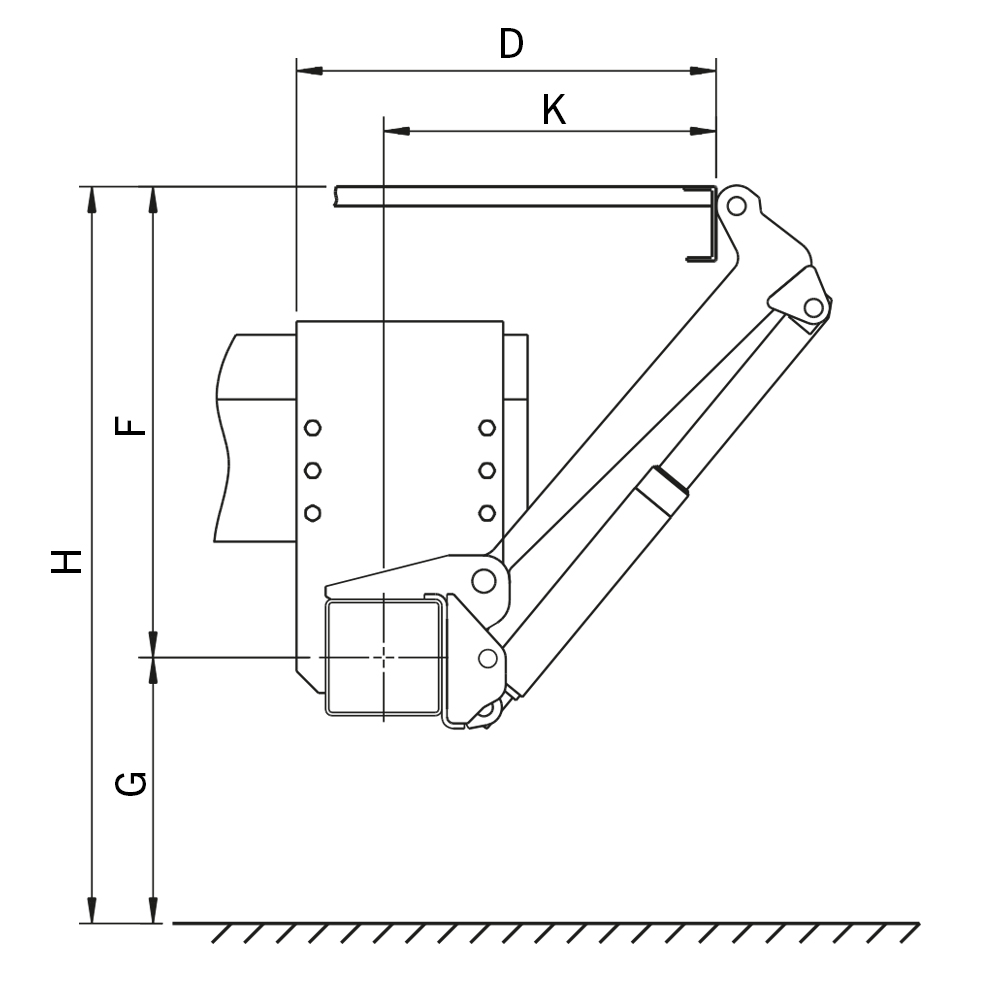

Dimensions

Lift arms (in mm) 750 800 850 950
H (max.) Loading height unloaded 1340 1416 1505 1657
H (min.) Loading height loaded 1127 1165 1204 1281
F (max.) Middle of main beam to upper edge of loading floor 858 904 967 1061
K (min.) at dimension F (max.) 413 434 410 444
D (min.) Installation space (min.) 563 584 560 594
D (max.) Installation space (max.) 752 785 816 880
F (min.) 742 780 819 896
K (max.) at dimension F (min.) 602 635 666 730
