MBB V 4000 S / SX
Tail Lift
Key Specs
- Lifting capacity
- 4,000 kg
- Lifting gear hydraulics
- 2 lifting cylinders / 2 tilting cylinders / 1 bridging plate cylinders
- Load centre - lengthwise
- 1,500 mm

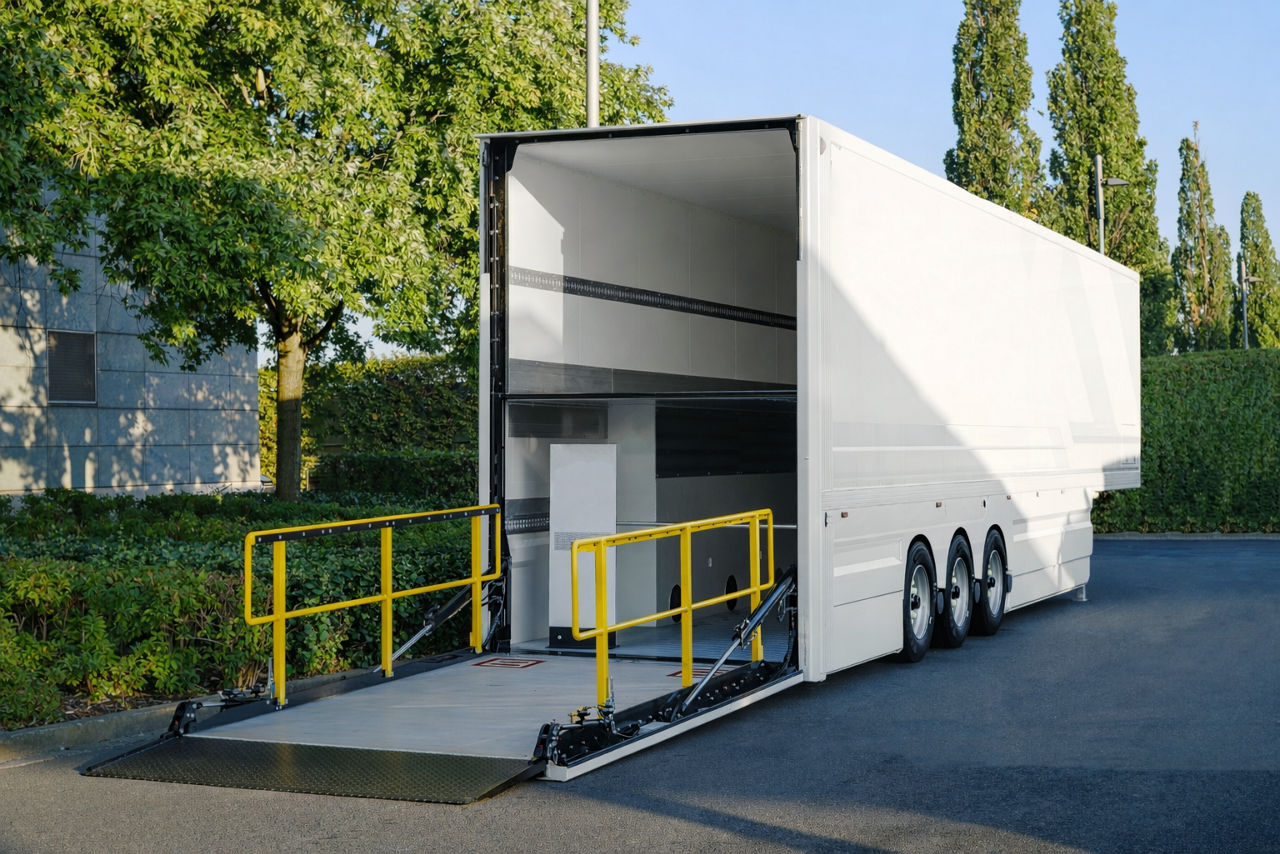

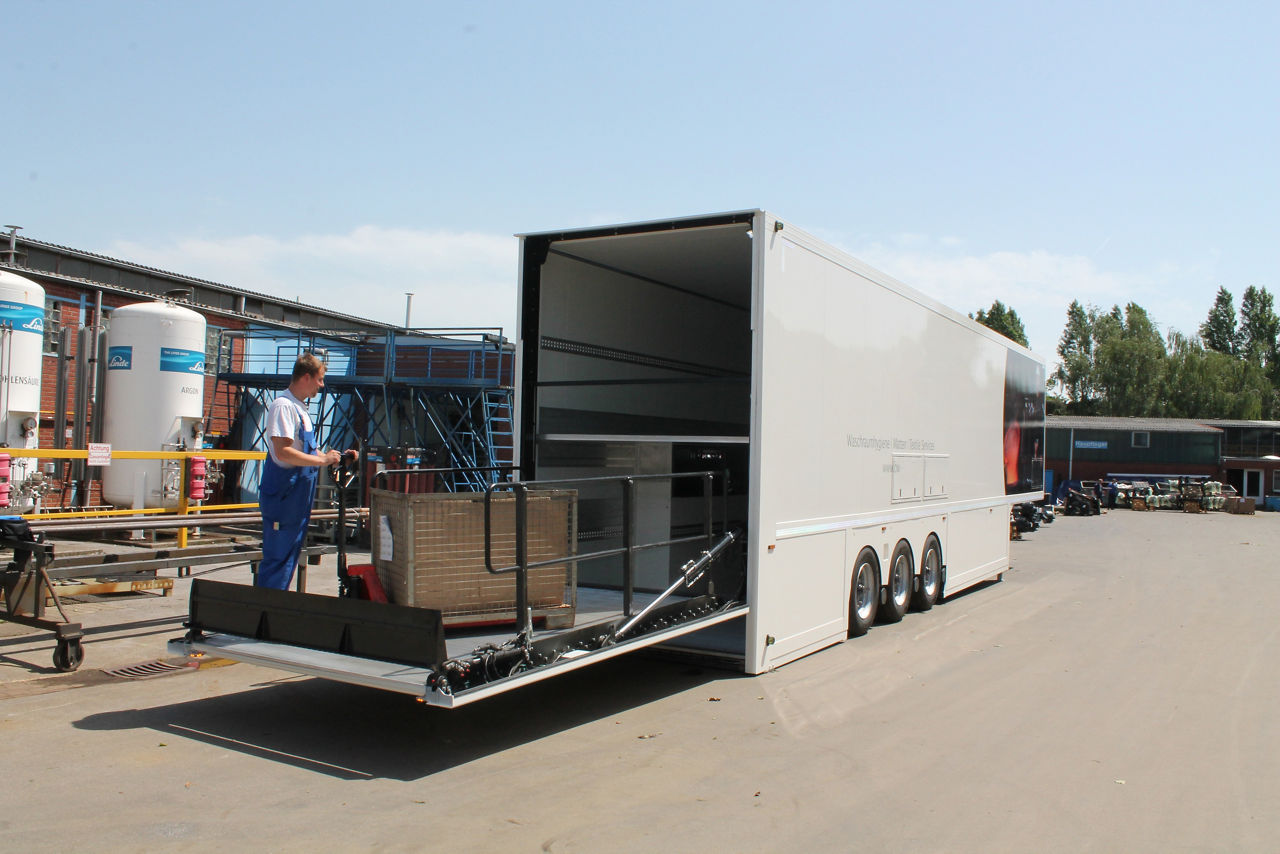

The MBB V 4000 S / SX is a powerful vertical lift specifically developed for double-deck trailers. With a lifting capacity of 4,000 kg, it enables efficient loading processes across multiple levels. Its robust design, easy installation on the rear portal and fully closing platform ensure high reliability and optimal integration.
Technical Specifications
Technical data
- Lifting capacity
- 4,000 kg
- Lifting capacity
- 4000 kg
- Lifting gear hydraulics
- 2 lifting cylinders / 2 tilting cylinders / 1 bridging plate cylinders
- Load centre, longitudinal
- 1,500 mm
- Inclination angle of the platform
- +10° to -10°
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Weights
|
Dead Weight |
platform height |
Platform width |
|
|---|---|---|---|
| 1,390 kg | 2,771 mm | 2,500 mm |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Diagram
| a (mm) | Q (kg) |
| 1500 | 4000 |
| 1750 | 3400 |
| 2000 | 3000 |
| 2250 | 2600 |
| 2500 | 2400 |
Dimensions
| A Lifting height | 3864 mm |
| B Lifting width | 2543 mm |
| H1 Height of deck 1 | 1900 mm |
| H2 Height of deck 2 | 1798 mm |
| Y Platform height | 2771 mm / 3775 mm (standard) |
| X Lenght bridge plate | 400 mm / 800 mm (steel) , 800 mm (aluminium) |
| Maximum loading-space width | 1990 mm |
| Maximum loading-space height | 1798 mm |
