Cantilever
MBB C 1000 SPL / SPR
Tail Lift
Key Specs
- Lifting capacity
- 0 kg
- Lifting gear hydraulics
- Load centre - lengthwise
- 0 mm

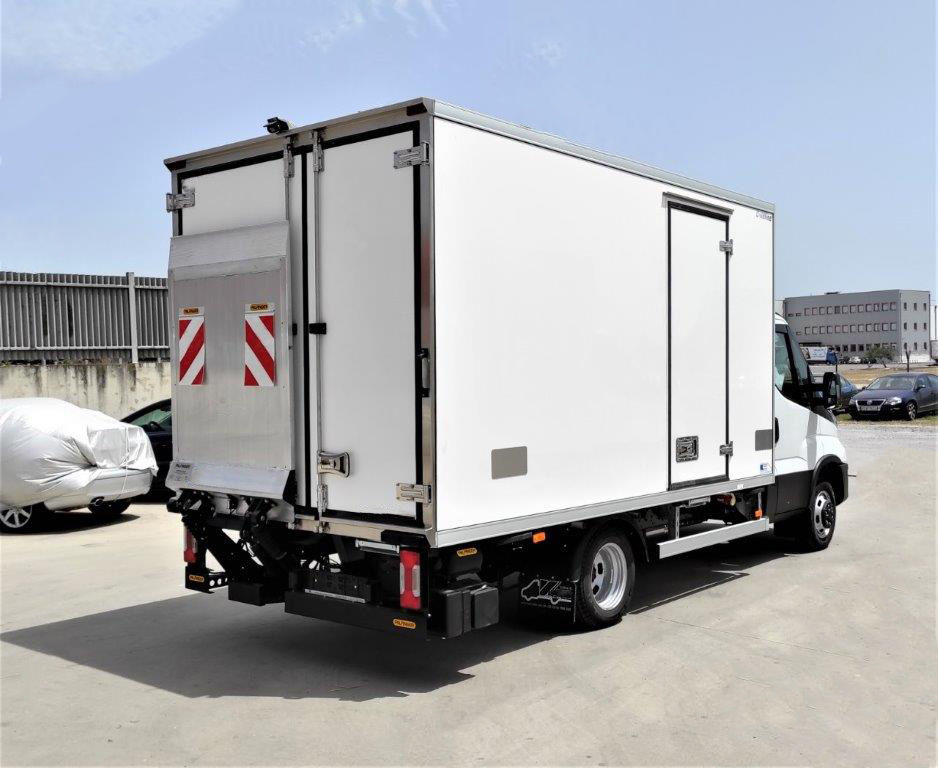

The MBB C 1000 SPL/SPR features a partial platform mounted on either the left or right side of the vehicle, allowing free access to the opposite side of the body. Its design is especially suited to refrigerated transport, where quick access and reduced opening of the rear help minimise cold loss.
Technical Specifications
Technical data
- Lifting capacity
- 0 kg
- Load centre, longitudinal
- 0 mm
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Weights
|
Dead Weight |
platform height |
Platform width |
|
|---|---|---|---|
| 317 kg | 1,450 mm | 1,000 mm | |
| 319 kg | 1,550 mm | 1,000 mm | |
| 320 kg | 1,600 mm | 1,000 mm | |
| 324 kg | 1,825 mm | 1,000 mm |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Diagram
Dimensions
Robust lifting mechanism for precise movement
The durable lifting mechanism with two lifting and two tilting cylinders, a three-part underrun protetction device, and Q8 Heller T15 hydraulic oil ensures stable and precise platform movements during lifting and lowering. All steel components are KTL-coated as standard for optimal corrosion protection. An additional powder coating is available as an option, further increasing the tail lift’s durability and resistance – ensuring long-lasting, reliable performance in daily operation.
Lightweight aluminium platform for daily use
The AluLite 40 aluminium platform combines high stability with low weight. Its slip-resistant standard surface with simple cross-milling (R10) ensures secure grip during loading and unloading. Standard equipment includes warning lights and warning flags – ensuring safe and convenient operation in daily distribution work.
Comfortable operation as standard
The tail lift is equipped as standard with the Slim Control Panel in the Basic version. The flat, robust control panel enables intuitive and safe operation of the lift. Thanks to its ergonomic button layout and flexible installation options, it ensures a high level of operating comfort and efficient workflows in daily use.
Reliable control with MBB Control
MBB Control is the central control unit of the tail lift, connecting all key components for precise and responsive movement sequences. The processor-based control system enables individual software adjustments for various vehicle and application requirements. Integrated diagnostic functions support quick error analysis and ensure maximum reliability in daily operation.
Optional Features
Stabilizer options for increased stability
Depending on the requirements, the lifting mechanism can be equipped with either a hydraulic or a mechanical stabilizer. Both options increase stability during loading and unloading and minimise vehicle movement – ensuring safe and steady operation, even with heavy loads.

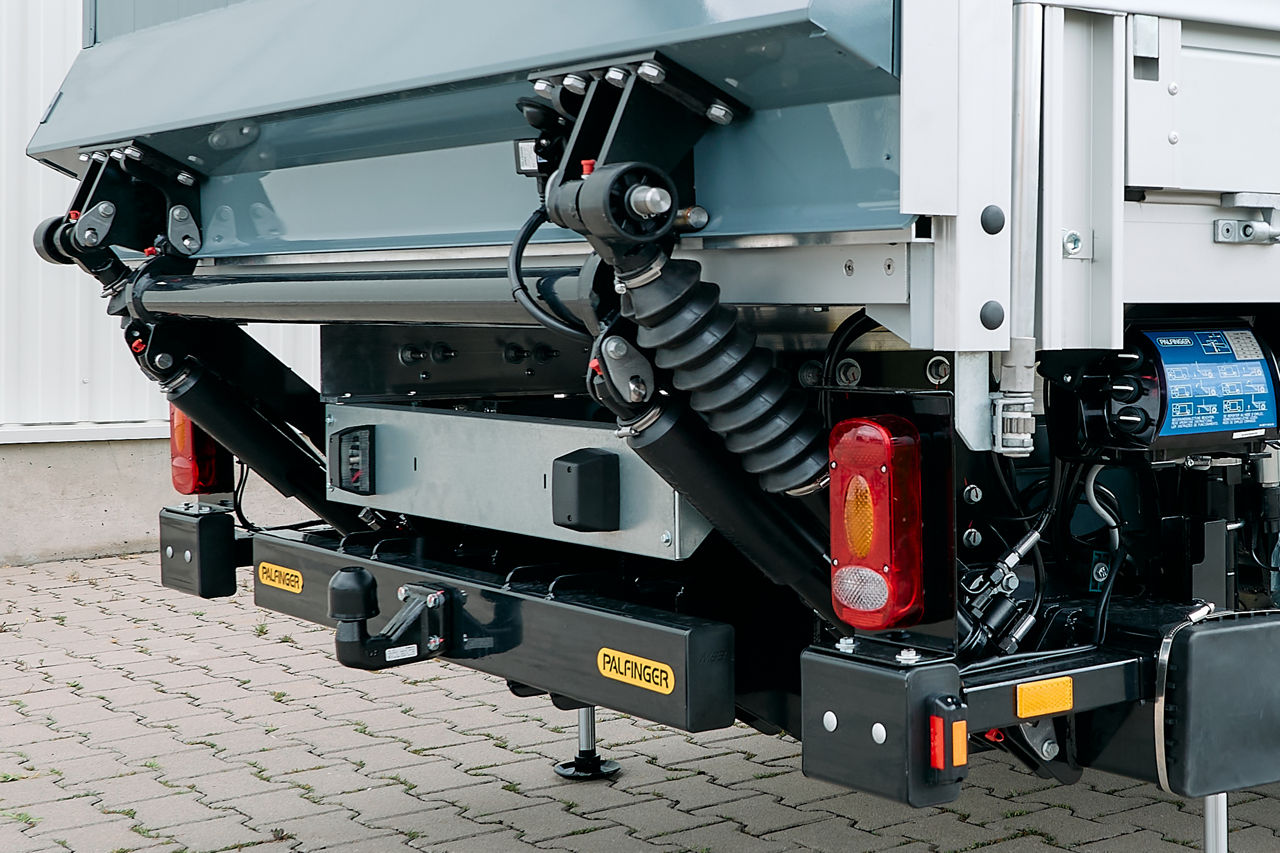

Ball-head coupling option
Our tail lifts can be equipped with a ball-head coupling either directly at initial delivery or later as a retrofit. While the factory-installed option is integrated during production, retrofitting is also possible by replacing and welding the underrun protection device – giving operators full flexibility even after the vehicle has been put into service.
Alternative aluminium platform variant
In addition to the standard AluLite platform, the AluStar platform offers a more robust alternative for demanding applications. Its reinforced tunnel-structure design ensures exceptional durability, while the flat rear surface provides optimal space for mounting an advertising panel – ideal for maximising brand visibility in daily operation.
Optional platform coatings
Depending on the application requirements, various platform coatings are available. In addition to the standard surface with simple cross-milling (R10), options include double cross-milling for increased slip resistance and a synthetic coating that provides additional surface protection, reduced noise levels, and a durable, low-maintenance finish.
Protective features for platform durability
Stainless steel caps protect the outer platform edges from impacts and wear, while additional protective bars for warning lights and foot switches prevent damage to components. Together, these options ensure long-lasting reliability and reduced maintenance effort – even in demanding working environments.
MBB SafeVis
The MBB SafeVis lighting system enhances visibility and safety in low-light or challenging working conditions. Illuminated edge strips and illuminated roll-stops ensure a clearly visible platform at all times. The lighting is available as steady or flashing light, supporting operators in working with greater confidence and precision. High-quality LED technology provides bright, glare-free illumination and long service life – ideal for safe operation in daily distribution work.
Options for increased load safety
Optional roll-stops and recesses provide reliable protection when handling roll containers and other wheeled loads. Roll-stops prevent cargo from moving off the platform, while recesses help securely position containers on the platform surface. Together, these features increase stability, safety, and control during loading and unloading.

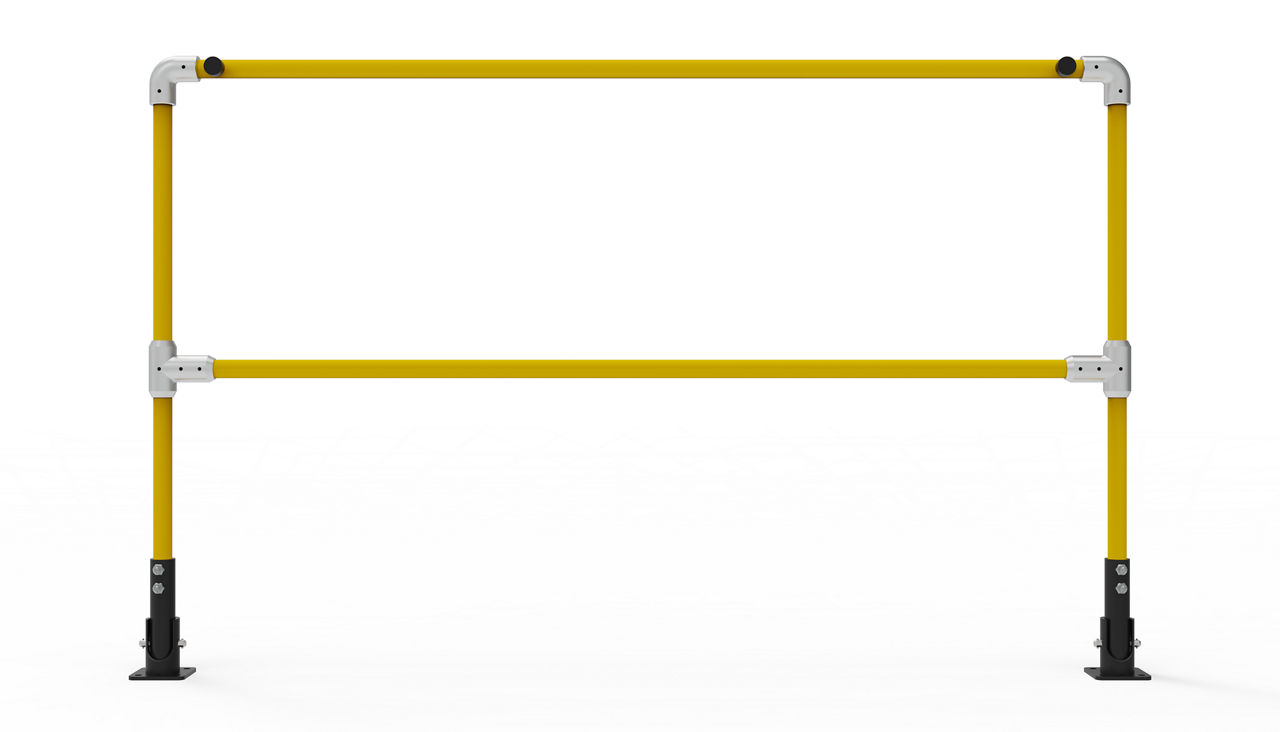

Platform railings for increased operator safety
Optional platform railings provide additional side protection and increase operator safety during loading and unloading. Two versions are available: the A-shaped railing for the AluStar platform and the P-shaped railing for the AluStar platform. Both variants enhance safety when working on the platform.

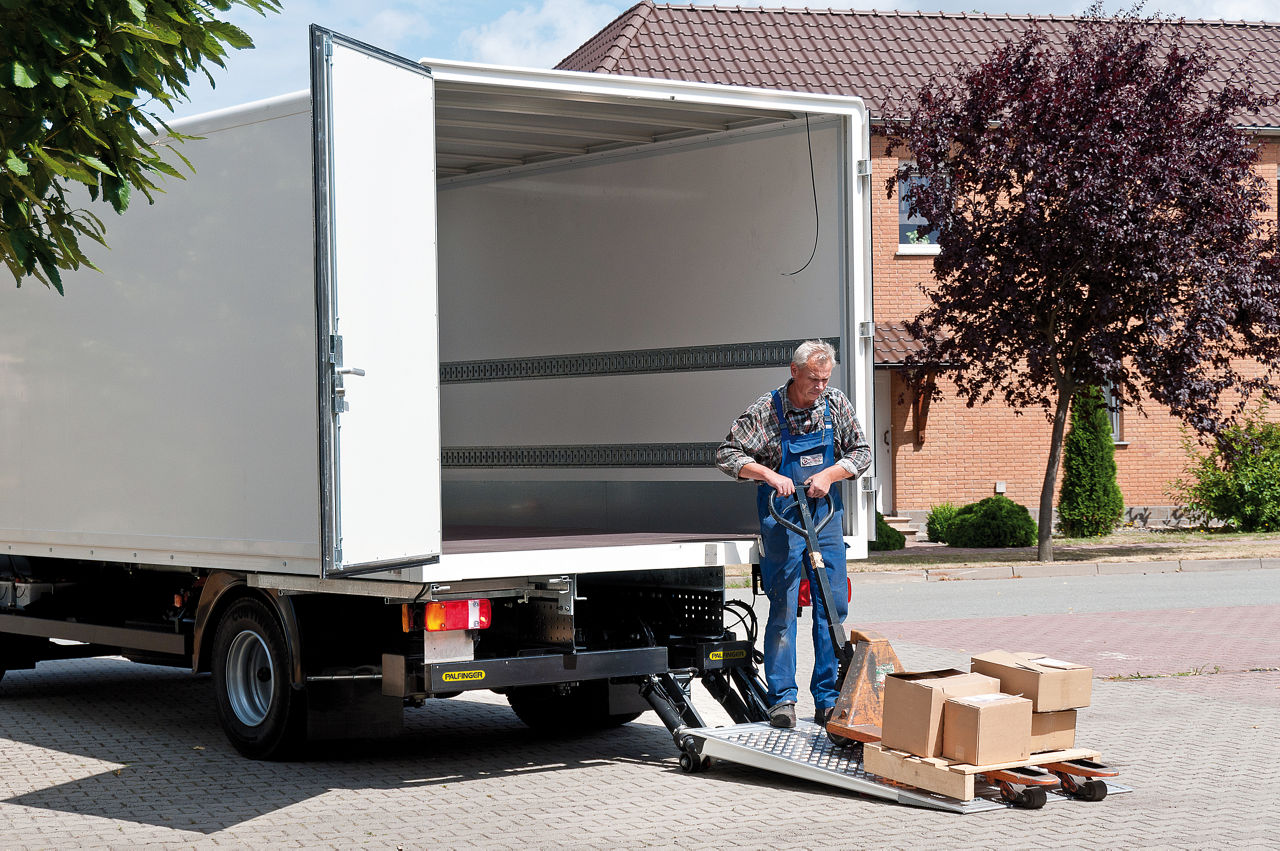

Efficient side-loading solution
An optional lateral C-profile (FixoEdge) can be integrated at the platform edge, enabling stepless attachment of a side loading rail (FixoBridge). This allows convenient side loading and unloading, increasing efficiency and flexibility in daily operation.
Flexible operating options
In addition to the Slim Control Panel (Basic version), a wide range of control units is available – from the Slim Control Panel in Plus and Premium versions to foot switches, the control box, Remote Control BT, 3+1 control buttons and wanderlead controls. This allows each tail lift to be perfectly adapted to its specific area of application.
Optional cabin control
The optional in-cab control unit allows the tail lift to be operated directly from the driver’s cabin. This reduces walking routes around the vehicle and speeds up preparation for loading and unloading – improving convenience, safety, and workflow efficiency in daily operation.
Individual software options
Various software options are available for additional functions or specific application requirements. These allow customised control adjustments, such as QuickDown – reducing lowering time through combined lowering and opening movements for greater comfort, efficiency, and safety in daily operation.
Alternative hydraulic oils
Depending on the operating environment, different hydraulic oils can be selected. AeroShell Fluid ensures reliable performance at temperatures down to –40 °C, while the biodegradable bio oil offers an environmentally friendly option for everyday use.
