Special
PK 35001 EL
Loader Crane
Key Specs
- Max. lifting moment
- 31.8 mt
- Max. lifting capacity
- 4,200 kg
- Max. hydraulic outreach
- 18.9 m
Our High Performance range is built for maximum power, endurance, and control. The heavy-duty PK 35001 EL delivers outstanding reach and lifting power with smooth, rapid motion. Single Link improves boom motion geometry for greater precision, even at maximum extension – ideal for roofing, joinery, and industrial assembly.
Technical Specifications
Technical data
- Max. lifting moment
- 31.8 mt
- Max. lifting capacity
- 4,200 kg
- Max. hydraulic outreach
- 18.9 m
- Slewing angle
- 400°
- Slewing torque
- 4.5 mt
- Stabilizer spread (std)
- 66 m
- Width folded
- 2.55 m
- Max. operating pressure
- 320 bar
- Pump capacity
- 60 - 80 l/min
- Dead weight (std)
- 4,110 kg
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

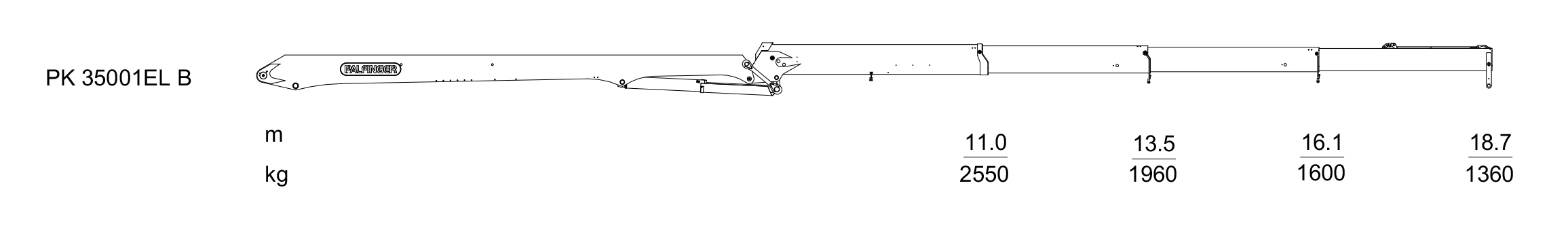

Lifting capacities
|
Crane Height (mm) |
Crane Weight (kg) |
Crane Width (mm) |
Lifting moment (mt) |
Outreach (m) |
Pressure (MPa) |
Pump capacity (l/min) |
Slewing angle (°) |
Slewing torque (mt) |
|
|---|---|---|---|---|---|---|---|---|---|
| B | 2,900 mm | 4,110 kg | 2,550 mm | 27 mt | 18.9 m | 32 bar | 60-80 | 400 | 4.5 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
