7 - 17 t GVW

HT 05

From 5.5 to 7.5 t GVW trucks

alt text
alt text
alt text
alt text
alt text
alt text
alt text
Hooklift
Key Specs
Recommended Application
Fits all applications
Lifting Capacity
5 t
Container length
2750 - 4750 mm

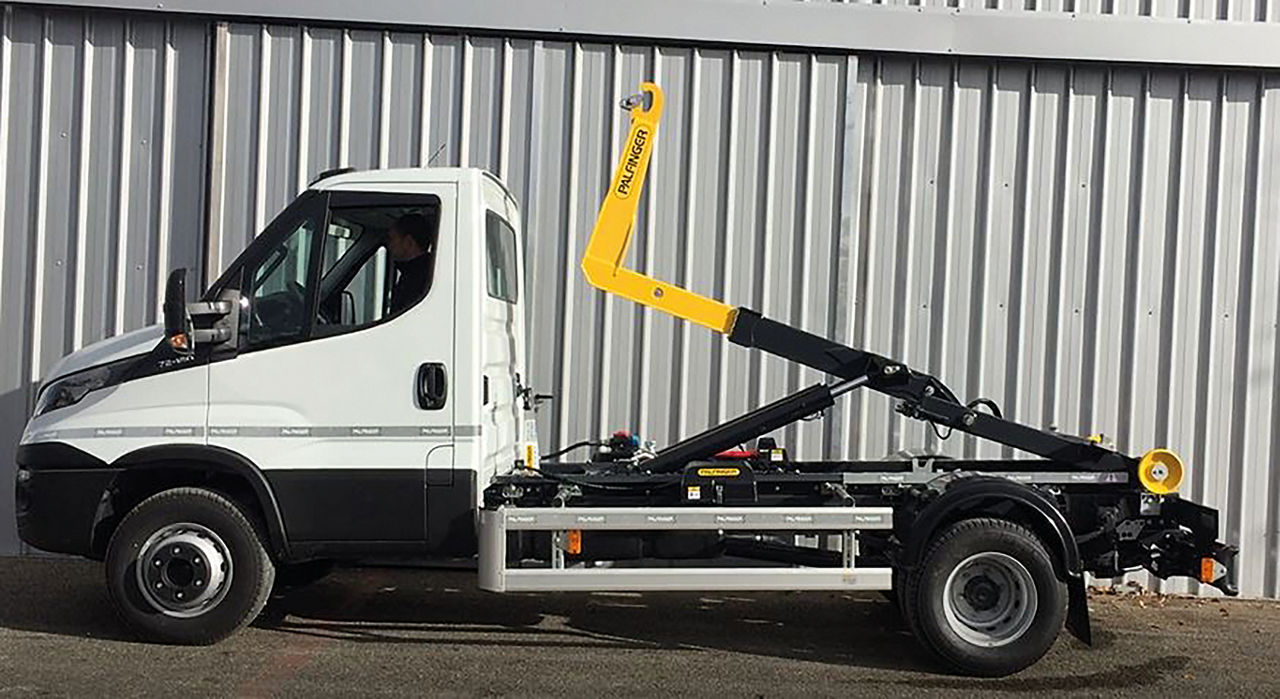

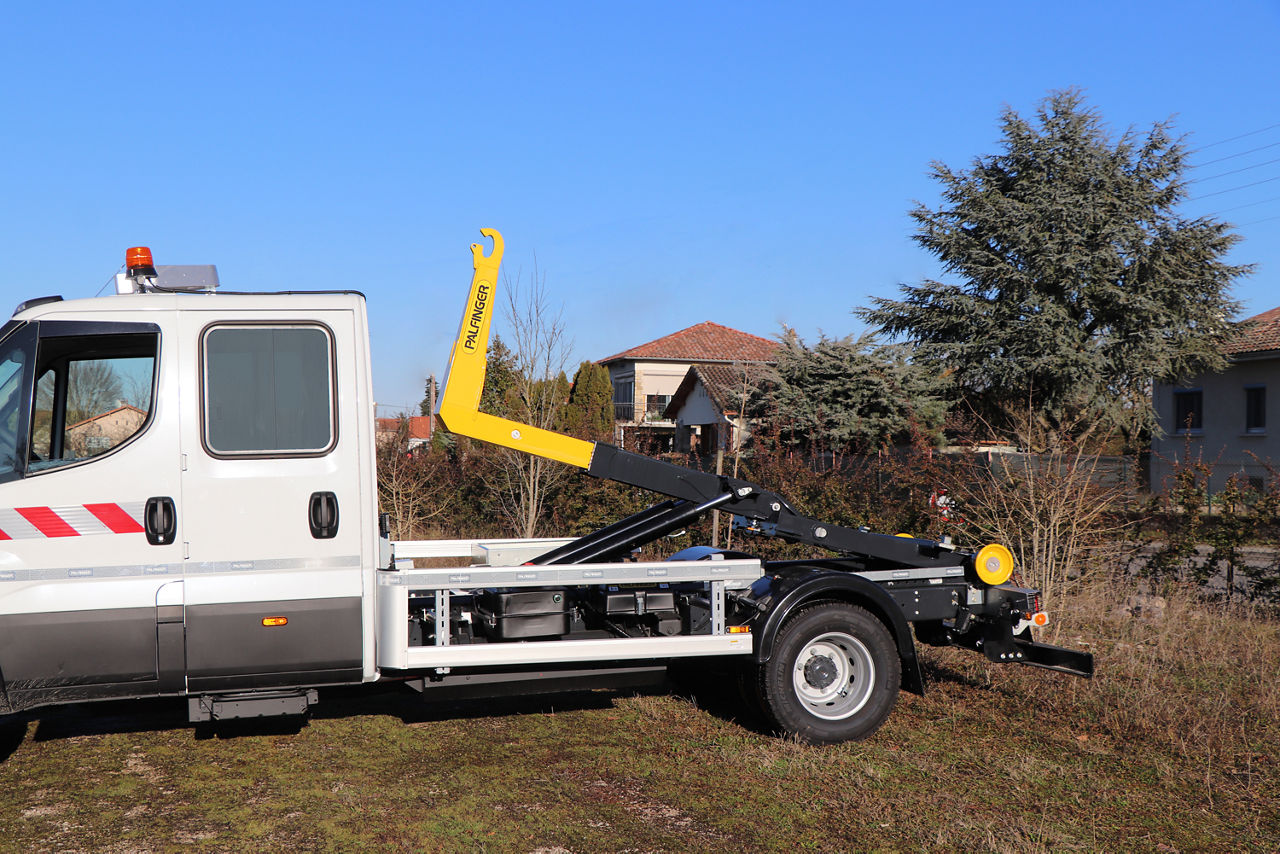

Telescopic hooklifts deliver high versatility with a proven sliding system that accommodates different container lengths and adapts easily to various market needs. Their low transport height and reduced weight provide safe, flexible solutions for a wide range of applications worldwide.

    Find Sales Partner

    Request a quote

    I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

    I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

    Request a quote

    I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

    I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

    Versatility for a reliable partner

    Unlock ultimate flexibility with our sliding arm system, designed to handle boxes of varying lengths effortlessly. This smart solution maximizes usage potential across all markets while ensuring smooth, intuitive operation. Easy to use, highly versatile, and built to adapt—your perfect partner for efficient, reliable performance.

    alt text

    Engineered for Maximum Performance

    Engineered for maximum performance, this hooklift delivers strength and precision day after day. Its advanced design combines reliable technology with consistent operating stability, ensuring smooth, uninterrupted workflow in demanding environments.

    alt text

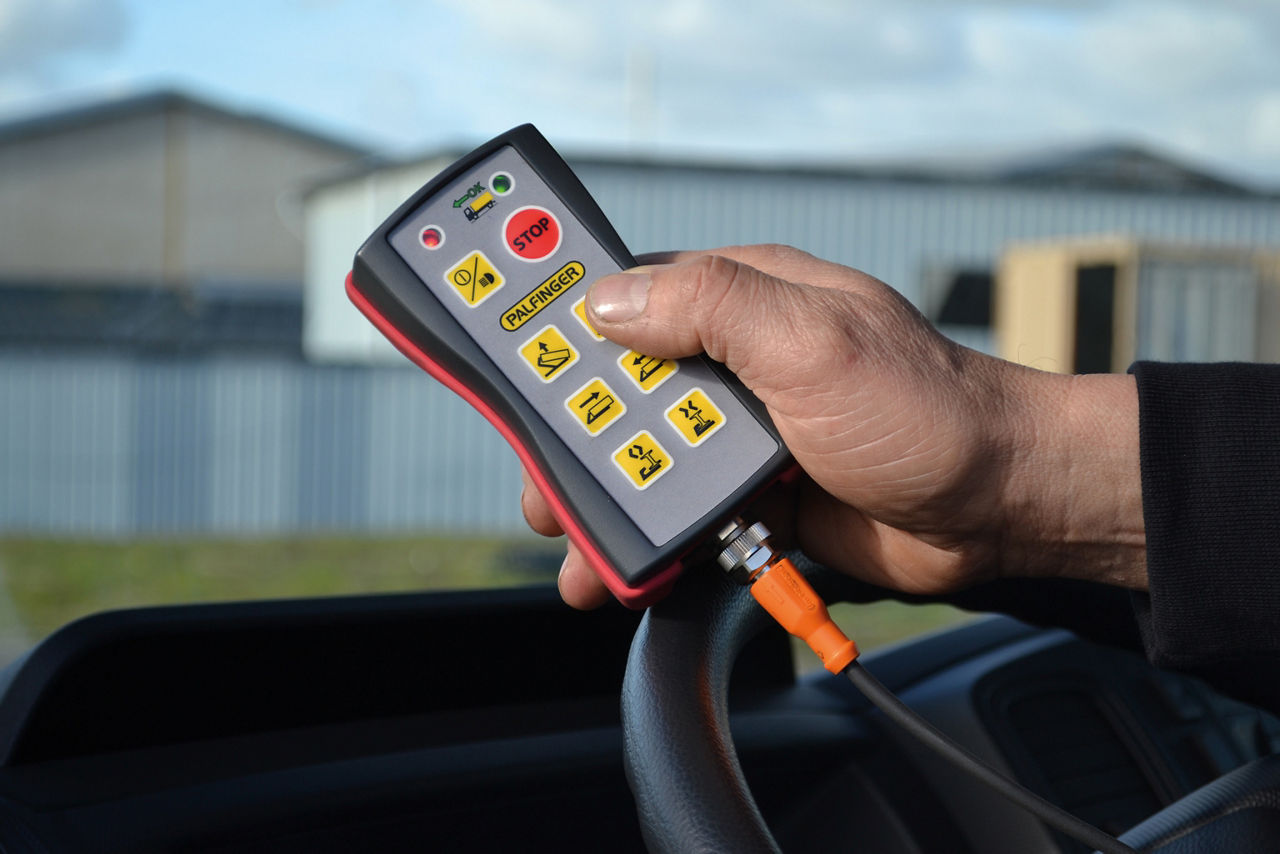

    Compact, easy-to-use control system

    With its simple and robust single-block design, the Easy Drive control system manages all essential functions of the HT 05 hookloader. It is ideal for users who want straightforward operation and for fleets where drivers change frequently.

    alt text

    Technical Specifications

    alt text
    Technical data
    HT 05 SLD

    Container max. length (mm)

    Container min. length (mm)

    Tipping angle (°)

    Transport height

    Unit length (mm)

    Weight (kg)
    HT 05 SLD 3,800 mm 2,750 mm 50 ° 180 mm 3,000 mm 660 kg
    HT 05 SLD 4,000 mm 2,750 mm 50 ° 180 mm 3,150 mm 665 kg
    HT 05 SLD 4,250 mm 3,000 mm 46 ° 180 mm 3,300 mm 670 kg
    HT 05 SLD 4,500 mm 3,200 mm 48 ° 180 mm 3,600 mm 685 kg
    HT 05 SLD 4,800 mm 3,400 mm 45 ° 180 mm 3,900 mm 685 kg
