Premium Class

P 370 KS

Access Platform

Working Height 37 M

Basket Load 500 KG

Side Reach 31.5 m

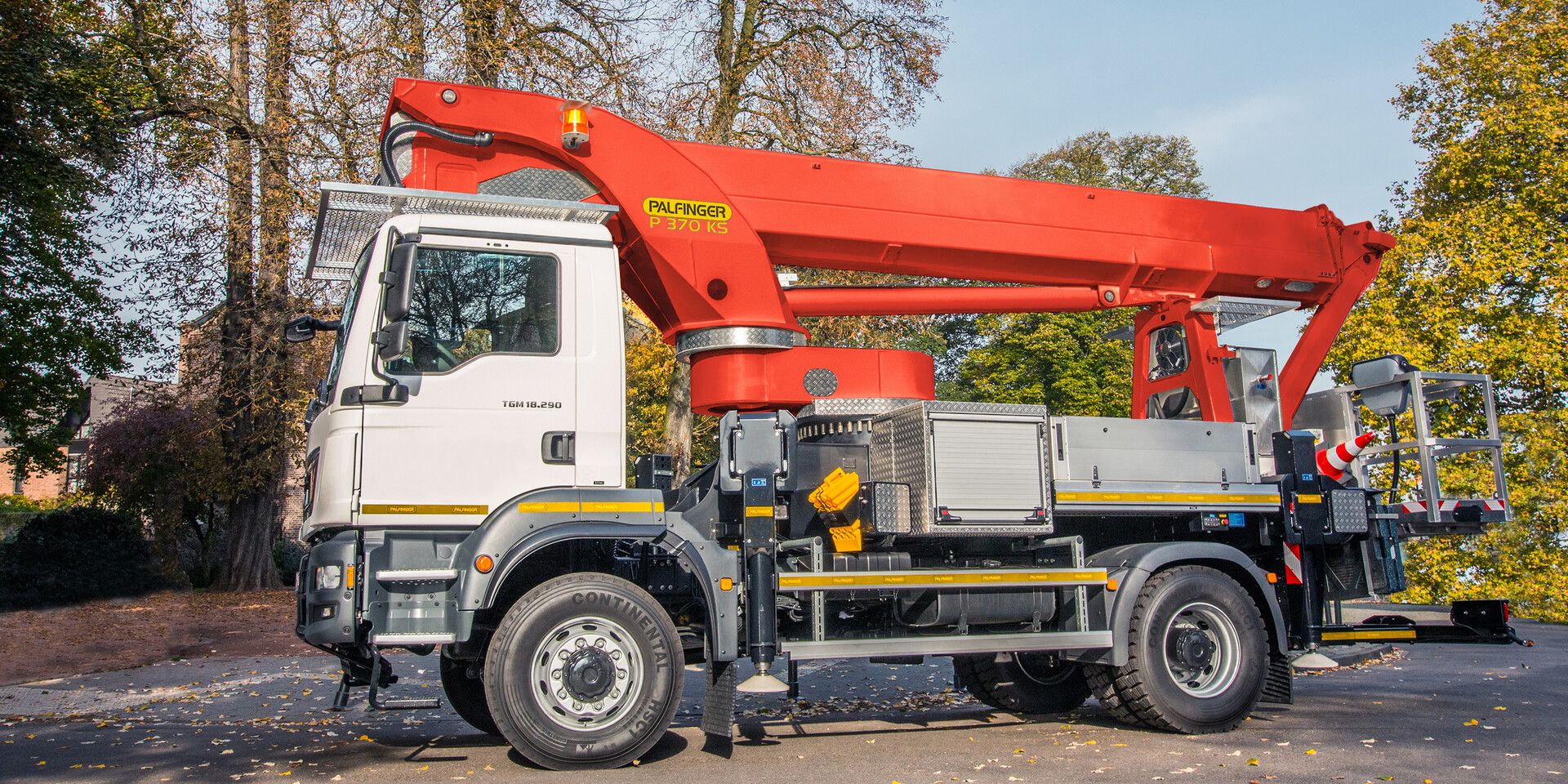

THE TOP MODEL IN THE PREMIUM CLASS

The P 370 KS is agile, versatile, compact and extremely powerful. This platform combines the best of two worlds. It integrates the impressive flexibility of the WT series and the compact design and well-known counter slewing system of the KS series.

Patented counter slewing system enables slewing within the mirror width of the chassis
Robust, 2-m-wide aluminium workman basket with 500 kg basket load and integrated Powerlift mount
Driver information system via display in the cab and Premium basket control panel
1000 mm stabilising stroke to compensate for highly uneven terrain
Automated positioning system

Downloads

Perfection in Action

Images & Videos

Highlights

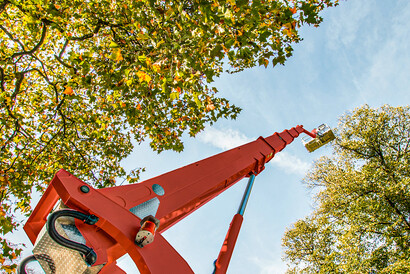

THE HIGHEST PLATFORM IN THE PREMIUM CLASS

Reach high treetops with ease: the tremendous performance and extreme robustness of the P 370 KS make it possible to work safely and conveniently at heights of up to 37 m.

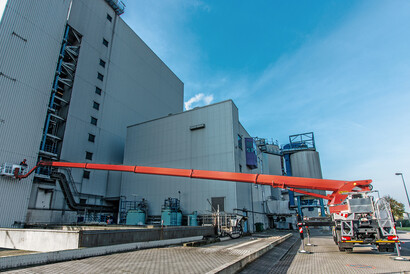

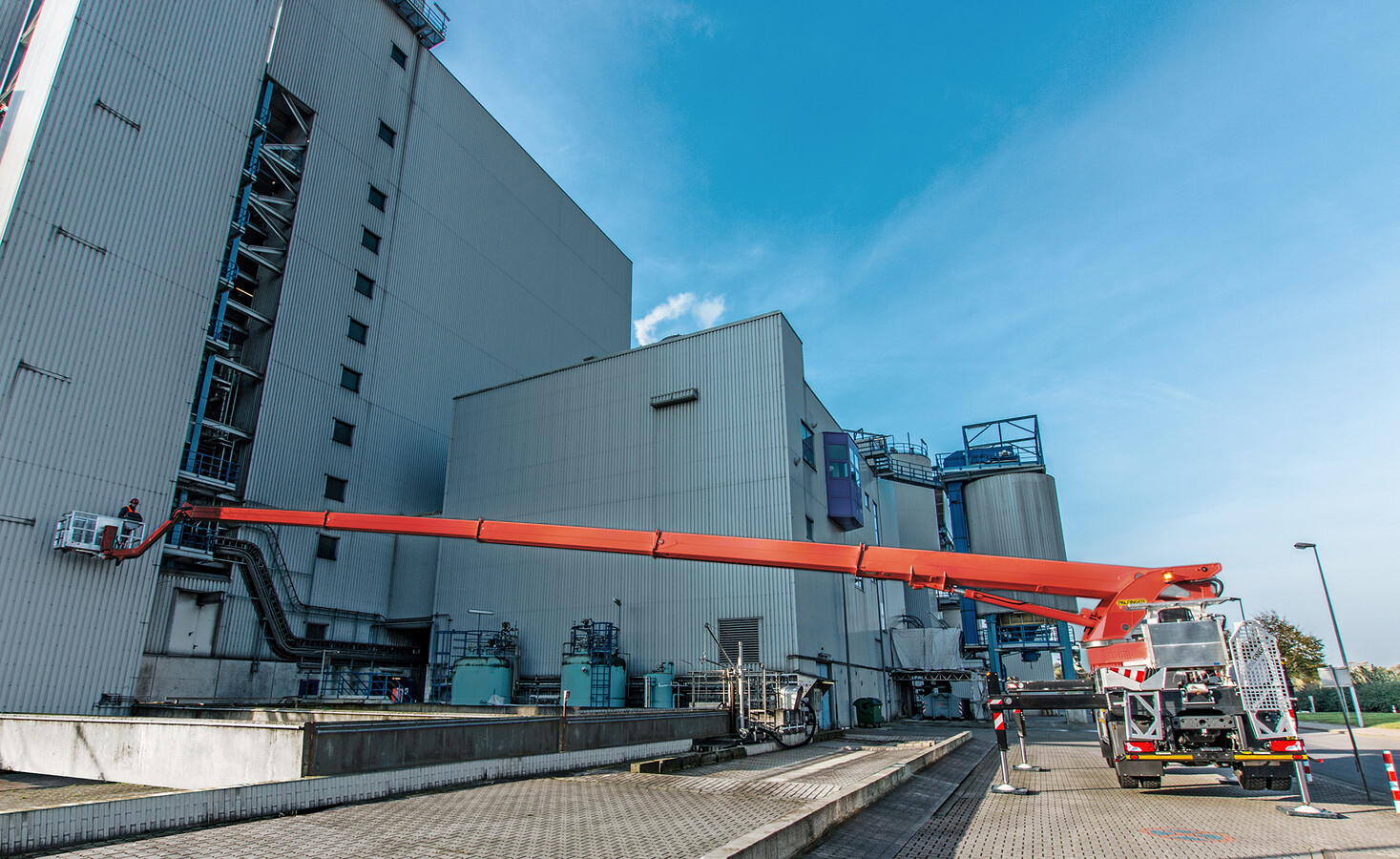

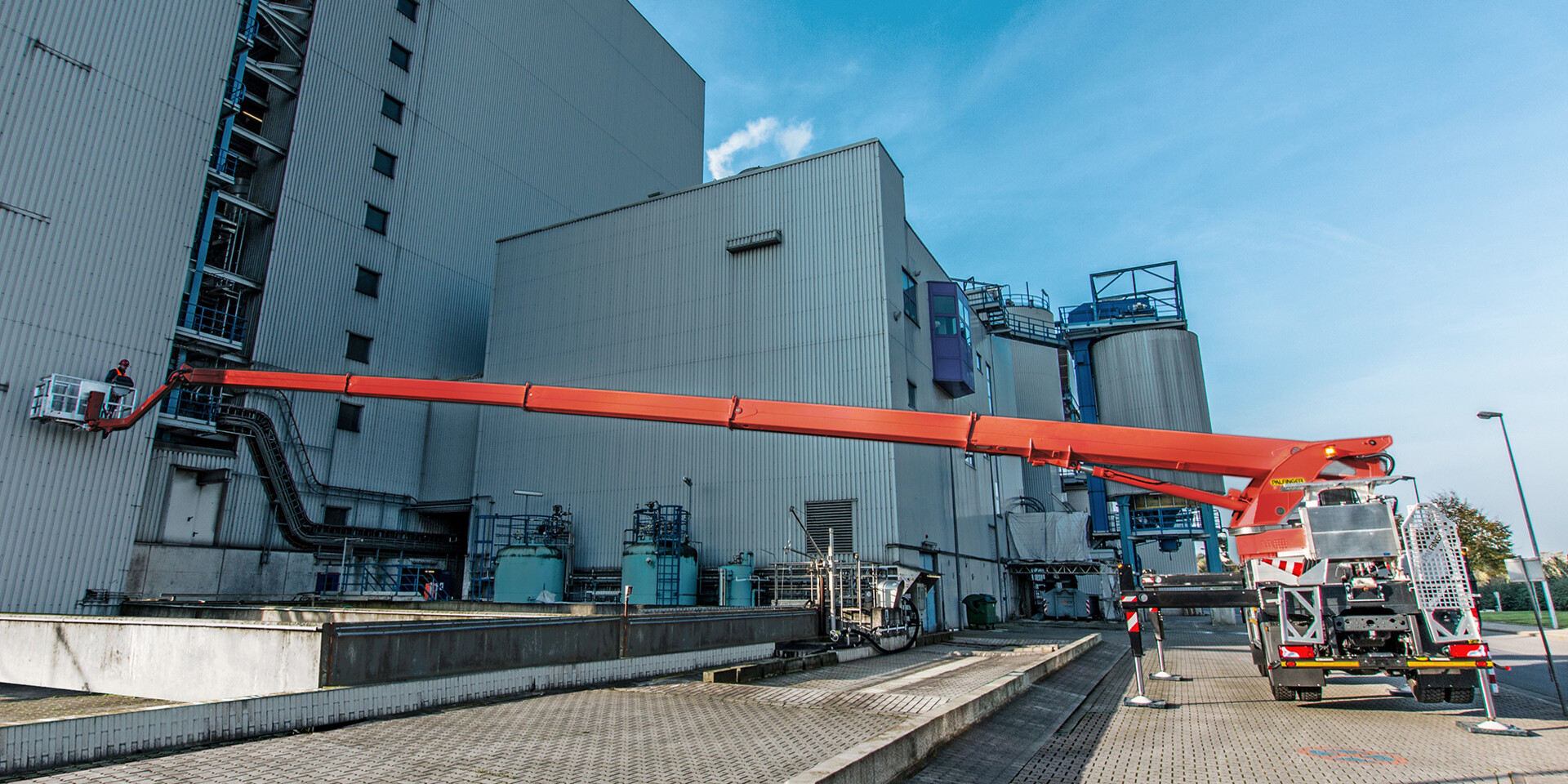

HIGH-PERFORMANCE ALL-ROUNDER WITH LONG OUTREACH

Thanks to its outreach of up to 31.5 m, obstacles to access can be overcome easily with the P 370 KS.

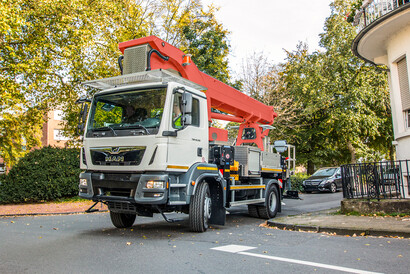

COMPACT AND MANOEUVRABLE IN TRANSIT

Mounted on an 18 t chassis (with all-wheel drive as an option), the P 370 KS will reach any work site quickly, and cuts a fine figure both on the road and on rough terrain.

IDEAL FOR WORKING IN TRAFFIC

The patented PALFINGER counter slewing system enables the platform to be turned within the vehicle's width (including mirrors).

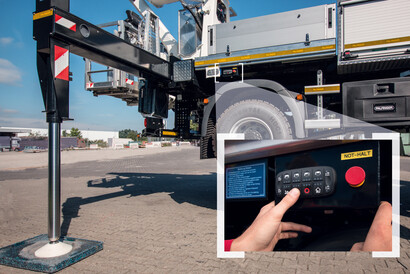

AUTOMATED POSITIONING SYSTEM WITH SUPPORT STABILISING ENSURES SAFE AND EFFICIENT WORK

For the P 370 KS, features from the Jumbo NX class have been adapted for the first time in the Premium class, such as the stabiliser system with its outstanding 1,000 mm stabilising stroke. The stabiliser of the P 370 KS can be operated easily and safely from the base. Operators can move the stabiliser outriggers to the desired positions on each side with the utmost convenience. This improves safety, as operators never lose sight of the stabilisers during the process.

Max. height of work	37 m
Max. basket floor height	35 m
Max. horizontal outreach /with basket load	31.5 m
Slewing range of basket	+ / - 85°
Max. stabilizer spread	5.62 m
Operating angle of working arm	185°
max. basket load	500 kg
Workman basket - breadth / length / height	2.00 x 0.80 x 1.10 m
Rotation angle of turntable	500°
Maximum stabilisation gradient	2°
Height in transport position	3.85 m
Width in transport position	2.49 m
Overall length	8.35 m
Overall weight	18000 kg

* depending on inclination

** above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
