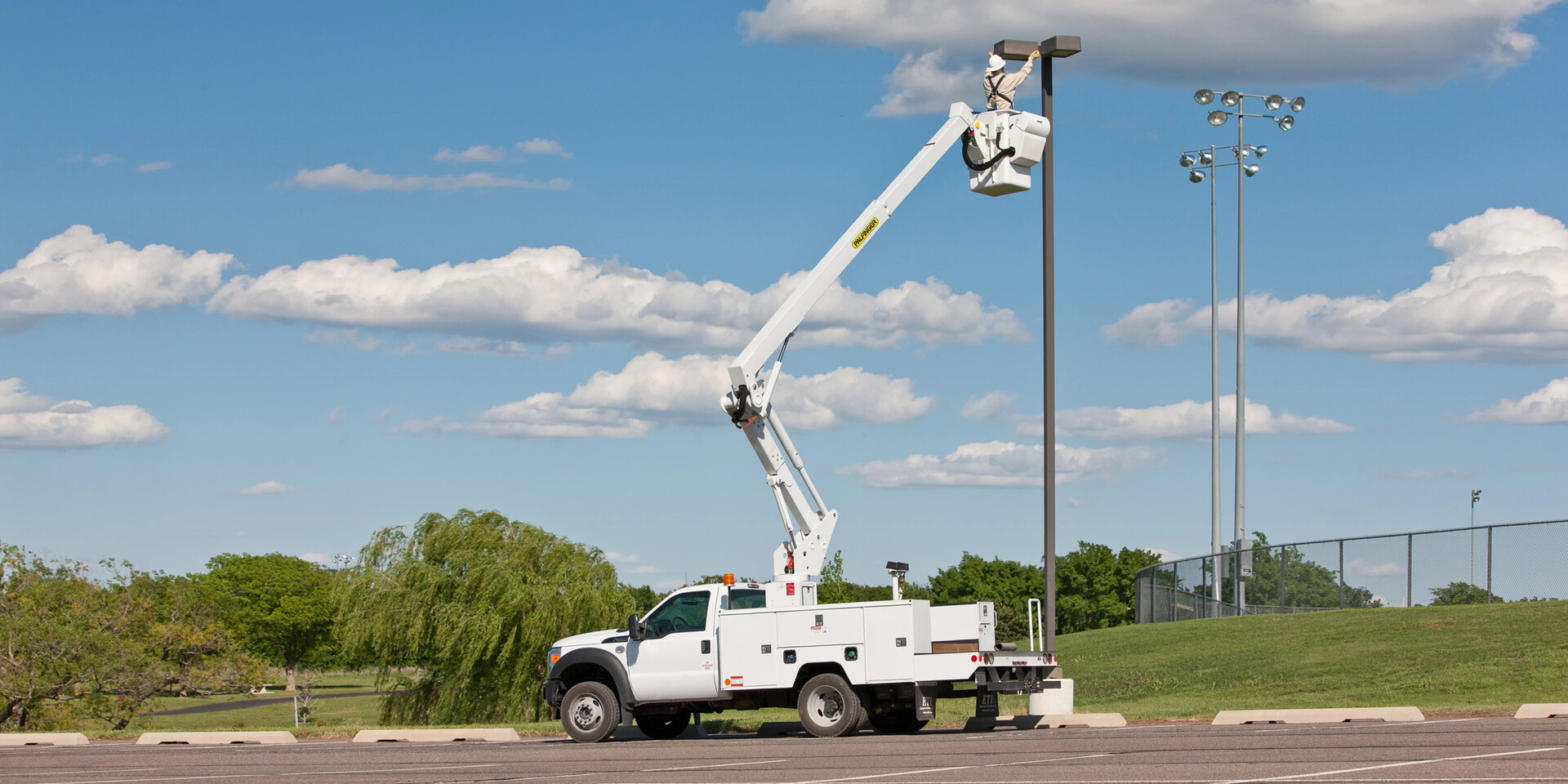

ETC 37 IH
Articulated Telescopic Insulated
The ETC model is one of the most popular aerial lift trucks offered by PALFINGER and with good reason. The ETC 37 IH is an insulated unit that offers an articulating and telescoping aerial with a working height of 42 feet. Its many standard options include boom tip covers, single handle controls, continuous rotation, full pressure hydraulic controls, emergency lowering valve and more.
The ETC 37 IH can be fully customized to your individual needs by adding a host of options including increased bucket capacity, tool circuit, outriggers and others. This model is built to satisfy customer demand for power, reach, and innovative design.
| Height to bottom of bucket | Working height | Side reach | Rated bucket capacity | Operating pressure | Operating volume | GVWR (dual rear wheels) | GAWR (front) | GAWR (rear) | C.A. | |
|---|---|---|---|---|---|---|---|---|---|---|
| ETC 37 IH | 37' 1" | 42' 1" | 28' 0" | 350 | 2400 | 4.5 | 16000 | 6500 | 12000 | 60 |
| Height to bottom of bucket | Working height | Side reach | Rated bucket capacity | Operating pressure | Operating volume | GVWR (dual rear wheels) | GAWR (front) | GAWR (rear) | C.A. | |
|---|---|---|---|---|---|---|---|---|---|---|
| ETC 37 IH | 11.30 m | 12.83 m | 8.53 m | 158.7 | 165.47 | 17 | 7258 | 2948 | 5443 | 152.4 |
- Continuous rotation is standard on all ETC units providing unrestricted rotation.
- Single handle control.
- Lower boom compensating link.
- Full pressure hydraulic controls located at basket and turret with full feathering capabilities from both upper and lower controls.
- Hydraulic leveling via master/slave system providing a bucket dump for clean out and operator rescue.
- Shear ball rotation gear driven by external drive gear box. Gear box has an extended shaft for manual rotation.
- Internally mounted holding valve (integral part of cylinder) locks cylinder in place in event of hydraulic failure.
- All pins turn on replaceable bushings.
- Inner boom extends with double acting hydraulic cylinder for safety and performance.
- Emergency lowering valve.
- Boom tip covers.
- Emergency hydraulic power (12VDC).
- Engine start/stop at bucket.
- Hydraulic tool circuit.
- Two speed throttle.
- Bucket liner.
- Bucket cover.
- Lower boom and compensating link inserts.
- Oversized bucket (24“x 30“x 42“).
- Hydraulic bucket rotator.
- Outriggers.
- APU - Axillary power unit to operate aerial unit & heat/cool cab.
- Various DC power options including cab comfort.
