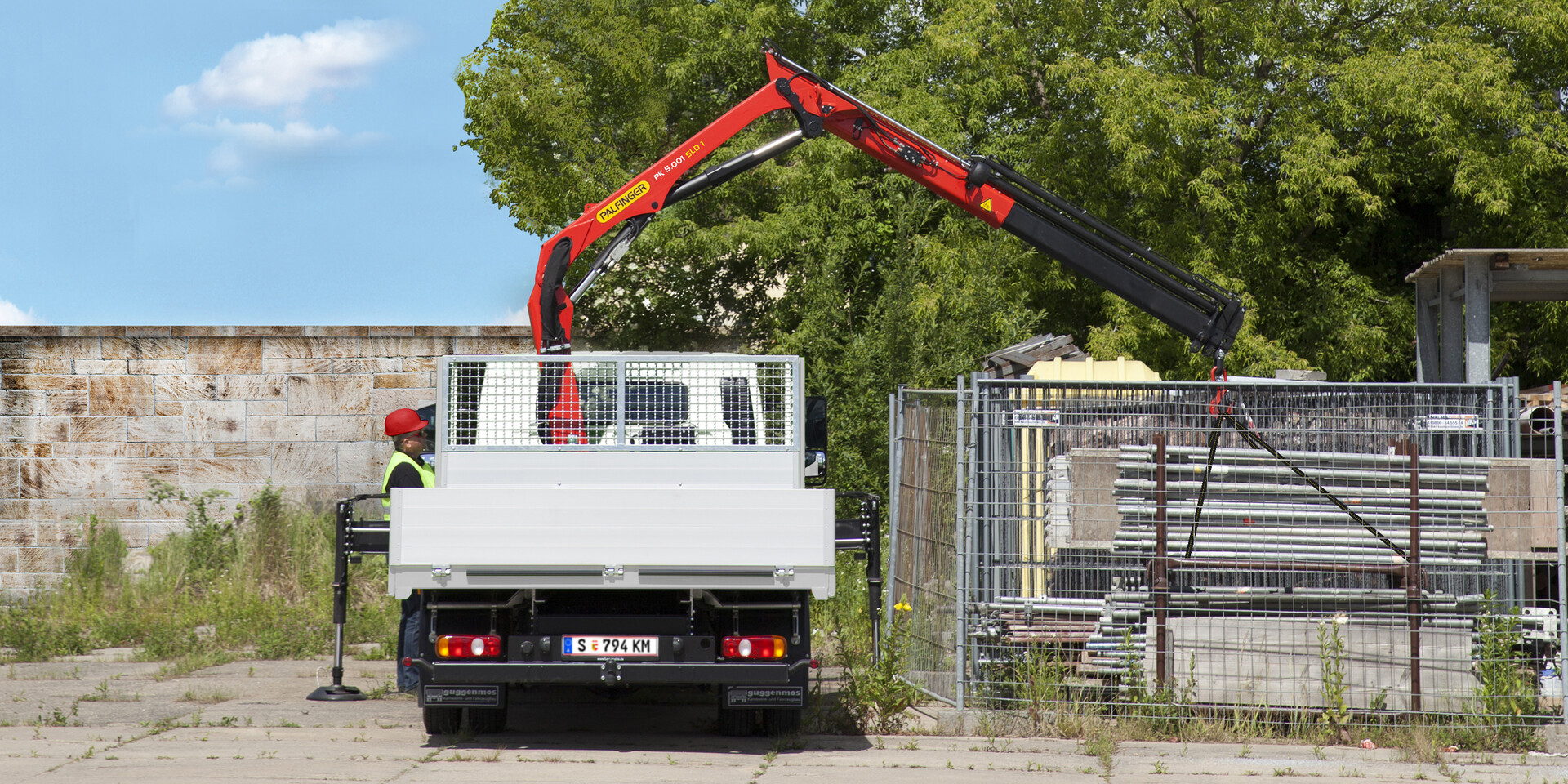

PK 5.001 SLD 1
Perfection in Action
Images & Videos
|Max. lifting moment||4.6 mt|
|Max. lifting capacity||3300 kg|
|Max. hydraulic outreach||11.1 m|
|Max. manual outreach||12.7 m|
|Slewing torque||0.6 mt|
|Stabilizer spread (std)||29 m|
|Fitting space required (std)||0.66 m|
|Width folded||2.10 m|
|Max. operating pressure||330 bar|
|Pump capacity||15 - 20 l/min|
|Dead weight (std)||695 kg|
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
|Lifting moment (mt)||Outreach (m)||Slewing angle (°)||Slewing torque (mt)||Pressure (MPa)||Pump capacity (l/min)||Crane Weight (kg)||Crane Height (mm)||Crane Width (mm)||Installation Width (mm)|
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
