PK 18.001L SLD 3

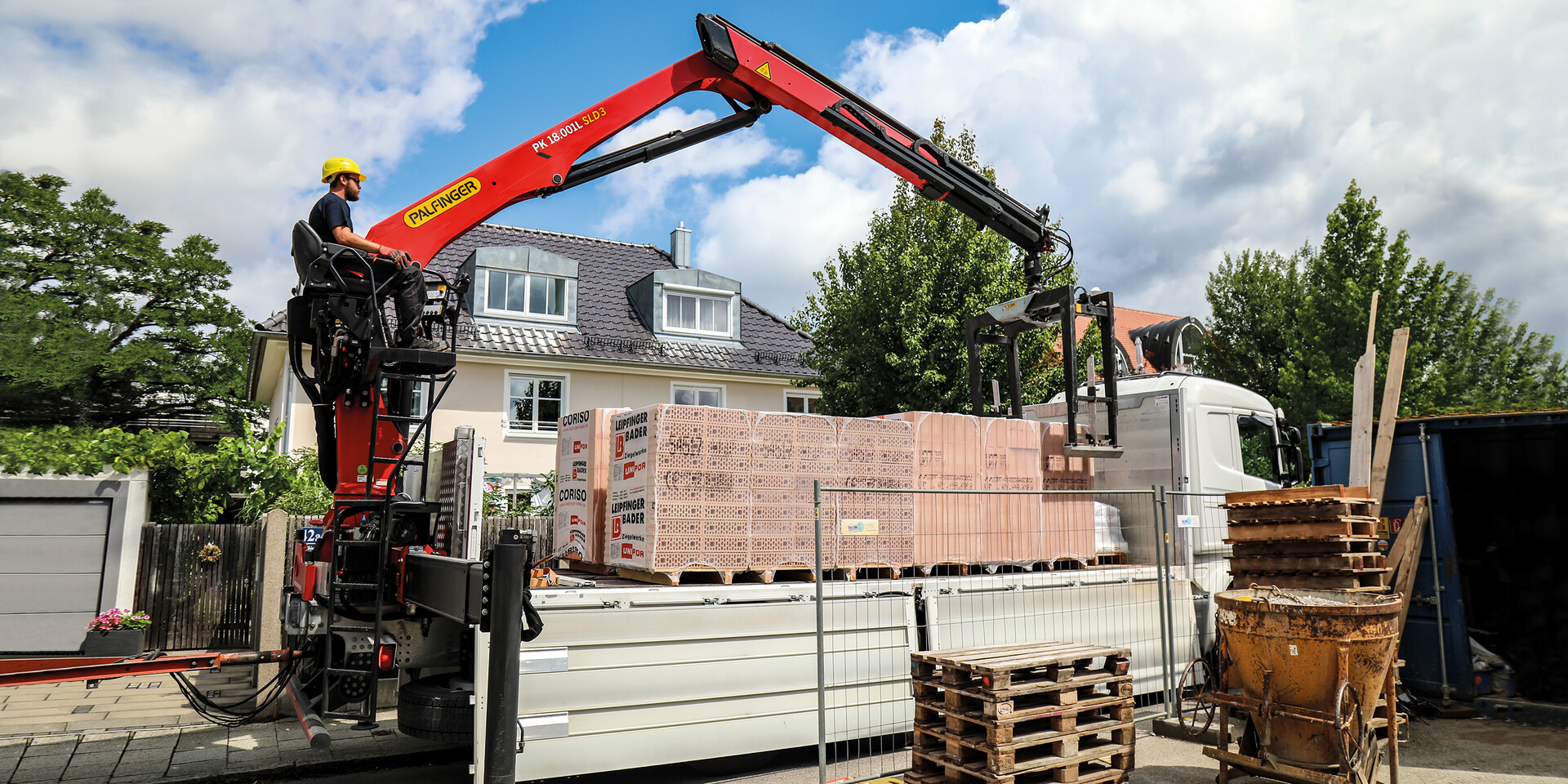

OPTIMIZED LOADING HEIGHT IN CLOSE RANGE ALLOWS EFFICIENT HANDLING OF CONSTRUCTION MATERIAL
- Single Link
- Paltronic overload protection
- Top seat
- Optional:
- Stability monitoring system ISC-S (standard for CE), HPSC-L, HPSC-E
- NON-CE and CE model
Slewing angle
The slewing angle of 440 degrees enables the maximum radius of action.
High Stand or Top Seat
The high stand is presented with numerous detailed improvements - compete in line with the design and configurations used by PALFINGER. It complies with the crane standard EN 12999: 2011 and is available alternatively for front and rear mounting. As another alternative, the top seat offers excellent visability for the operator as well as highest comfort.
Max. lifting moment | 17.7 mt |
Max. lifting capacity | 5000 kg |
Max. hydraulic outreach | 13.5 m |
Slewing angle | 440° |
Slewing torque | 2.3 mt |
Stabilizer spread (std) | 5.6 m |
Width folded | 2.55 m |
Max. operating pressure | 300 bar |
Recommended pump capacity Top seat RSQ240 |
50 - 70 l/min |
Recommended pump capacity Top seat RSQ240 LS |
65 - 90 l/min |
Dead weight (std) | 2270 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (mt) | Outreach (m) | Slewing angle (°) | Slewing torque (mt) | Pressure (MPa) | Pump capacity (l/min) | Crane Weight (kg) | Crane Height (mm) | Crane Width (mm) | Installation Width (mm) | |
---|---|---|---|---|---|---|---|---|---|---|
17.7 | 8.4 | 440 | 2.3 | 30.0 | 50-90 | 2270 | 2495 | 2550 | - | |
16.9 | 11.0 | 440 | 2.3 | 30.0 | 50-90 | 2470 | 2495 | 2550 | - | |
16.2 | 13.5 | 440 | 2.3 | 30.0 | 50-90 | 2660 | 2495 | 2550 | - |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
