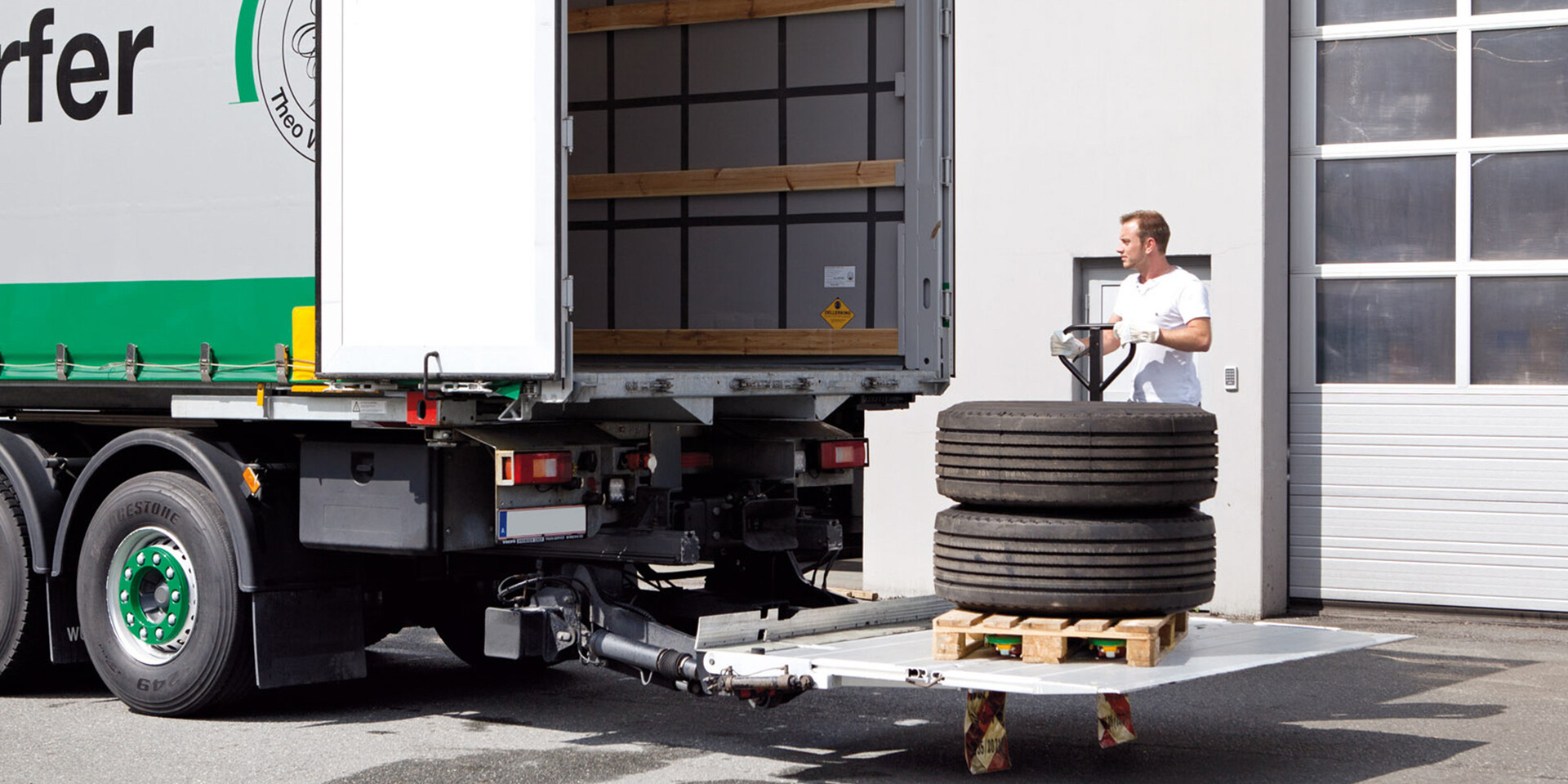

Retractable

MBB R 1500 SM

Tail Lift

  • 1,500/2,000 kg lifting capacity with four cylinders and 1,000 / 750 mm load distance
  • Double-fold aluminum platform, spring-supported
  • For short overhangs from 1,510 mm
  • Compact design thanks to a torsion-resistant steel moving frame, pre-assembled end beam and welded brackets
  • Spring-supported folding section
  • Platform package serves as underride guard
  • Powerful moving cylinder for horizontal positioning of the tail lift
  • Optionally with aluminum guide rails
  • Optionally available completely pre-assembled with energy chain
  • Optionally with bridging plate in aluminium for espagnolettes
  • In combination with a bridging plate, also suitable for vehicles with a BDF body
Downloads

Brochures

Datasheet Feasibility Study

0,12 MB Download

Operating Instructions

15,72 MB Download

MBB R 750 S – MBB R 2500 S not pre-assembled

0,21 MB Download

MBB R 1500 SM / MBB R 2000 LM

0,69 MB Download
