Retractable

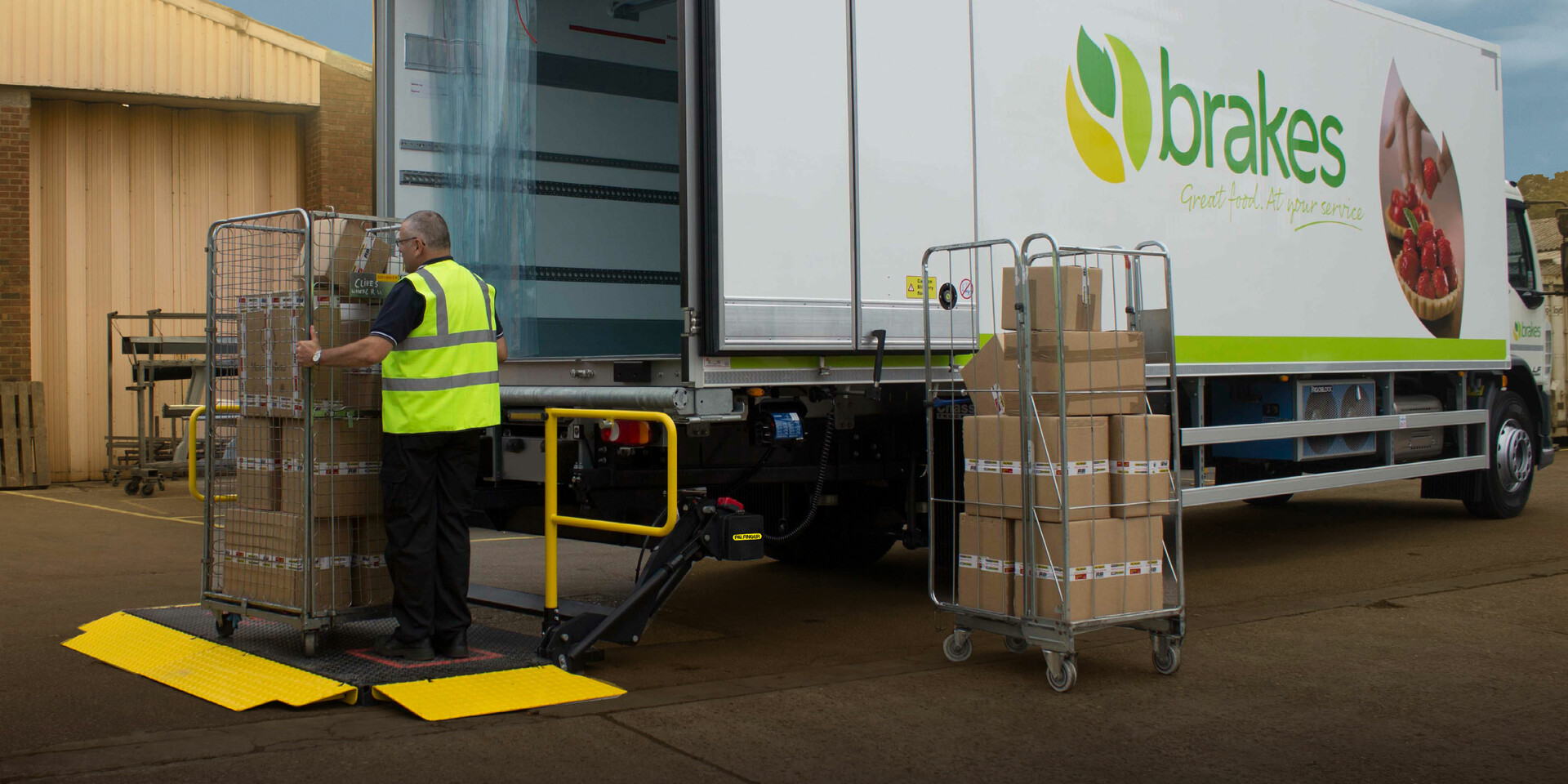

MBB R 1500 L FLAT
MBB R 1500 L FLAT
Tail Lift
| Lifting capacity | 1500 kg |
| Main beam | 180 x 180 mm |
| Lifting gear hydraulics | 2 x lifting cylinders / 1 x moving cylinder |
| Lift arm pitch /Lift arm length | 2180 mm |
| Load centre - lengthwise | 600 mm |
| Load centre - across center | 50 % of the full load on one side |
| Platform type | Platform width | platform height | Dead Weight | Dead Weight | |
|---|---|---|---|---|---|
| steel | 2330 | - | 690 | - |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| a (mm) | Q (kg) |
| 600 | 1500 |
| 720 | 1250 |
| 900 | 1000 |
| 1200 | 750 |
| Lift arms (in mm) | 900 | 1000 |
| H (max.) Loading height unloaded | 1300 | 1320 |
| H (min.) Loading height loaded | 780 | 800 |
| F (max.) Middle of main beam to upper edge of loading floor | 780 | 770 |
| K (min.) at dimension F (max.) | 360 | 414 |
| D (min.) Installation space behind rear wheel | 2074 | 2176 |
| F (min.) | 480 | 450 |
| K (max.) at dimension F (min.) | 670 | 790 |
| D (max.) Installation space (max.) | 2399 | 2464 |
| G (max.) Unloaded (middle of main beam to ground) | 520 | 550 |
| G (min.) loaded | 330 | 550 |
