7 - 17 t GVW

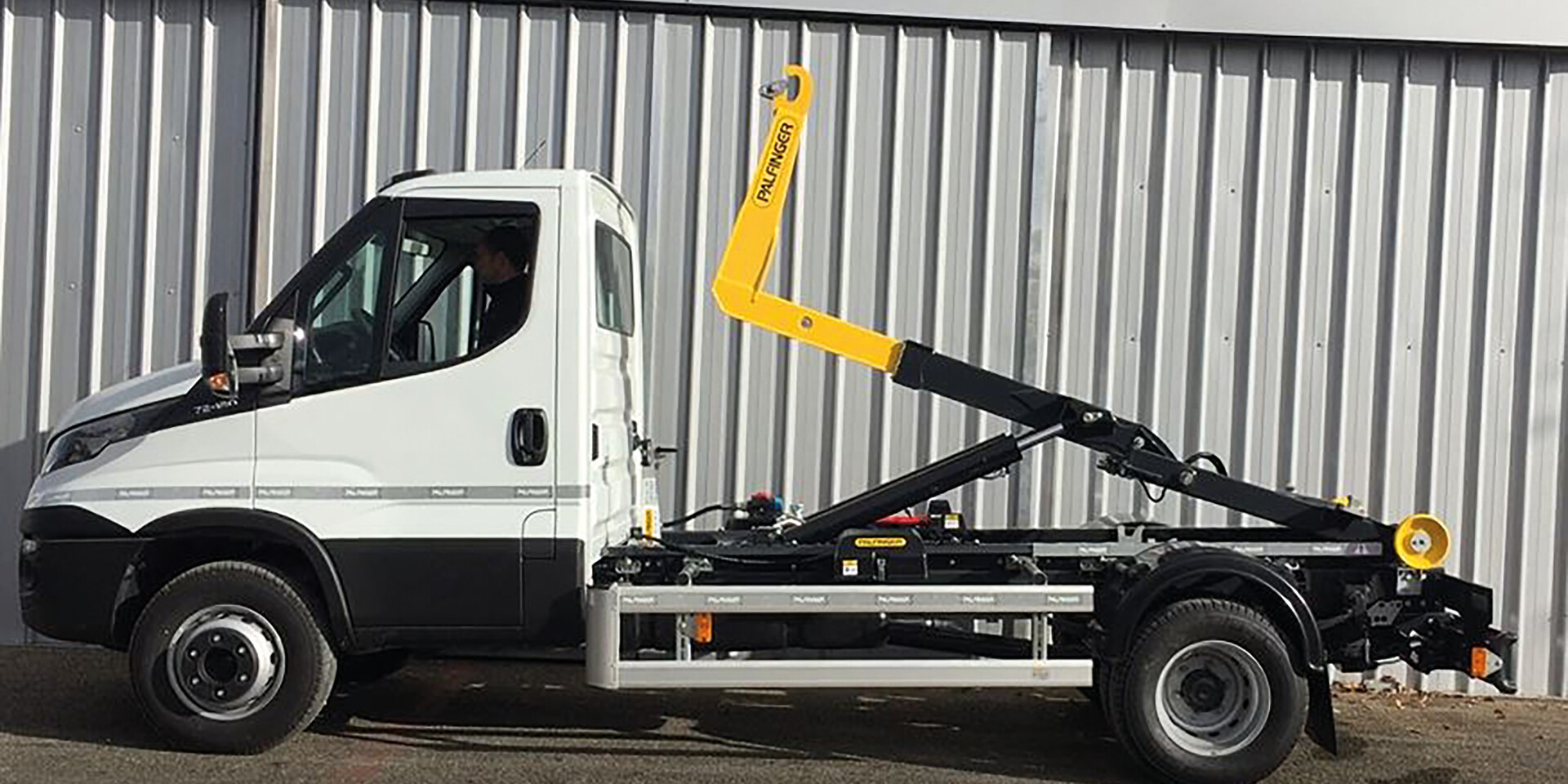

TELESCOPIC HT 05
TELESCOPIC
Hooklift
The HT 05 SLD can be installed on chassis from 5.5 to 7.5 t and is capable of handling containers up to 5 t in loading, unloading, trailer transfer and tipping.
Thanks to the telescopic jib, users will be able to handle a wide range of different container lengths and work on a variety of applications with the same vehicle. In addition, rental, transport or waste management companies increase the operating possibilities of their fleet.
With a low transport height, the HT 05 enables you to transport larger containers to increase the available volume. In addition, its light weight optimizes the available payload. Both benefits reduce the number of round trips required to complete a job, saving time and money.
The main components are sand-blasted, degreased, primer painted and final coated (according to customer specification) before assembling, all other parts are zinc nickel anticorrosion treated (meets ISO 12944 standard specifications concerning surface protection, classification 3).
PALFINGER offers corrosion protected and fully boltable mounting plates and accessories
| Unit length (mm) | Container max. length (mm) | Container min. length (mm) | Transport height | Weight (kg) | Tipping angle (°) |
|---|---|---|---|---|---|
| 3000 | 3400 | 2800 | 180 | 660 | 50 |
| 3150 | 3600 | 2800 | 180 | 665 | 50 |
| 3300 | 3800 | 3000 | 180 | 670 | 46 |
| 3600 | 4200 | 3200 | 180 | 685 | 48 |
| 3750 | 4400 | 3200 | 180 | 685 | 48 |
| 3900 | 4600 | 3400 | 180 | 685 | 45 |
