Knuckle Boom
PK 5.001 SLD 3

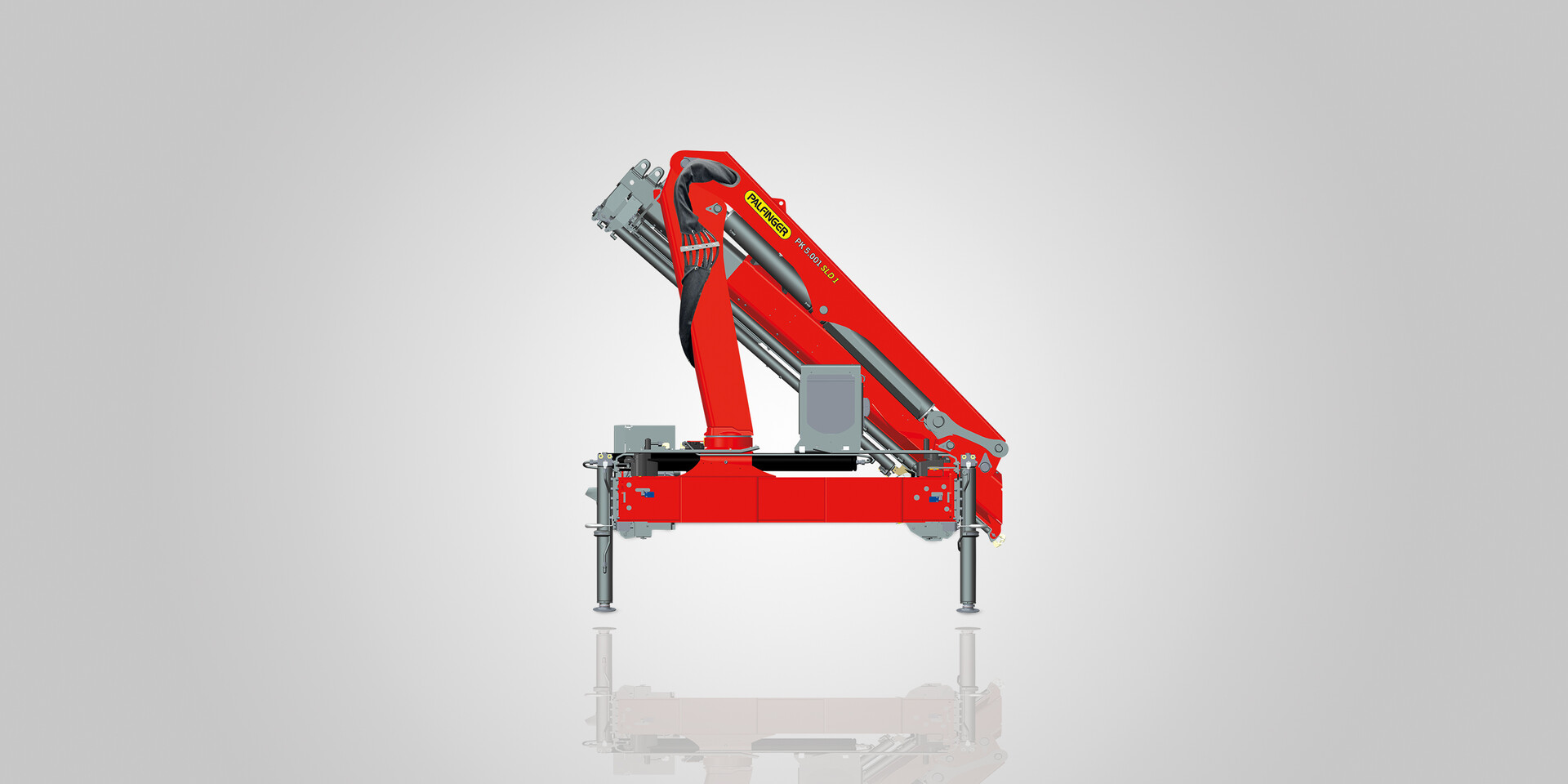

Knuckle Boom Crane
PK 5.001 SLD 3
| Max. lifting moment | 33281.0 ft lbs |
| Max. lifting capacity | 7300 lb |
| Max. hydraulic outreach | 36' 5'' |
| Max. manual outreach | 42' |
| Slewing angle | 400° |
| Slewing torque | 4350.0 ft lbs |
| Stabilizer spread (std) | 14' 3" |
| Fitting space required (std) | 2' 2'' |
| Width folded | 6' 11'' |
| Max. operating pressure | 4785 psi |
| Pump capacity | 4.0 - 6.6 gpm |
| Dead weight (std) | 1530 lbs |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| Max. lifting moment | 4.6 mt |
| Max. lifting capacity | 3300 kg |
| Max. hydraulic outreach | 11.1 m |
| Max. manual outreach | 12.7 m |
| Slewing angle | 400° |
| Slewing torque | 0.6 mt |
| Stabilizer spread (std) | 2.9 m |
| Fitting space required (std) | 0.66 m |
| Width folded | 2.10 m |
| Max. operating pressure | 330 bar |
| Pump capacity | 15 - 25 l/min |
| Dead weight (std) | 695 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (ft_lbs) |
Outreach |
Slewing angle (°) |
Slewing torque (ft_lbs) |
Pressure (psi) |
Pump capacity (gpm) |
Crane Weight (lbs) |
Crane Height (inch) |
Crane Width (inch) |
Installation Width (inch) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 33281.0 | 17' 5" | 400 | 4350 | 4786.0 | 4.0 - 6.6 | 985 | 64.96 | 82.68 | 25.98 |
| A | 31834.0 | 23' 7" | 400 | 4350 | 4786.0 | 4.0 - 6.6 | 1091 | 64.96 | 82.68 | 25.98 |
| B | 31111.0 | 42' | 400 | 4350 | 4786.0 | 4.0 - 6.6 | 1190 | 64.96 | 82.68 | 25.98 |
| C | 29664.0 | 42' | 400 | 4350 | 4786.0 | 4.0 - 6.6 | 1279 | 64.96 | 83.27 | 25.98 |
|
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 4.6 | 5.3 | 400 | 0.6 | 33.0 | 15-25 | 695 | 1830 | 2100 | 660 |
| A | 4.4 | 7.2 | 400 | 0.6 | 33.0 | 15-25 | 765 | 1830 | 2100 | 660 |
| B | 4.3 | 9.2 | 400 | 0.6 | 33.0 | 15-25 | 830 | 1845 | 2100 | 660 |
| C | 4.1 | 11.1 | 400 | 0.6 | 33.0 | 15-25 | 890 | 1885 | 2115 | 660 |

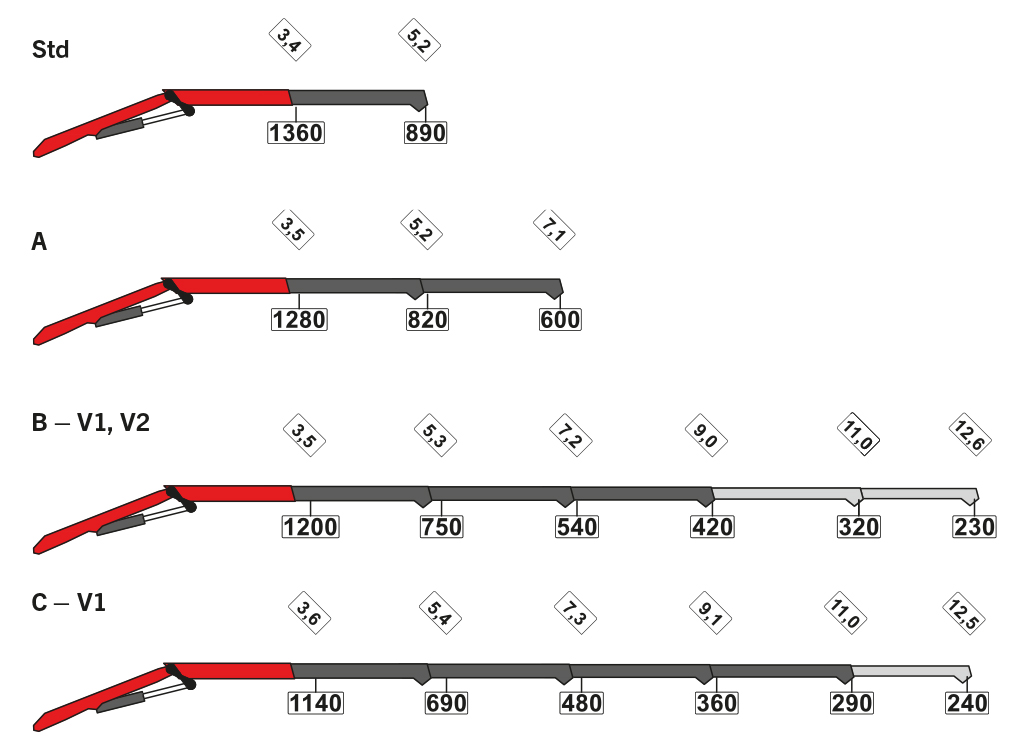

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
