Knuckle Boom
PK 11.001 SLD 3

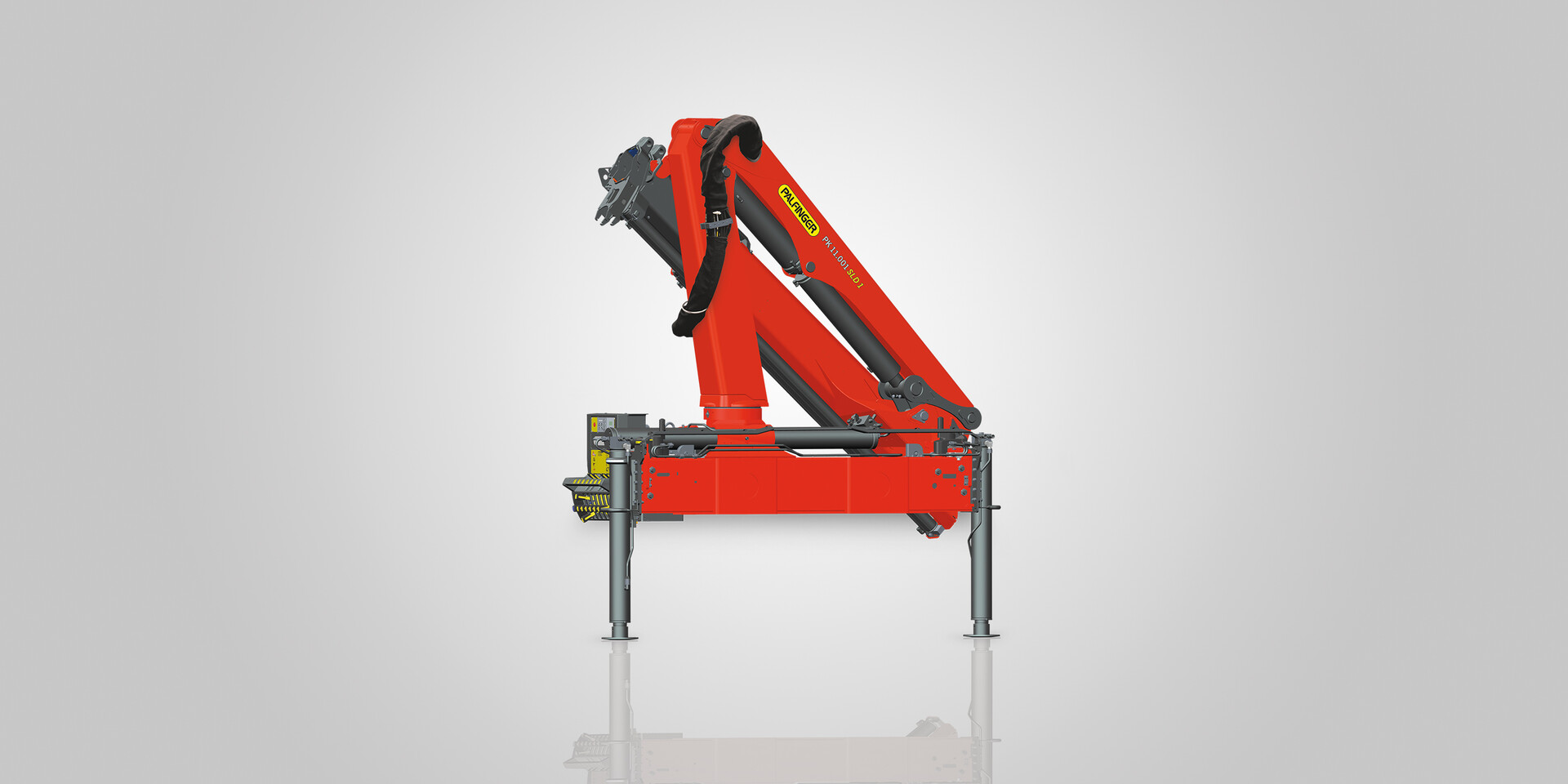

Knuckle Boom Crane
PK 11.001 SLD 3
| Max. lifting moment | 74740.0 ft lbs |
| Max. lifting capacity | 12570 lb |
| Max. hydraulic outreach | 39' 6'' |
| Max. manual outreach | 53' |
| Slewing angle | 400° |
| Slewing torque with 1 gear | 9370.0 ft lbs |
| Stabilizer spread (std) | 16' |
| Fitting space required (std) | 2' 4'' |
| Width folded | 7' 7'' |
| Max. operating pressure | 4785 psi |
| Pump capacity | 7.9 - 11.9 gpm |
| Dead weight (std) | 2510 lbs |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| Max. lifting moment | 10.3 mt |
| Max. lifting capacity | 5700 kg |
| Max. hydraulic outreach | 12.0 m |
| Max. manual outreach | 15.9 m |
| Slewing angle | 400° |
| Slewing torque with 1 gear | 1.3 mt |
| Fitting space required (std) | 0.72 m |
| Width folded | 2.32 m |
| Max. operating pressure | 330 bar |
| Pump capacity | 30 - 45 l/min |
| Dead weight (std) | 1140 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (ft_lbs) |
Outreach |
Slewing angle (°) |
Slewing torque (ft_lbs) |
Pressure (psi) |
Pump capacity (gpm) |
Crane Weight (lbs) |
Crane Height (inch) |
Crane Width (inch) |
Installation With (inch) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 74521.0 | - | 400 | 9370 | 4785.0 | 7.9 - 11.9 | 2510 | 83.07 | 94.49 | 27.56 |
| A | 72350.0 | 40' | 400 | 9370 | 4785.0 | 7.9 - 11.9 | 2760 | 83.07 | 94.49 | 27.56 |
| B | 69456.0 | 46' | 400 | 9370 | 4785.0 | 7.9 - 11.9 | 2980 | 83.07 | 94.49 | 27.56 |
| C | 67286.0 | 53' | 400 | 9370 | 4785.0 | 7.9 - 11.9 | 3200 | 83.07 | 94.49 | 27.56 |
|
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation With (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 10.3 | 5.8 | 400 | 1.3 | 33.0 | 30-45 | 1140 | 2110 | 2400 | 720 |
| A | 10.0 | 7.8 | 400 | 1.3 | 33.0 | 30-45 | 1250 | 2110 | 2400 | 720 |
| B | 9.7 | 9.9 | 400 | 1.3 | 33.0 | 30-45 | 1350 | 2110 | 2400 | 720 |
| C | 9.5 | 12.0 | 400 | 1.3 | 33.0 | 30-45 | 1450 | 2110 | 2400 | 720 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
