CC 80
Container Carriers
Basic Carrier

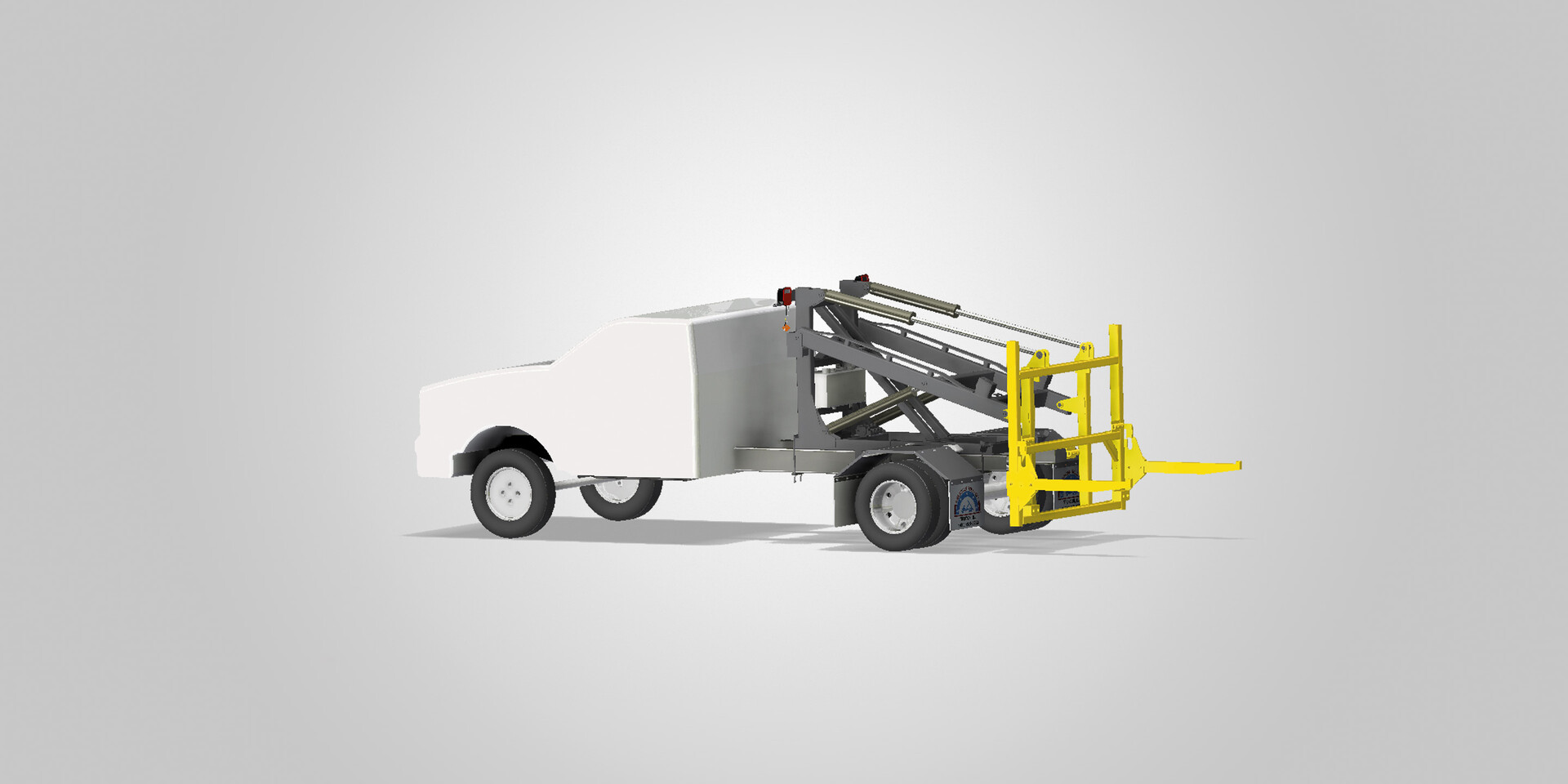

The model CC 80 container carrier is designed to easily load, unload or transport front load containers ranging from 2 to 8 cubic yards. The carrier can be mounted on a minimum 16,000 lb. GVWR chassis and 60" CA. Containers can be transported individually or using the container carrier, can load multiple containers on a flatdeck trailer for transporting to a job site. Two function cable controls are located in the cab. The carrier's fork are bolt on for ease of replacement.
OPTIONS INCLUDE:
- 62" Forks
- Inside Air Controls
technicaldata.containercarrier_Capacity_lb | 8000 lb |
Rotating capacity (360° bi-rotational) | N/A |
technicaldata.containercarrier_WeightApprox_lb | 2550 lb |
Forks (heat treated - bolt on) | 1-1/2" x 48" |
Control valve | 2 spools |
technicaldata.containercarrier_Operatingpressure_psi | 2500 psi |
Hydraulic tank | 10 gal. |
Lift cylinders | 3-1/2" |
Tilt Cylinders | 4" |
Optimum C/A | 84" |
technicaldata.containercarriers_RecommendedGVWR_lb | 24000 lb |
Container sizes | 2-10 cu. yd. |
technicaldata.containercarriers_ShippingWeight_lb | 2550 lb |
technicaldata.containercarrier_Capacity_lb | 3628 kg |
Rotating capacity (360° bi-rotational) | N/A |
technicaldata.containercarrier_WeightApprox_lb | 1156 kg |
Forks (heat treated - bolt on) | 1-1/2" x 48" |
Control valve | 2 spools |
technicaldata.containercarrier_Operatingpressure_psi | 2500 psi |
Hydraulic tank | 37.8 l |
Lift cylinders | 3-1/2" |
Tilt Cylinders | 4" |
Optimum C/A | 84" |
technicaldata.containercarriers_RecommendedGVWR_lb | 24000 lbs |
Container sizes | 2-10 cu. yd. |
technicaldata.containercarriers_ShippingWeight_lb | 1156 kg |
