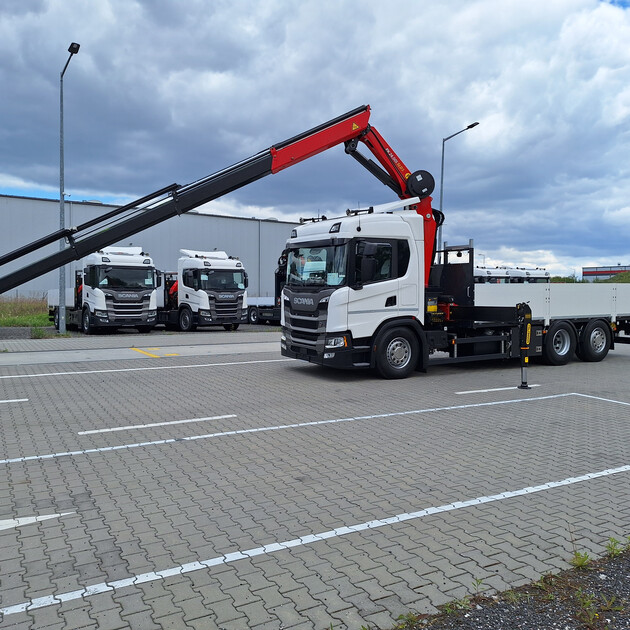

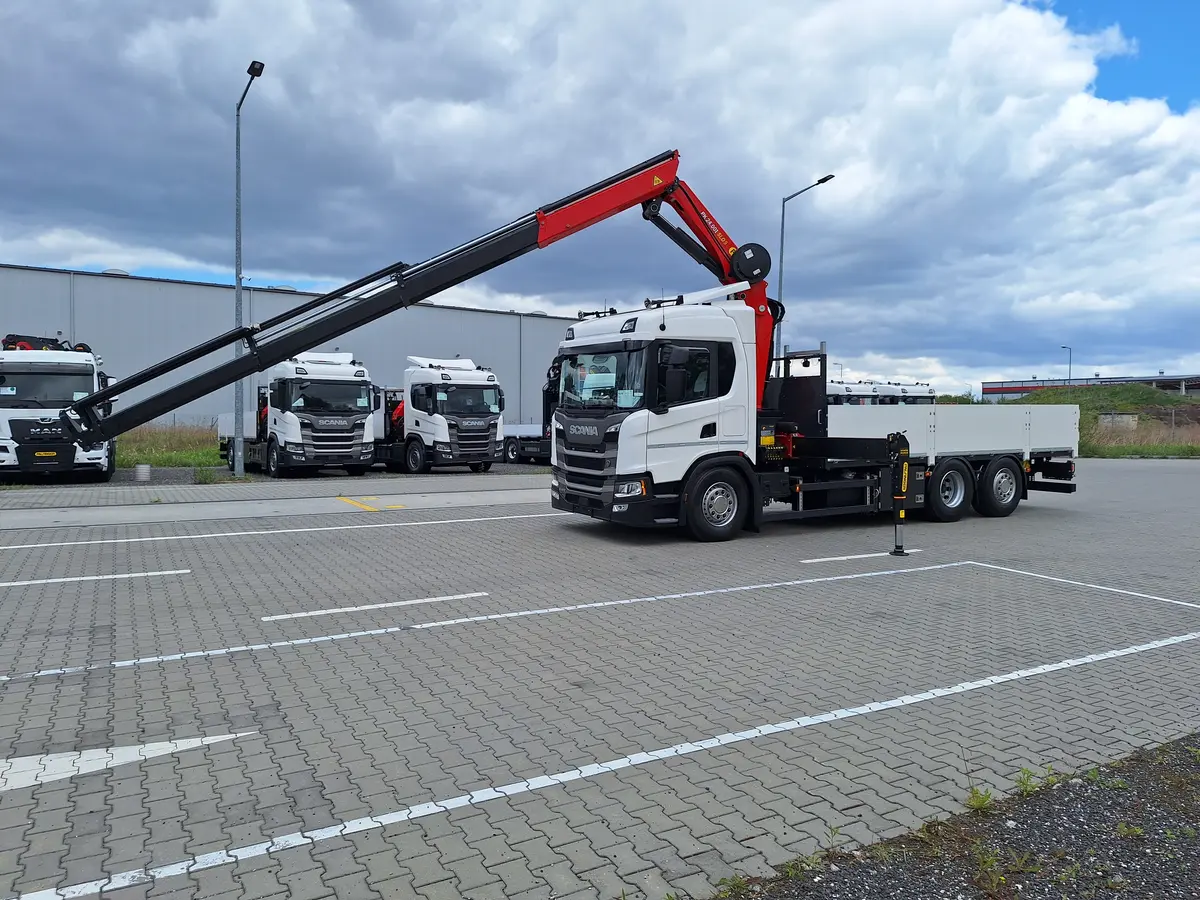

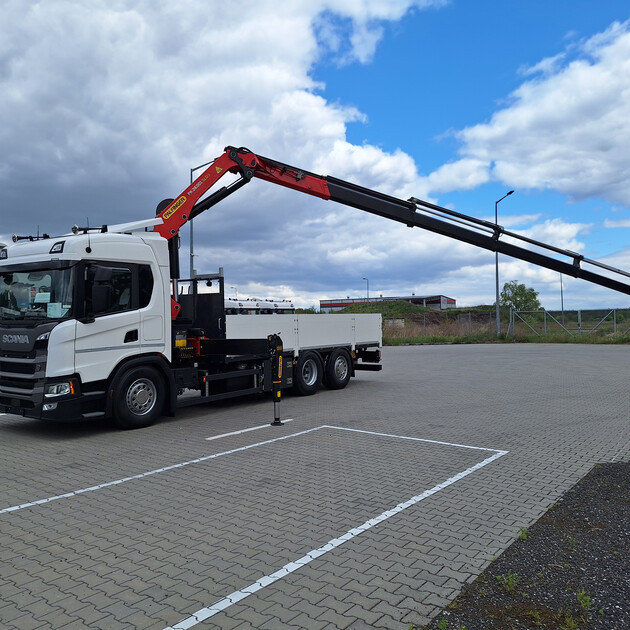

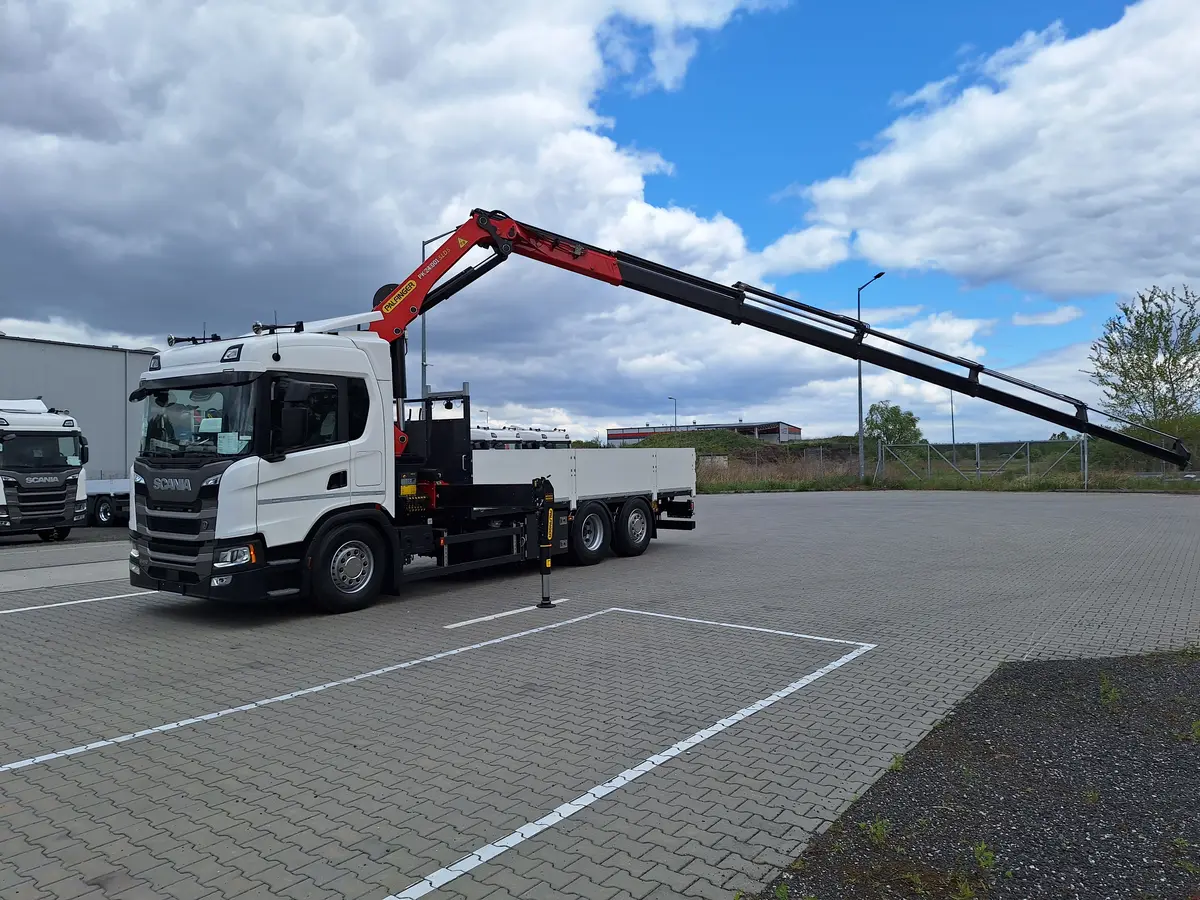

PK 24.001 SLD5

Specification

PK 24.001 SLD5

- Hydraulic 5-fold extension

- High-speed extension system with return oil recovery

- Swivel range 400^o

- Hydraulic support leg extension (max.support width 5,600mm)

- Support legs can be swiveled hydraulically through 180^o

- Paltronic 40

- HPSC-E + LOAD + additional ballast function (LCA03)

- Transport monitoring crane and support

- Scanreco radio remote control - 6  functions with cross levers

- Painting RAL3020

- Working lights on the articulated arm

- Hose equipment for two additional devices

- Piston rod protection for the articulated cylinder

- 8.0t load hook

Platform

- internal dimensions 6.200mm x 2.480mm

- Multifunctional frontwall height: 1650mm + 650mm extension

- Side and rear wall height: 750 mm

- Left and right 2 folding steps each

- 6 rows of lashing rails integrated in the floor

- Flat bottom 27mm plywoodplates



SCANIA

- G 420 B6x2*4 NB

- 420 HP

- G25CM1 Gearbox + opticruise

- Retarder R4700D

- Air suspension on all axles

- Fuel tank 355l / AD blue 80l

- Tires 1st and trailing axle 385/65 R22.5

- Drive axle tires 315/80 R22.5

- Cabin color: Ivory White / Chassis color: Sub Grey
