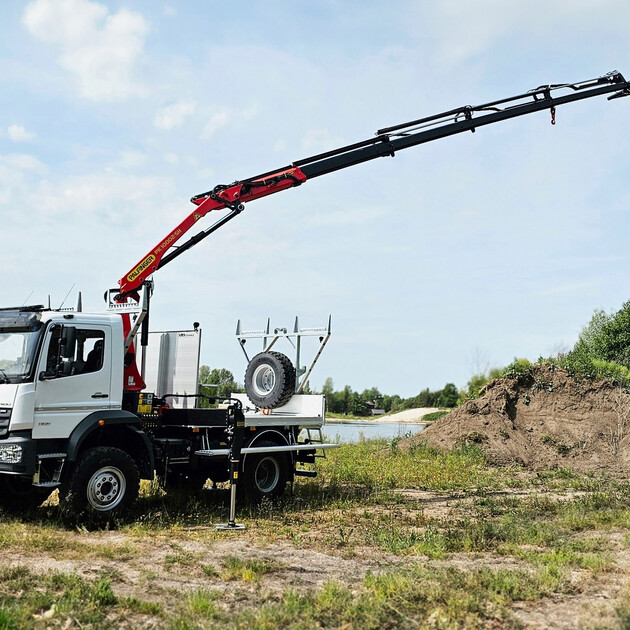

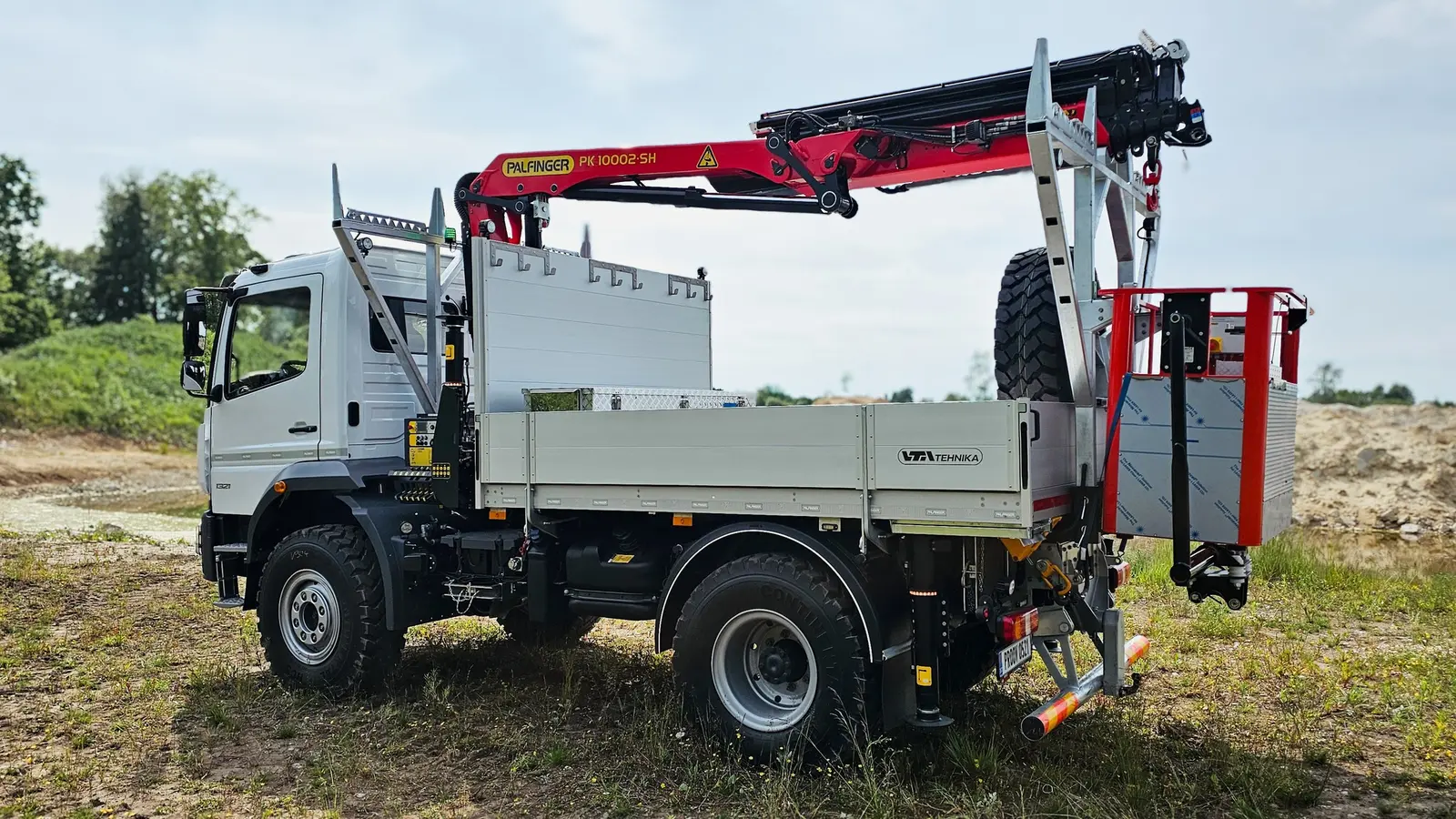

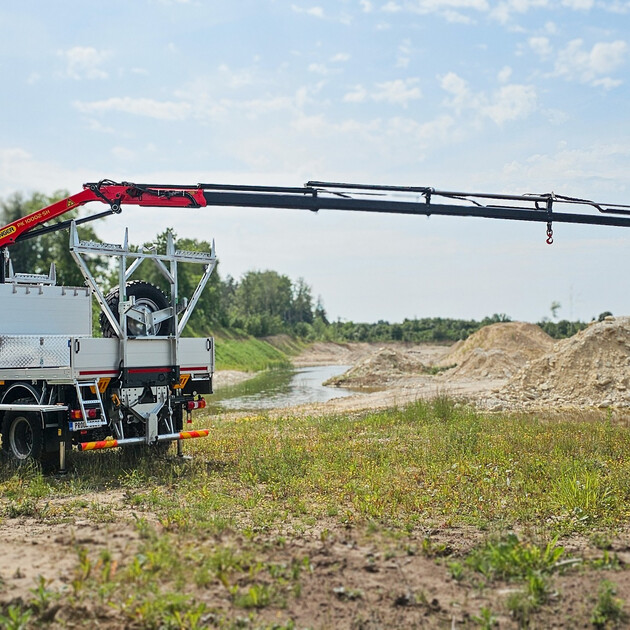

PK 10002 SH
Specification
Crane specification:
- 4-section hydr. extension boom
- Outriggers hydraulic, medium
- Stabilizer legs 180° hydr. tiltable
- Stability system HPSC
- HPSC-Plus module Load
- Hose equipment
- Quick release coupling
- Multifunctional adapter
- Port relief valves
- PALcom P7 radio remote control
- Acceleration +/- and engine start stop
- Working light
- Oil cooler 8,5kW, mounted
- Oil tank 100 l
- Bosch Rexroth hydraulic pump(LS)

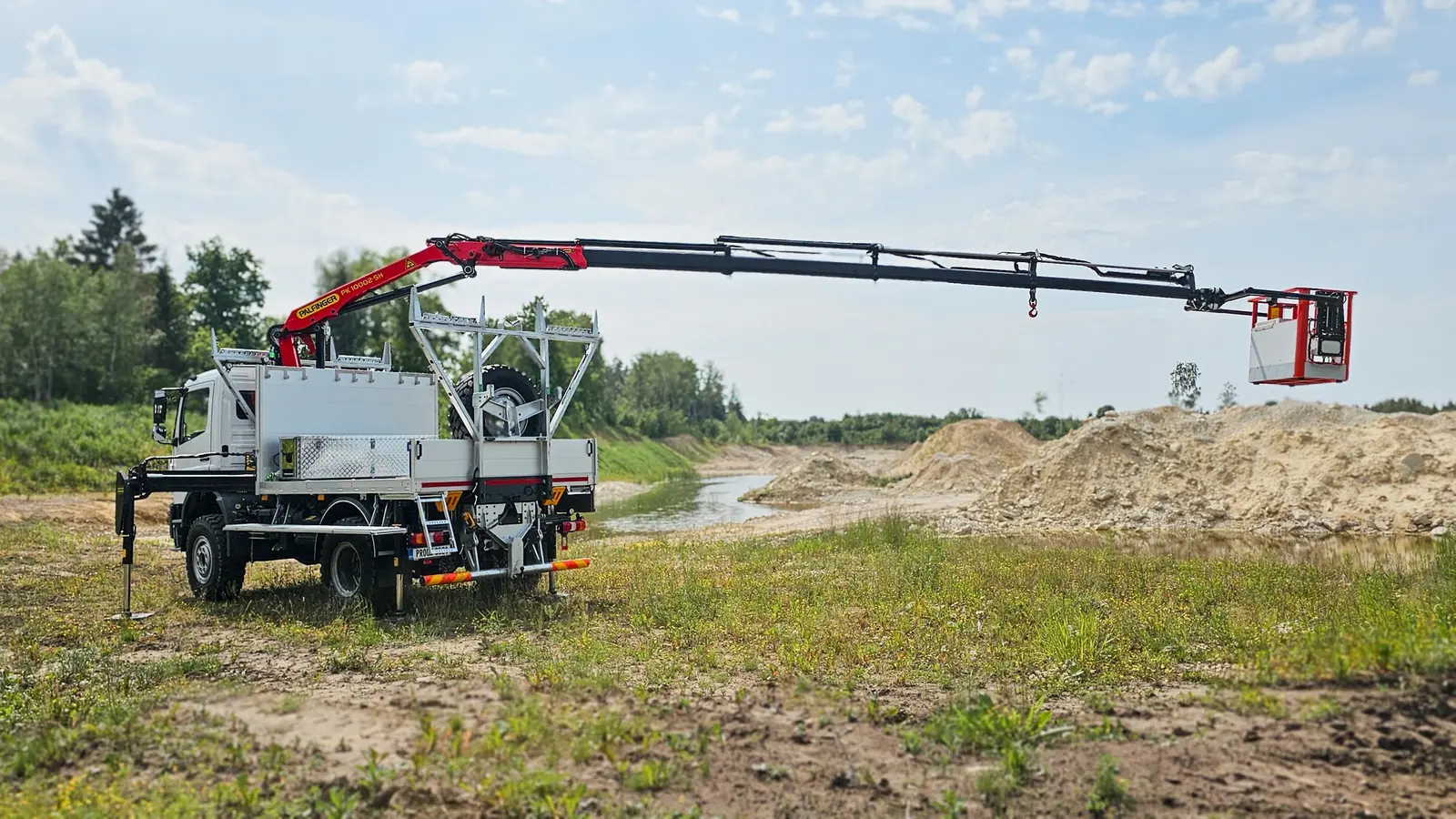

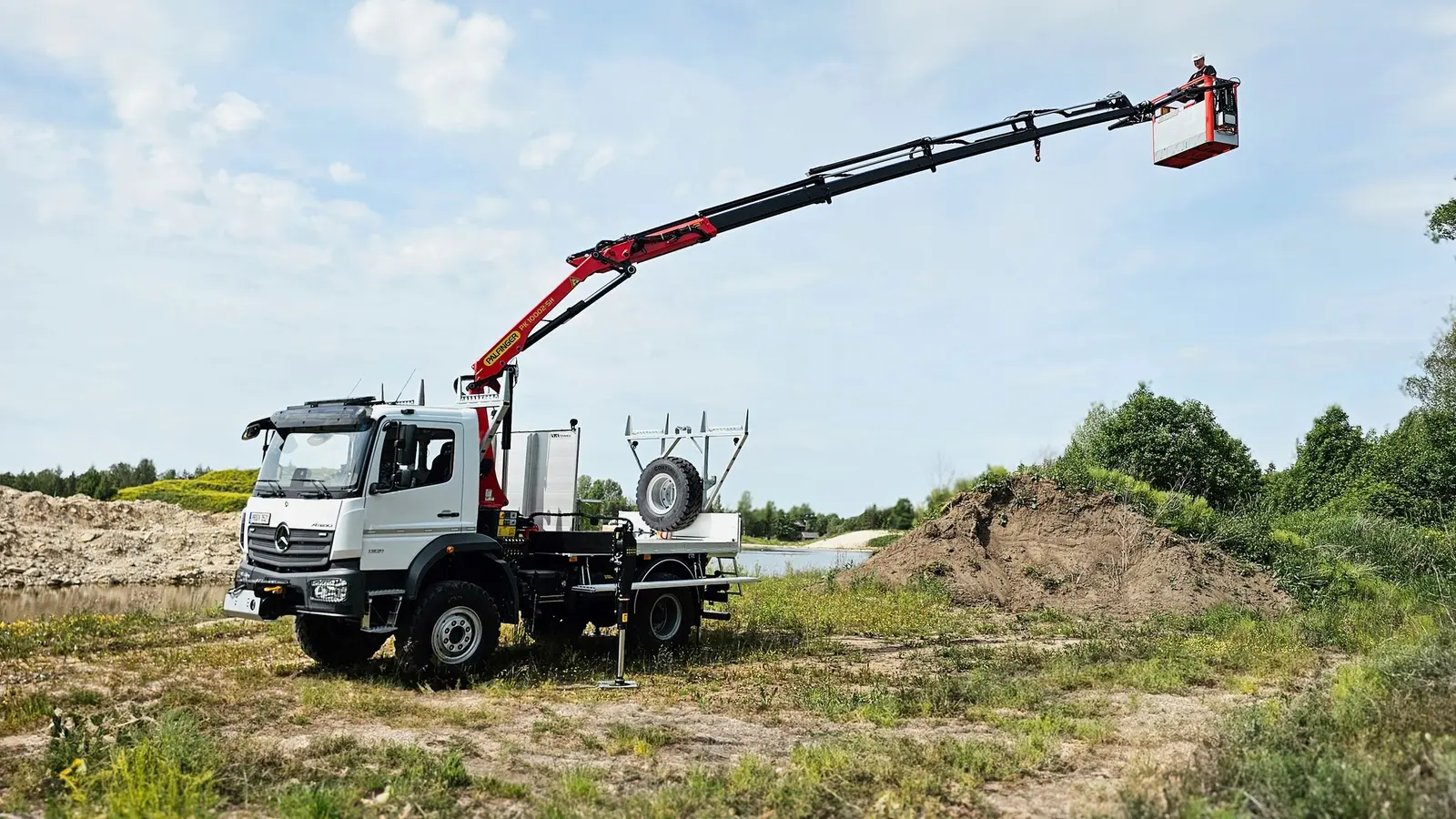

- Workman basket BB040 MFA
- BS001 rear stabilizers
- Crating
Superstructure:

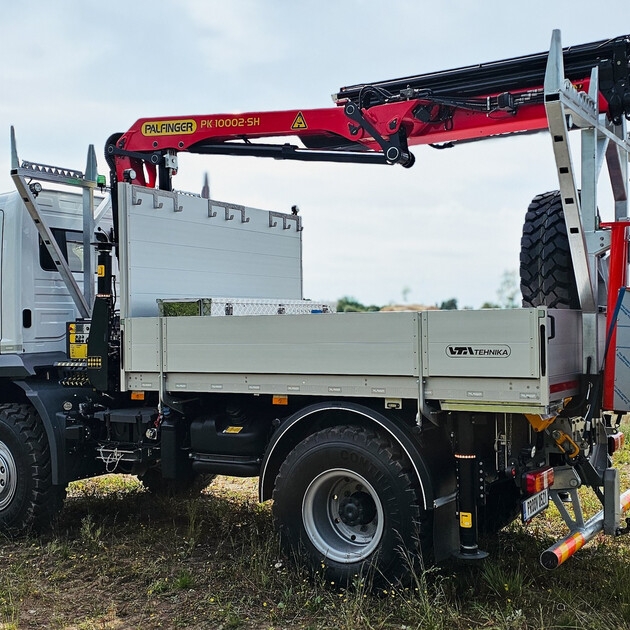

- platform:
- internal length approx. 3,100 mm
- internal width approx. 2,480 mm
- front wall height: 1,000 mm
- side height: 400 mm
- right side opens from top to bottom
- left side door opens horizontally
- platform floor: non-slip aluminum profiles
- eyelets in the front wall for attaching chains and slings
- ladders for accessing the platform at the rear of the truck 2 pcs
- load securing eyeletes on the left and right in the platform side profiles
- pole holders in front and rear of the platform, removable 2 pcs
- installation of stabilizer plate holders with plates 4 pcs
- mudguards installed on the rear axle with mudflaps
- LED working lights(Nordiclights) delivery and installation 10 pcs.
- LED flashing lights delivery and installation 6 pcs
- LED flashing light panel on the roof
- PIAA LED high beam panel V-RF20 installed on the roof of the truck 2 pcs
- installation of side marker lights
- load sensing hydraulic system (LS)
- assembly and connection of hydraulics and electricity

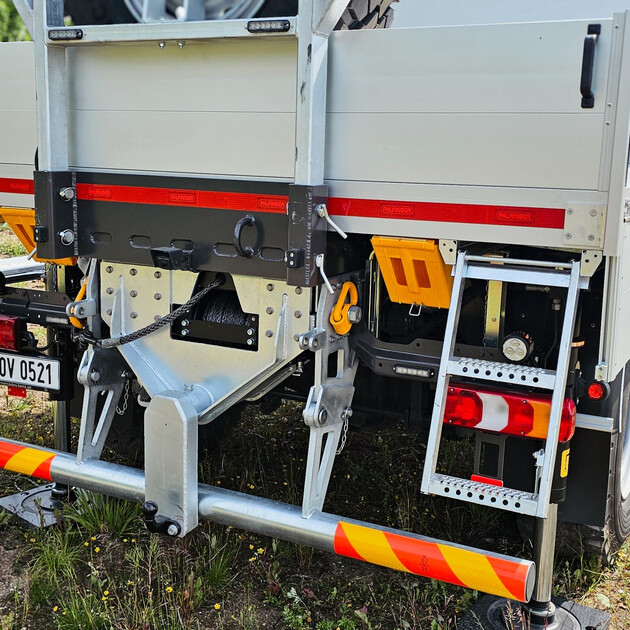

- hydraulic winch Starter 8.5 HY (synthetic rope) installed in the front and rear of the truck
- removable toolbox installed in the front of the truck platform
- emergency descent Powerpack
- stainless steel crankcase protection

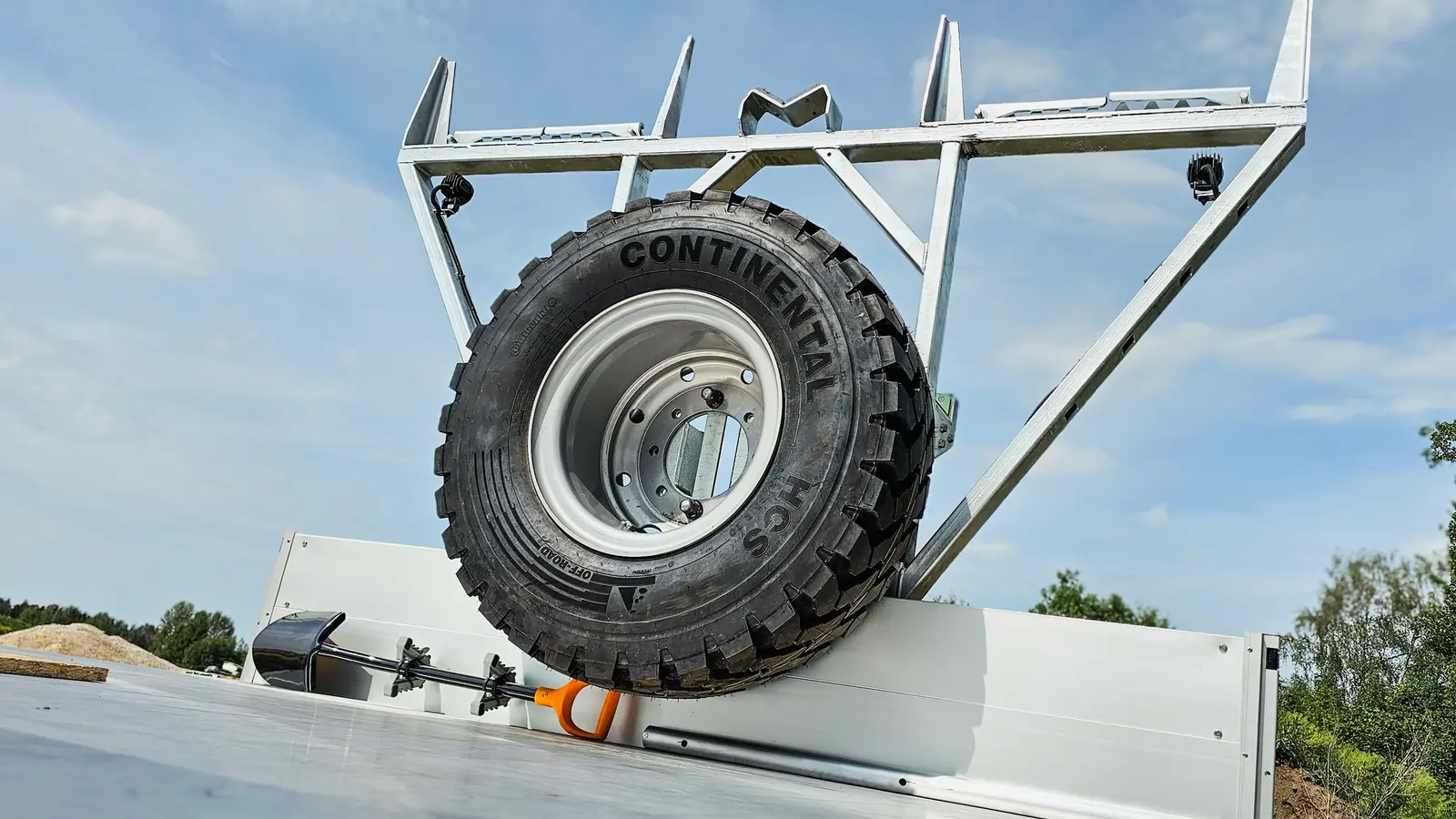

- spare wheel holder with spare wheel 365/85R20

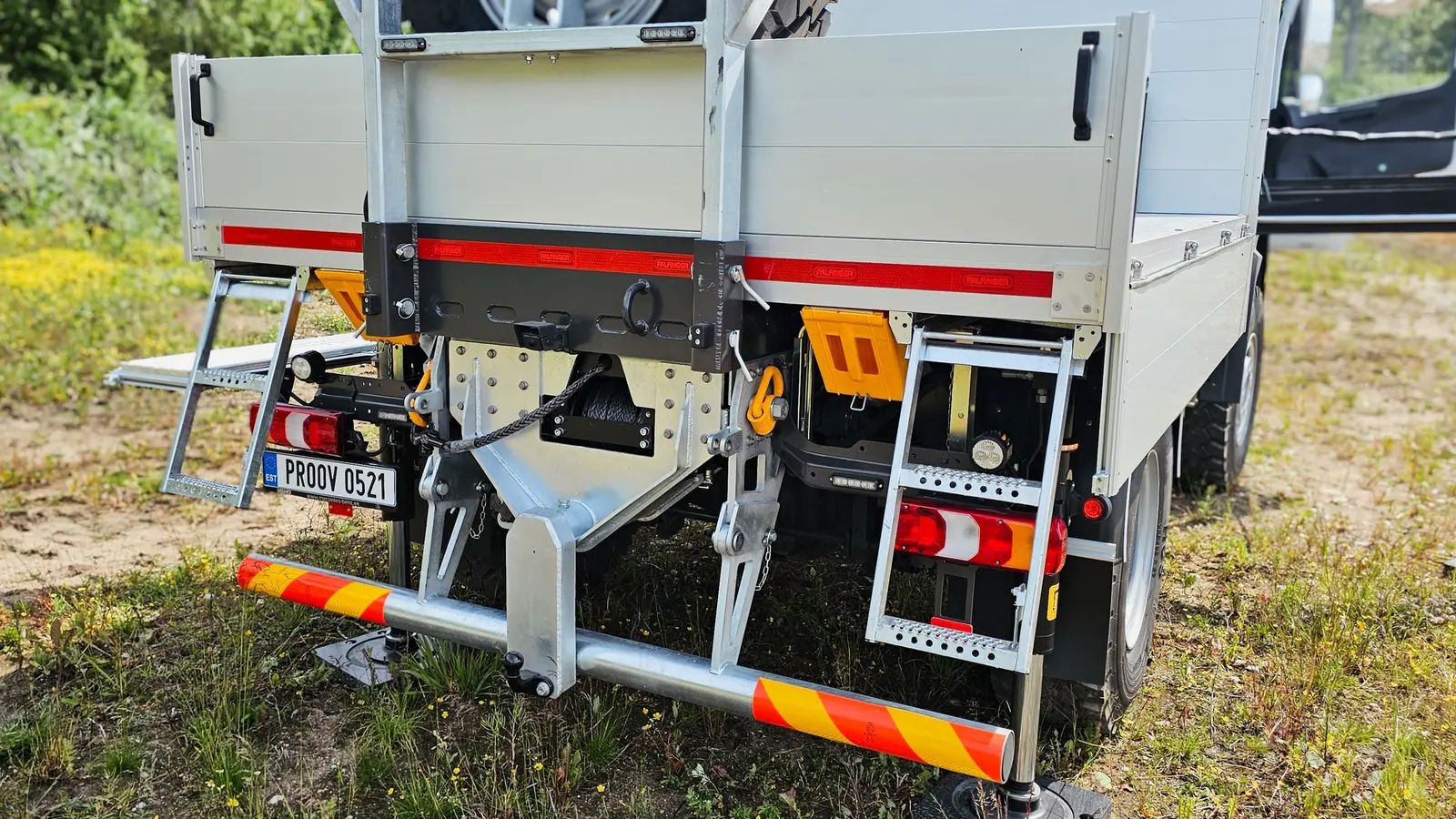

- liftable rear underrun protection
- removable trailer hitch
Vehicle specification:
Mercedes-Benz Atego 1321 A 4x4 Single Wheel
- Engine type: OM 934
- Power: 211 hp / 155 kW 850 Nm
- Emission class: Euro 6E
- Transmission: Manual
- Fuel tank: 120 l, AD-BLUE: 25 l
- Suspension: leaf spring front - leaf spring rear
- Wheelbase: 3,260 mm
- Cab type: ClassicSpace S-cab, 2.30 m, tunnel
- Gross vehicle weight: 13,100 kg
- Dead weight: 9,435 kg
- Payload: 3,665 kg
- Tyres 1st and 2nd on axle: 365/85R20
- Year of construction: 2025
- Cab color: White
