Mercedes

PK23500

Mercedes Arocs 3340 6x4
  • new
  • On request

Specification

TRUCK

  • AROCS 3340 6x4
  • Wheelbase: 4600mm
  • Performance: 290 kW Euro3
  • Maximum weight front axle: 9.000 kg
  • Maximum weight rear axle: 26.800 kg
  • Payload: 18 Tn
  • Configured to local market

LOADER CRANE:

  • PK23500
  • Adapted to local market (NON CE & less electronics)
  • Lifting moment: 23,0 mt/226,0 kN
  • Outreach / Lifting power: 10,1m/2040kg
  • Extension B (10,1 meters)optimal outreach
  • No need of additional stabilizers
  • Coating technology KTL
  • High-speed extension
  • Low-maintenance extension system

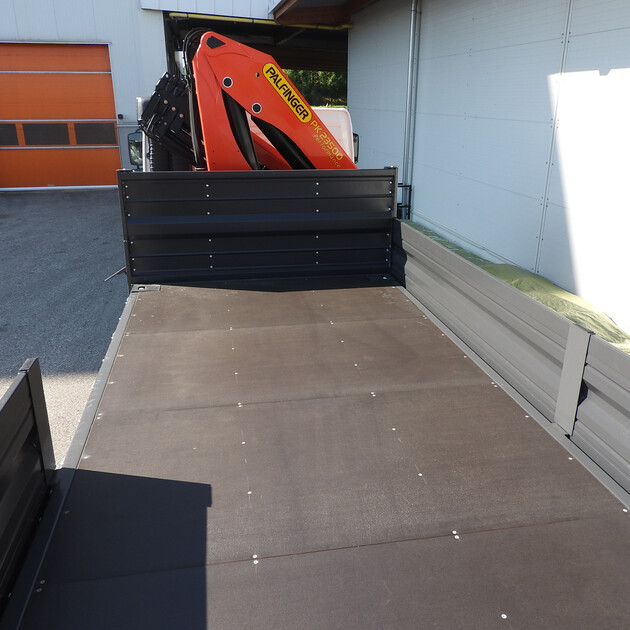

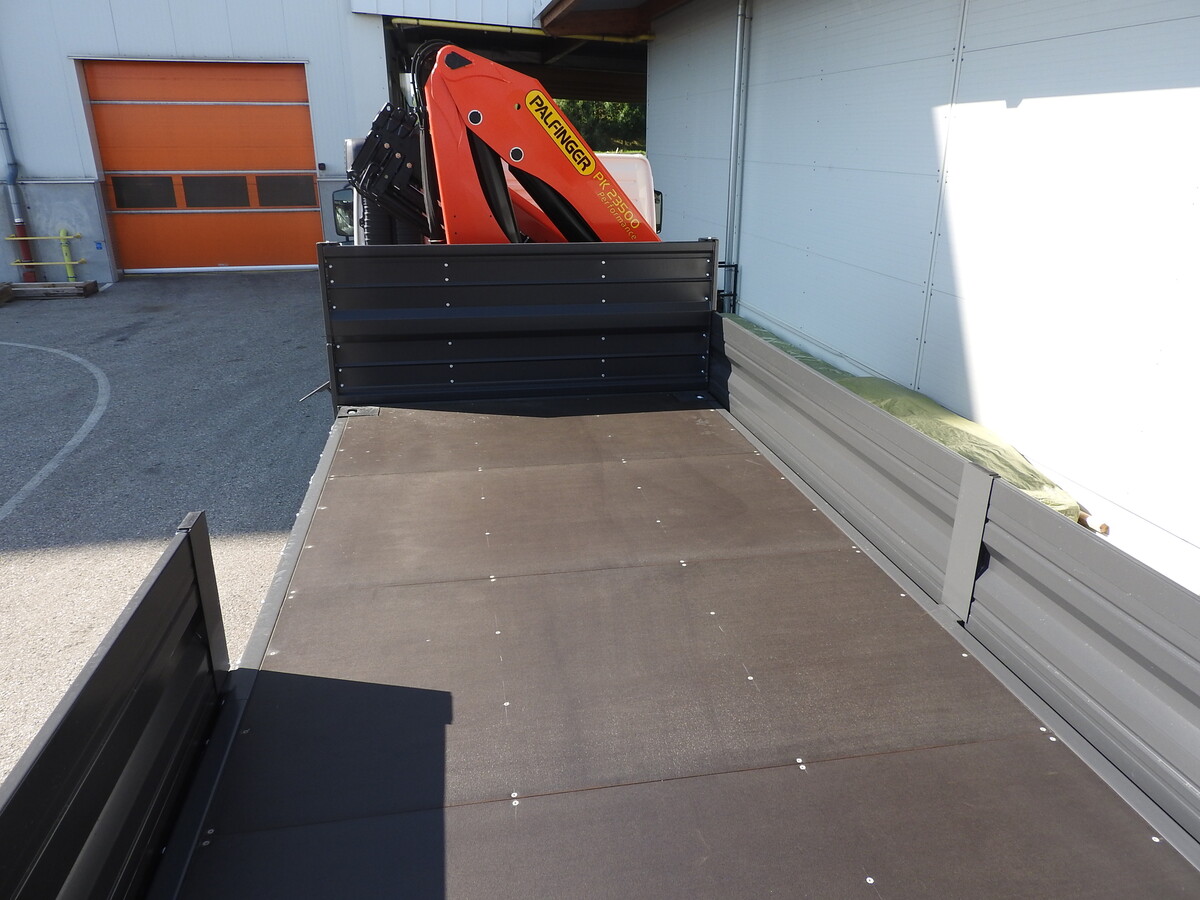

Raw installation PK-crane 18-30mt, LKW-base, front: customized Installation of platform with side and tail boards acc. to following specification:

  • - platform floor made of steel checker plate
  • - Inner dimension 6.500mm x 2.480mm
  • - Height of front board 1.500 mm
  • - Height of side and tail boards 600 mm
  • - Boards made of steel profiles 33mm
  • - all steel parts sandblasted, primed and painted

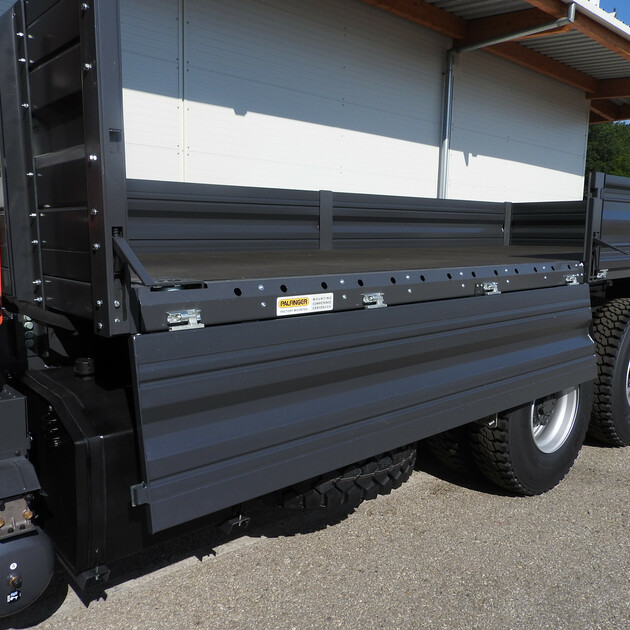

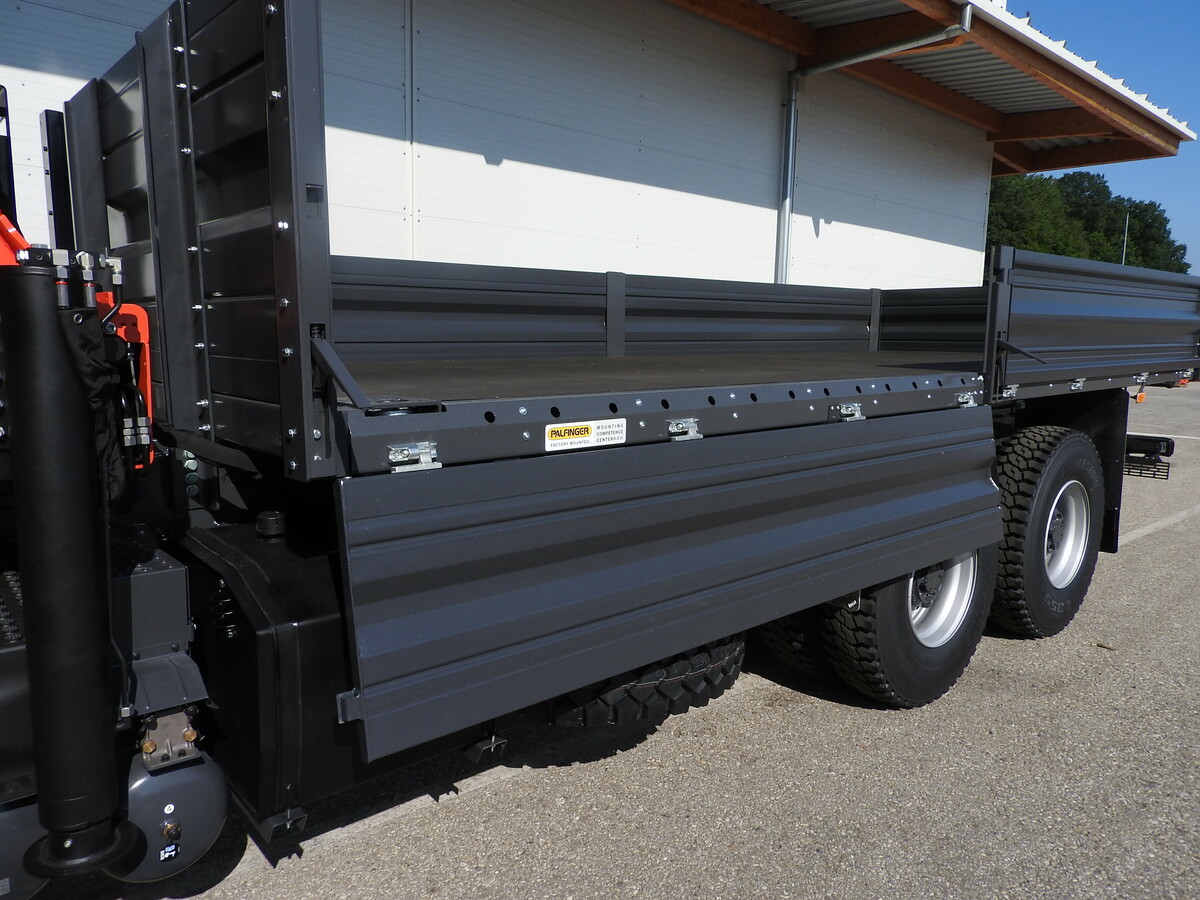

  • - Side boards divided in three parts, with 2 middle-pillars foldable and detachable

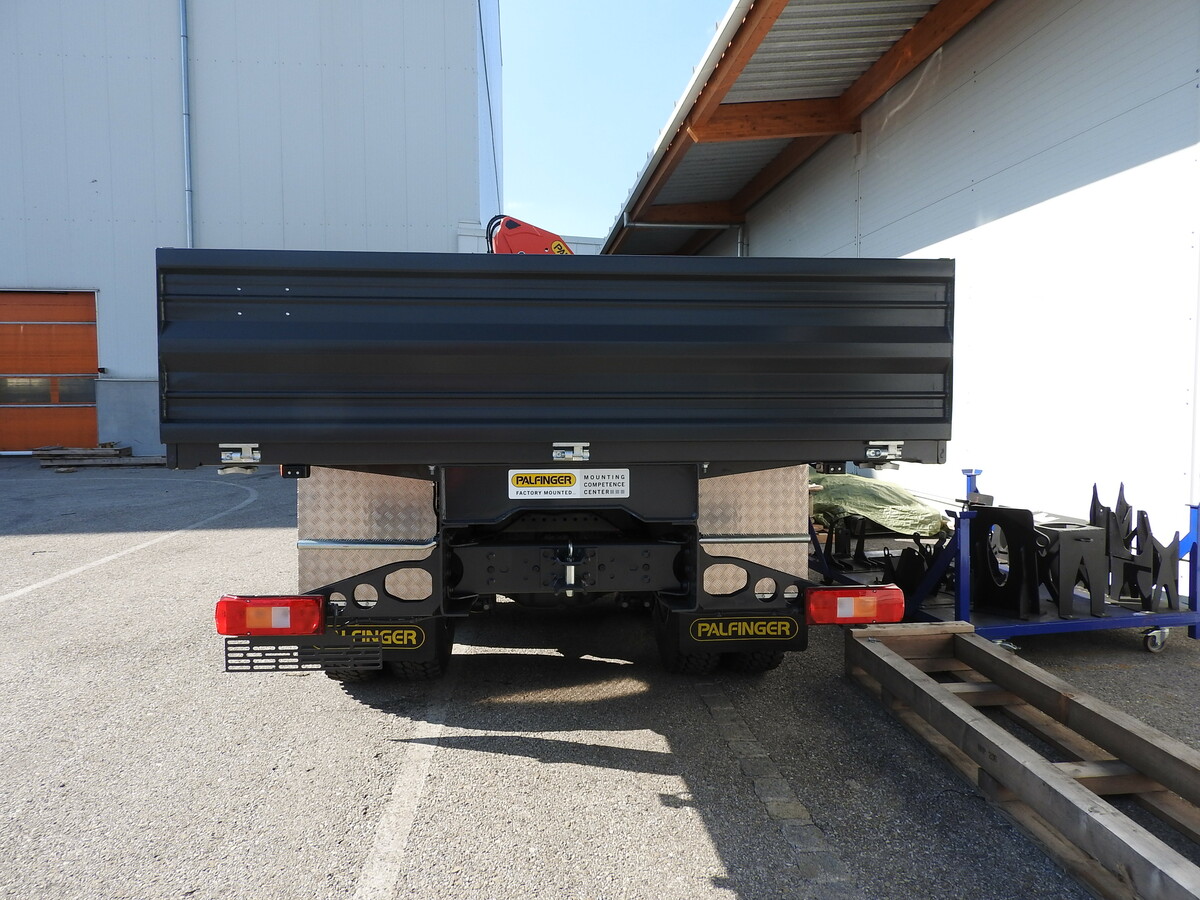

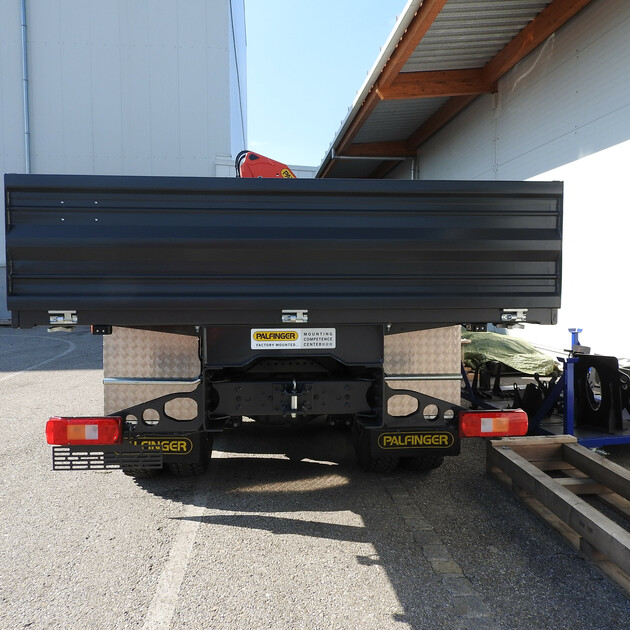

  • - rear wall foldable and detachable
  • - middle and rear pillars detachable
  • - all walls with rubber stop when opened

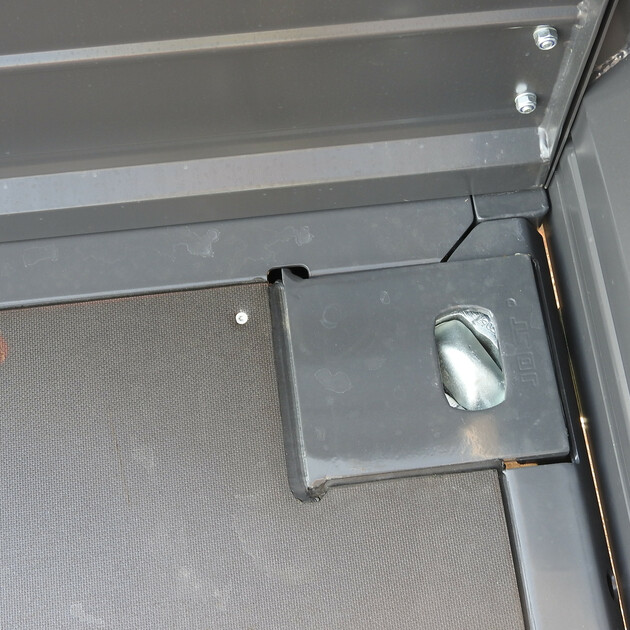

  • - Lashing point only in the side frame of the platform (app. all 280mm)
  • - step up in side wall at the left rear side
  • - Installation of a provided stabilizer plate holder

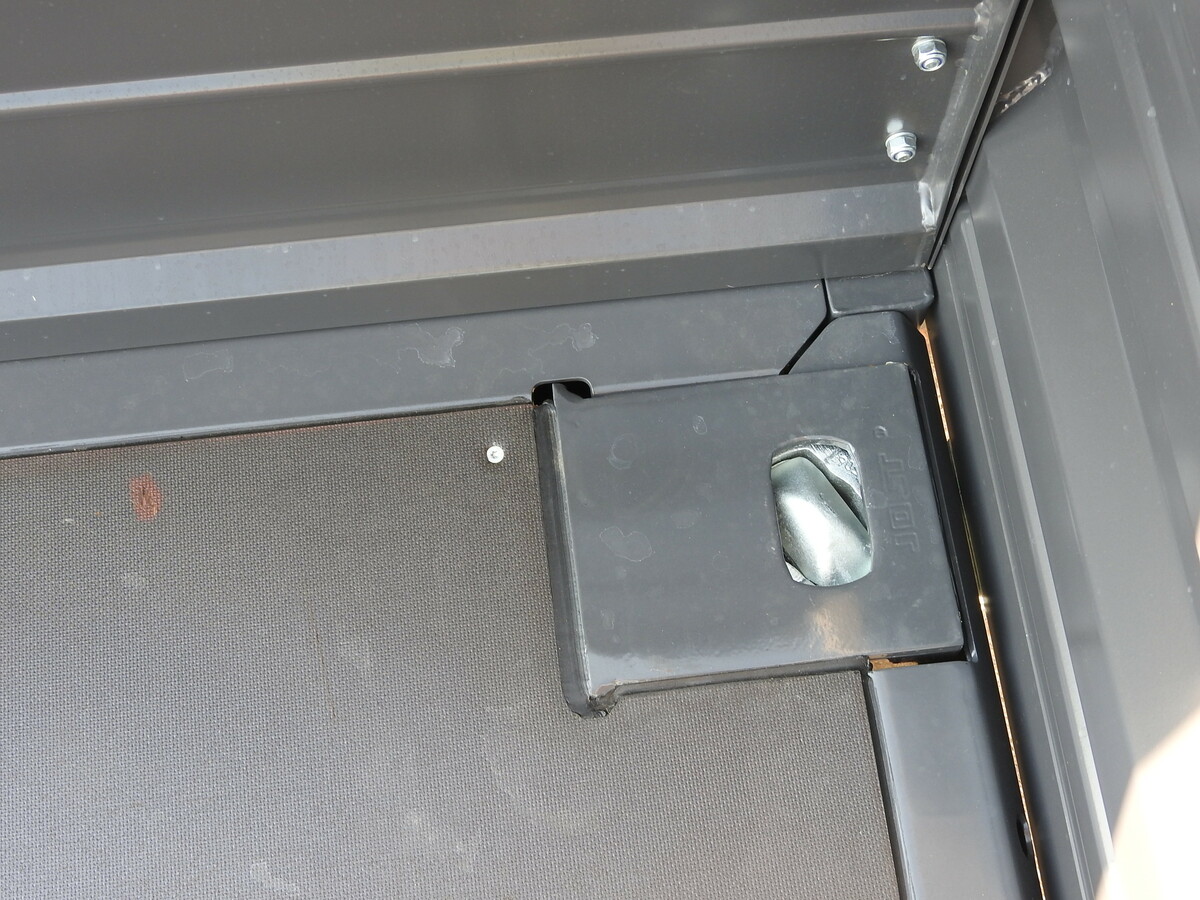

Two pairs of JOST-container locking mechanisms for ISO-container

  • - mounted on extensions lateral on the subframe.

Offer

KPPK23500M2ENAnsicht.pdf
1.31 MB
Download

Offer information

Location details
Köstendorf, 5203 - Austria Austria
Dealer details
PALFINGER EMEA GmbH
Dealer E-mail
sales@palfinger.com
Dealer phone
004366488345792
Availability
On request
Product type
new

Truck

Axes 6x4
Payload category >26t
Construction Crane and tipper

Attachment

Lifiting Capacity

LOADING DIAGRAM_2.pdf
0.42 MB
Download

Brochure

KPPK23500M2ENAnsicht_3.pdf
1.31 MB
Download

Truck data

Offre Externe_Arocs 5 3340 K 6x4 BG13 - F1A_(1).pdf
0.36 MB
Download
