Designed for Extreme Marine Conditions

PALFINGER davits are built for long-term operation in the most adverse and corrosive environments, ensuring durability and reliability.

Robust and Efficient System Design

The freestanding pivot davit features a deck-mounted base frame, davit arm, cylinders, winch, and hydraulic power pack – designed for safe and efficient launch and recovery of rescue boats.

Fully Compliant with International Standards

Meeting the latest IMO/SOLAS requirements and LSA Code, our davits guarantee proven safety and performance in demanding marine applications.

Models

PRH Series

The PRH Series features a fully hydraulic configuration that enables operators to proportionally control the entire launch and recovery process in a precise and controlled manner under a wide range of operational and weather conditions.

Hydraulic functions include pivoting, hoisting, and lowering, ensuring smooth and reliable operation throughout all phases of use.



The system is designed for straightforward installation and is supplied with its own dedicated, self-contained hydraulic power unit (HPU).

A variety of optional configurations allows the davit to be tailored to vessel-specific requirements, while its operator-friendly design and reliable performance make the PRH Series a trusted choice for cruise operators seeking efficient and long-term davit solutions.

NPDS Series

The NPDS Series features a fully enclosed davit structure that protects key components from wear and environmental impact, supporting long-term durability and reliable operation.

Its plug-and-play design enables quick and efficient installation while ensuring safe and dependable launching performance. Constructed with durable materials, the system helps reduce operational and maintenance costs over time.



The NPDS Series is designed to comply with the latest IMO/SOLAS regulations and authority requirements, ensuring safe operation in line with international standards. Multiple customization options allow the davit to be adapted to vessel-specific layouts and demanding operational conditions, and the system is also available in configurations suitable for rescue and fast-rescue boat operations.

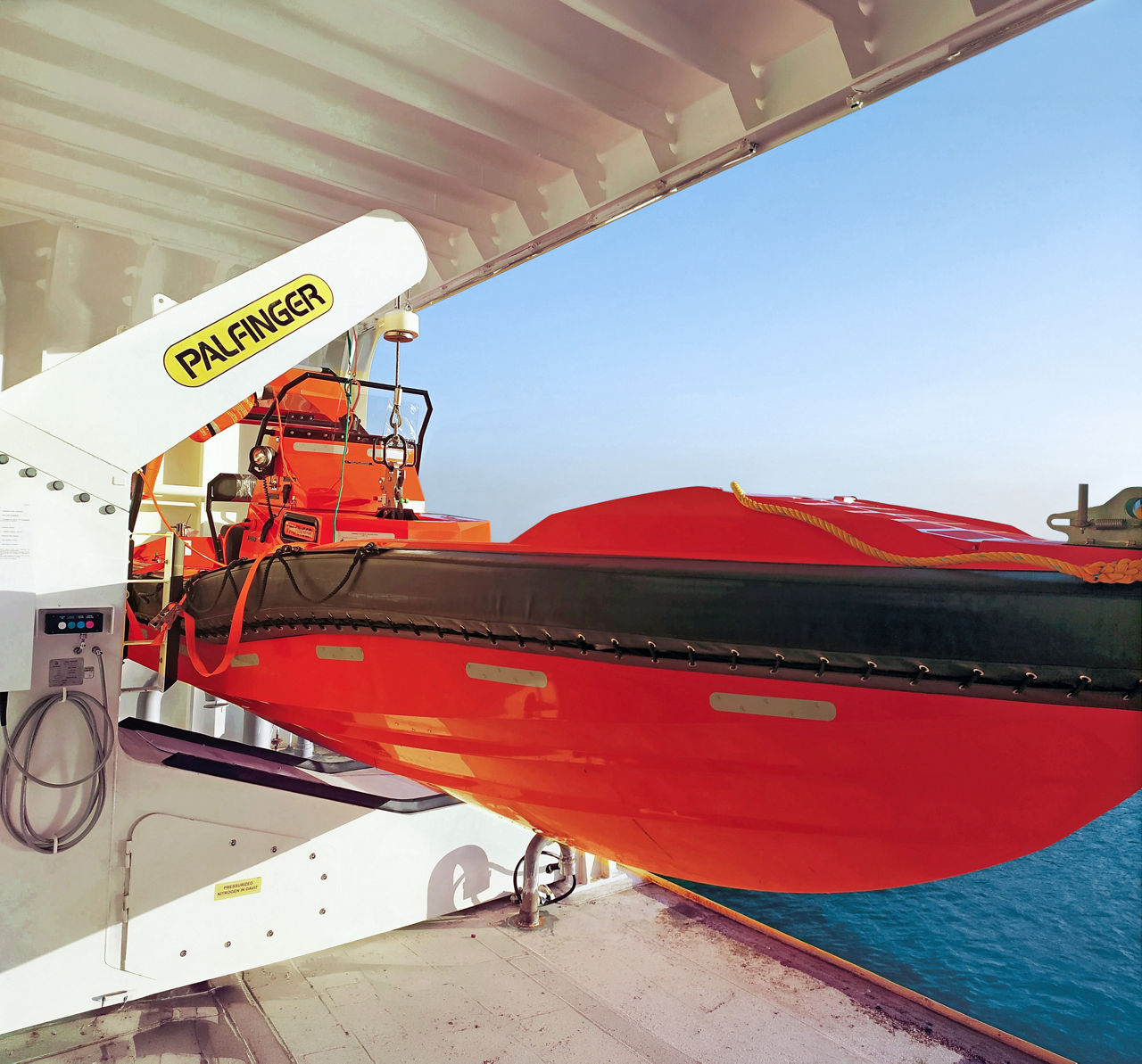

Fast rescue boat davit NPDS series
Options

Options

  • Constant tensioning system (if applicable)
  • Shock absorber
  • Boat supports
  • Ex-proof (if applicable)
  • Heating system
  • Winterization package
Range

Range

Type Safe Working Load (SWL)Max. Boat WeightHoistingOperation
A-FRAME (FAST) RESCUE BOAT DAVITS
PFHS 15

1.5 t

1529 kg

0-18 m/min (Electric)

Electric

PRHE 25-2

2.8 t

2549 kg

0-18 m/min (Electric)

Electric

PRHE 25 H 2

2.8 t

2549 kg

0-18 m/min (Hydraulic)

Hydraulic

PRHE 35-2

3.6 t

3600 kg

0-18 m/min (Electric)

Electric

PRH 35 H*

3.8 t

3823 kg

0-48 m/min (Hydraulic)

Hydraulic

PRH 75 H7.6 t7647 kg0-18.48 m/min (Hydraulic)Hydraulic

TypeSafe Working Load (SWL)Hoisting Operation
SINGLE ARM TOTALLY ENCLOSED DAVITS
NPDS 1800H1,8 t0-18 m/min Hydraulic
NPDS 1800 HFR1,8 t0-48 m/min Hydraulic
NPDS 3500H

3,2 t

0-18 m/min

Hydraulic

NDPS 35003,2 t0-48 m/min Hydraulic

* High speed, optional constant tensioning plus shock absorber
Max boat weight = Fully equipped and manned
