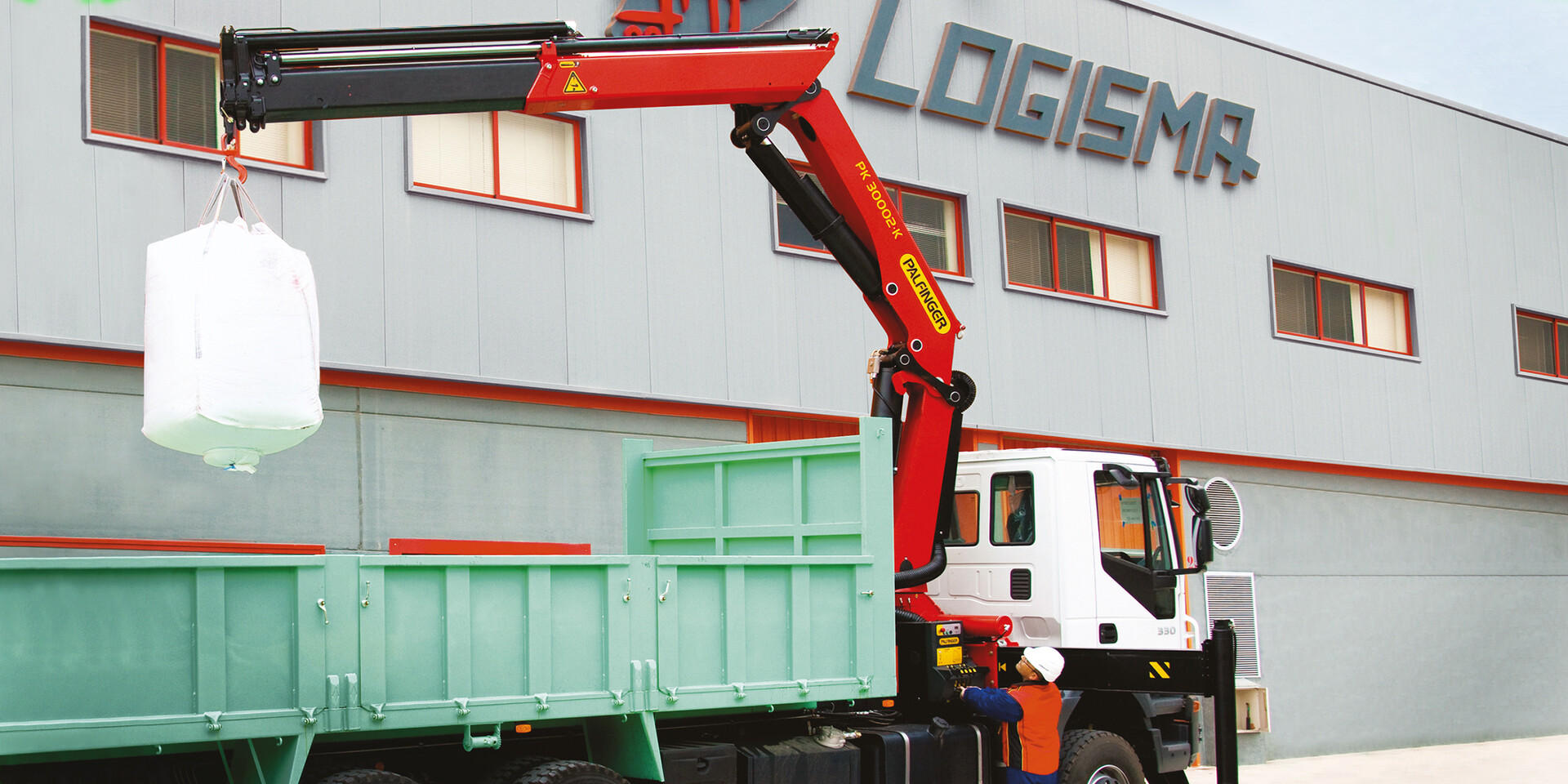

PK 30002-K High Performance
PK 30002-K High Performance
Loader Crane
| Max. lifting moment | 27.3 mt |
| Max. lifting capacity | 6800 kg |
| Max. hydraulic outreach | 12.6 m |
| Slewing angle | 400° |
| Slewing torque | 3.2 mt |
| Stabilizer spread (std) | 5.6 m |
| Fitting space required (std) | 0.92 m |
| Width folded | 2.53 m |
| Max. operating pressure | 320 bar |
| Pump capacity | 55 - 80 l/min |
| Dead weight (std) | 2790 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| A | 27.4 | 8.2 | 400 | 3.2 | 32.0 | 55-80 | 2790 | 2350 | 2525 | 915 |
| B | 26.9 | 10.4 | 400 | 3.2 | 32.0 | 55-80 | 2955 | 2350 | 2525 | 915 |
| C | 26.5 | 12.6 | 400 | 3.2 | 32.0 | 55-80 | 3099 | 2350 | 2525 | 980 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
