PK 27002 SH High Performance
Loader Crane
PK 27002 SH High Performance
| Max. lifting moment | 26.0 mt |
| Max. lifting capacity | 9300 mt |
| Max. hydraulic outreach | 21.3 m |
| Max. manual outreach | 23.3 m |
| Max. outreach (with fly jib) | 29.4 m |
| Slewing angle | ∞ |
| Slewing torque with 1 gear | 2.8 mt |
| Slewing torque with 2 gears | 3.4 mt |

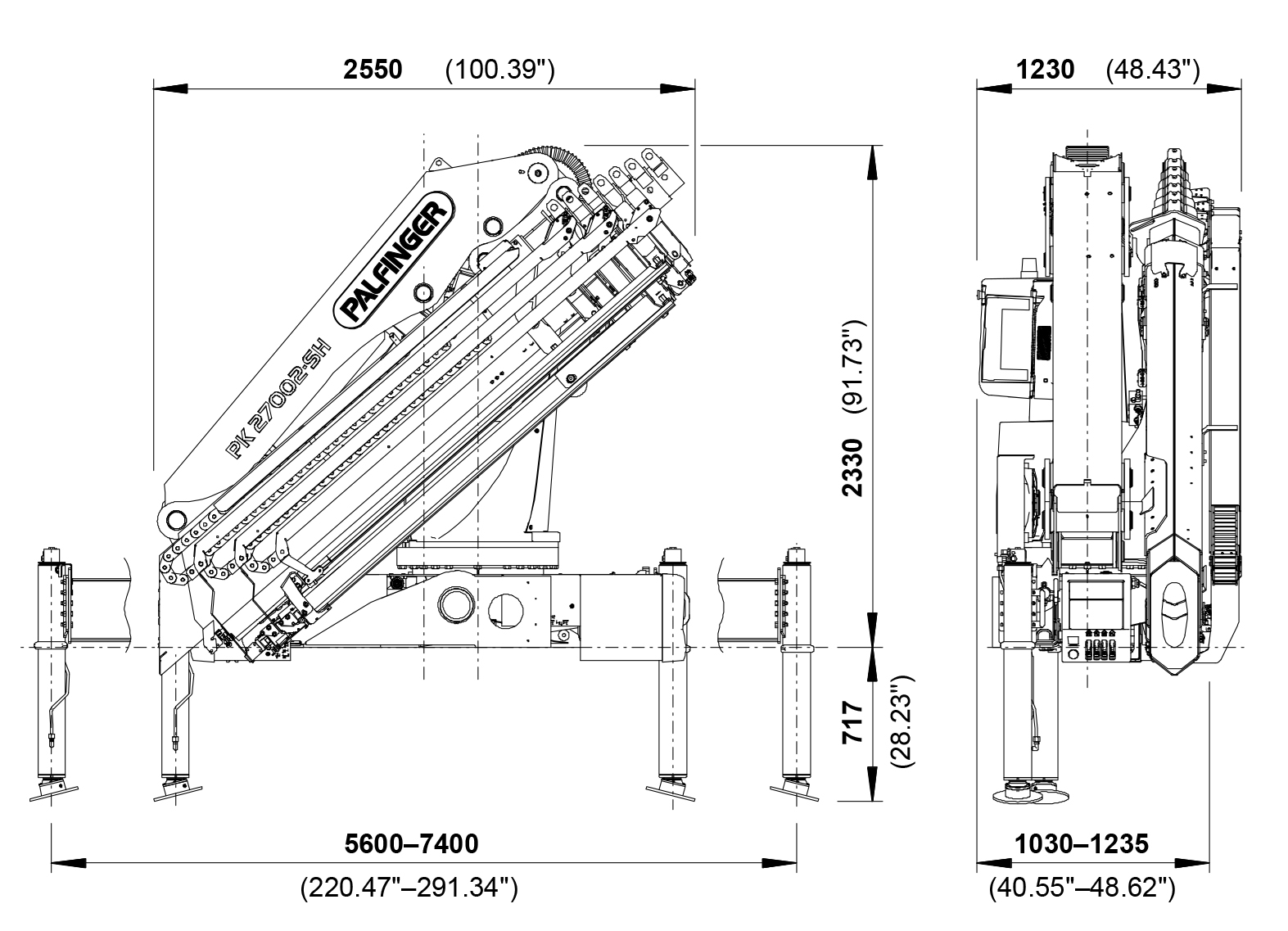

| Stabilizer spread (std) | 5.6 m |
| Fitting space required (std) | 1.01 m |
| Width folded | 2.55 m |
| Max. operating pressure | 365 bar |
| Pump capacity | 80 - 110 l/min |
| Dead weight (std) | 2679 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| A | 25.3 | 8.1 | ∞ | 2.8 / 3.4 | 36.5 | 80-110 | 2722 | 2330 | 2550 | 1010 |
| B | 24.7 | 10.2 | ∞ | 2.8 / 3.4 | 36.5 | 80-110 | 2903 | 2330 | 2550 | 1010 |
| C | 24.2 | 12.4 | ∞ | 2.8 / 3.4 | 36.5 | 80-110 | 3082 | 2330 | 2550 | 1090 |
| D | 23.6 | 14.6 | ∞ | 3.4 | 36.5 | 80-110 | 3319 | 2330 | 2550 | 1130 |
| E | 23.2 | 16.8 | ∞ | 3.4 | 36.5 | 80-110 | 3465 | 2330 | 2550 | 1130 |
| F | 22.8 | 19.1 | ∞ | 3.4 | 36.5 | 80-110 | 3578 | 2330 | 2550 | 1140 |
| G | 22.5 | 21.3 | ∞ | 3.4 | 36.5 | 80-110 | 3687 | 2330 | 2550 | 1160 |

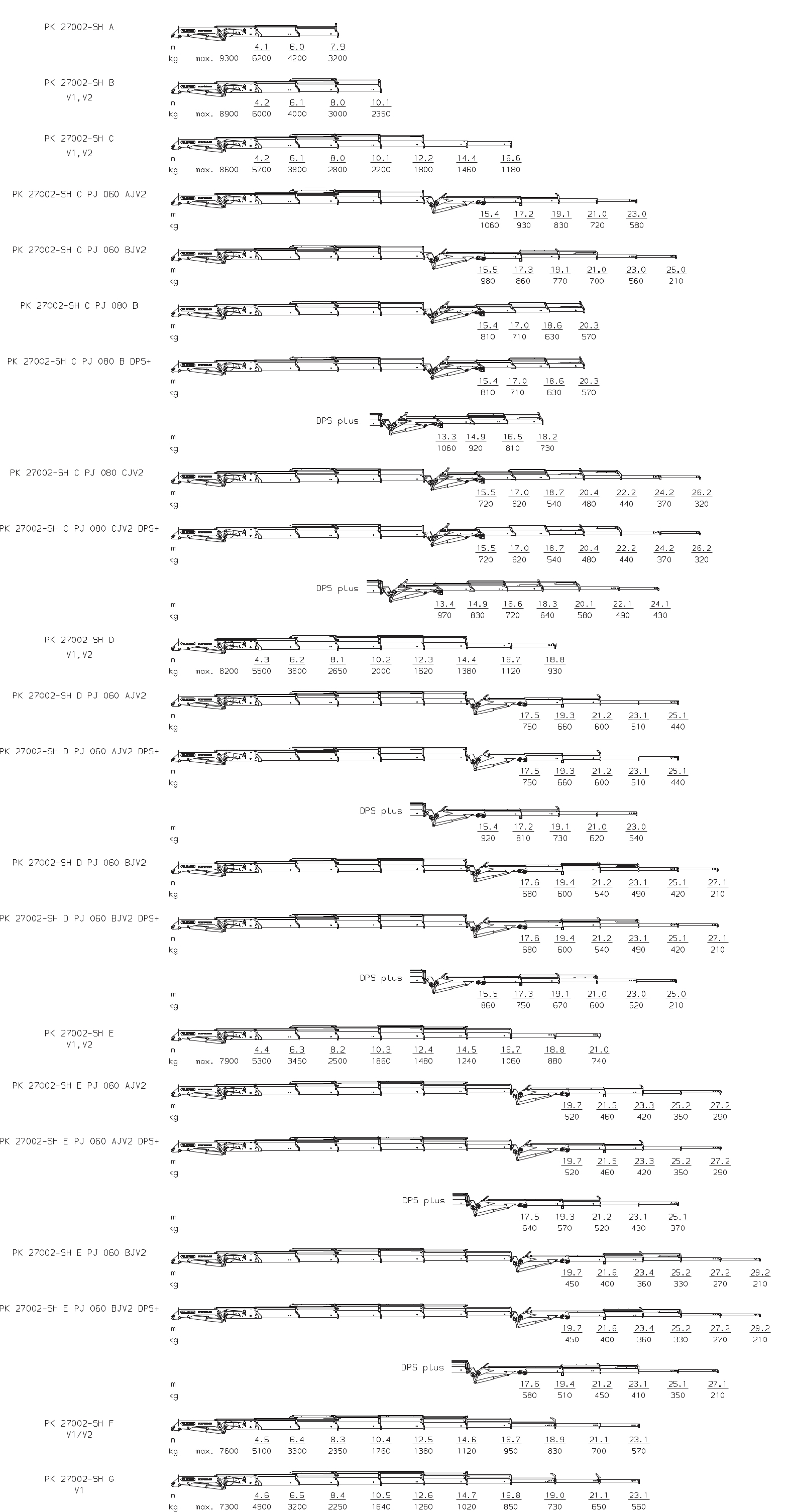

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
