PAL Pro 39 Mechanics Truck

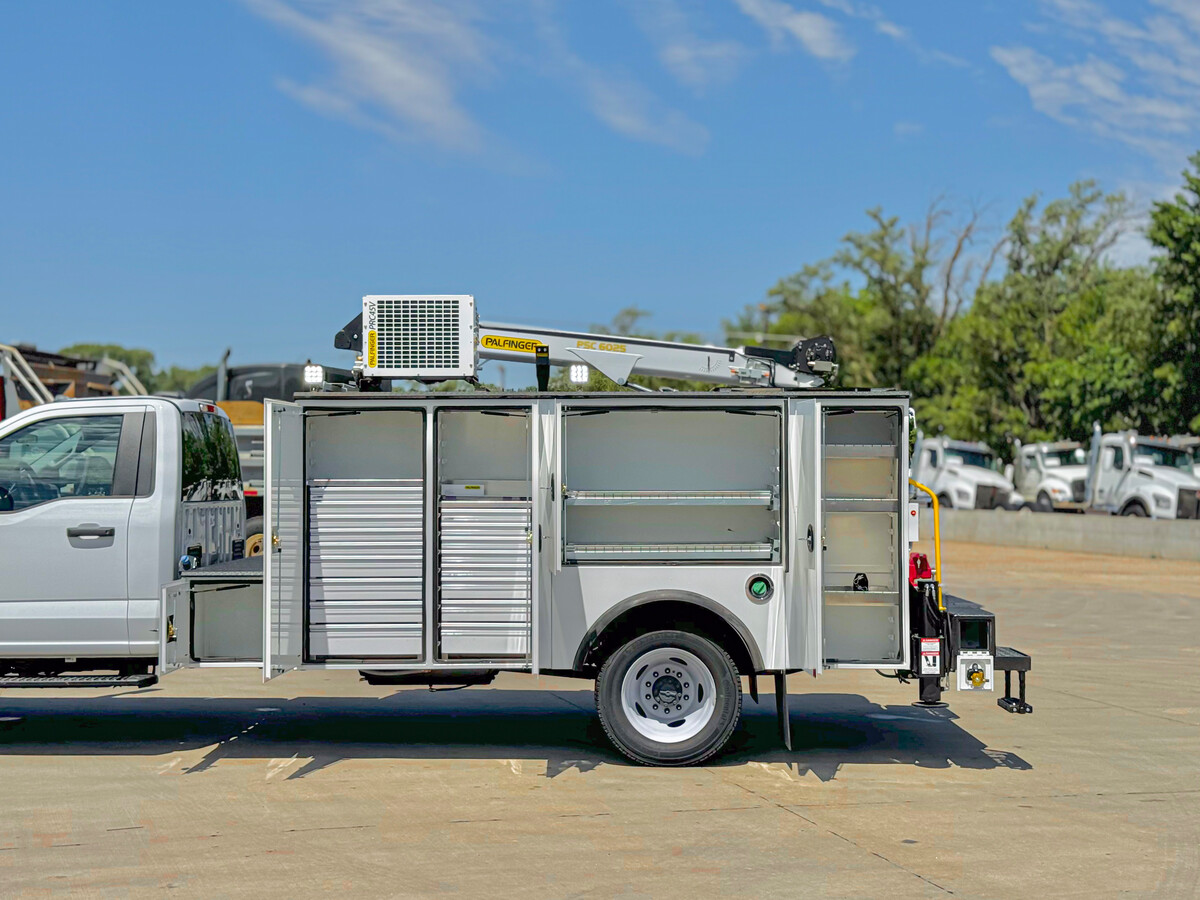

New PAL Pro 39-11SS60CS Mechanics Body

• 60” sides on the driver side full length/60” raised compartment on the passenger side front two compartments only/welding bottle compartment and welder mounting plate on compartment top-driver side rear/44” tall compartments on passenger side horizontal and rear compartment.
• Standard E-coat protection/39,000 ft/lb. Rated body/CTECH drawer units are in the front two compartments, and driver-side/pull-out drawers are in both horizontal compartments.
• Interior LED strip lighting in all compartments/External LED light package, including swivel boom tip lights.
• 21” work bench bumper with flip-up lid for additional storage access in the bumper’s center section.
• Vise plate mount with vise/manual master lock system on each side of the bed for single-point securement of side doors.
• Line-X covers the complete cargo area, load bed sides, compartment tops, workbench area, and front vertical panels of the bed.
• Rear control compartment for all body operations and hose reel
• Full hydraulic outriggers at the rear.
• 24” auxiliary welder deck mounted between the crane bed and cab of the truck with line-x covering on the top/integral storage boxes on both sides of the welder deck.
• (8) Tie-down rings in load space

PALFINGER PSC6025 Hydraulic Crane

• 6,000 lb rating
• 25’ extension
• 38,5000 ft. lbs rated lifting movement
• 6,000 lbs. max. lift.
• 25' reach
• Wireless remote control

PALFINGER PRC45V Rotary Screw Compressor

The PALFINGER PRC 45V hydraulic-driven rotary screw compressor provides up to 45 CFM at 150 PSI, offering reliable air power for heavy-duty tasks in a compact design.

• Hydraulic-driven rotary screw
• 45 CFM@150psi

2023 Ford F550 XL

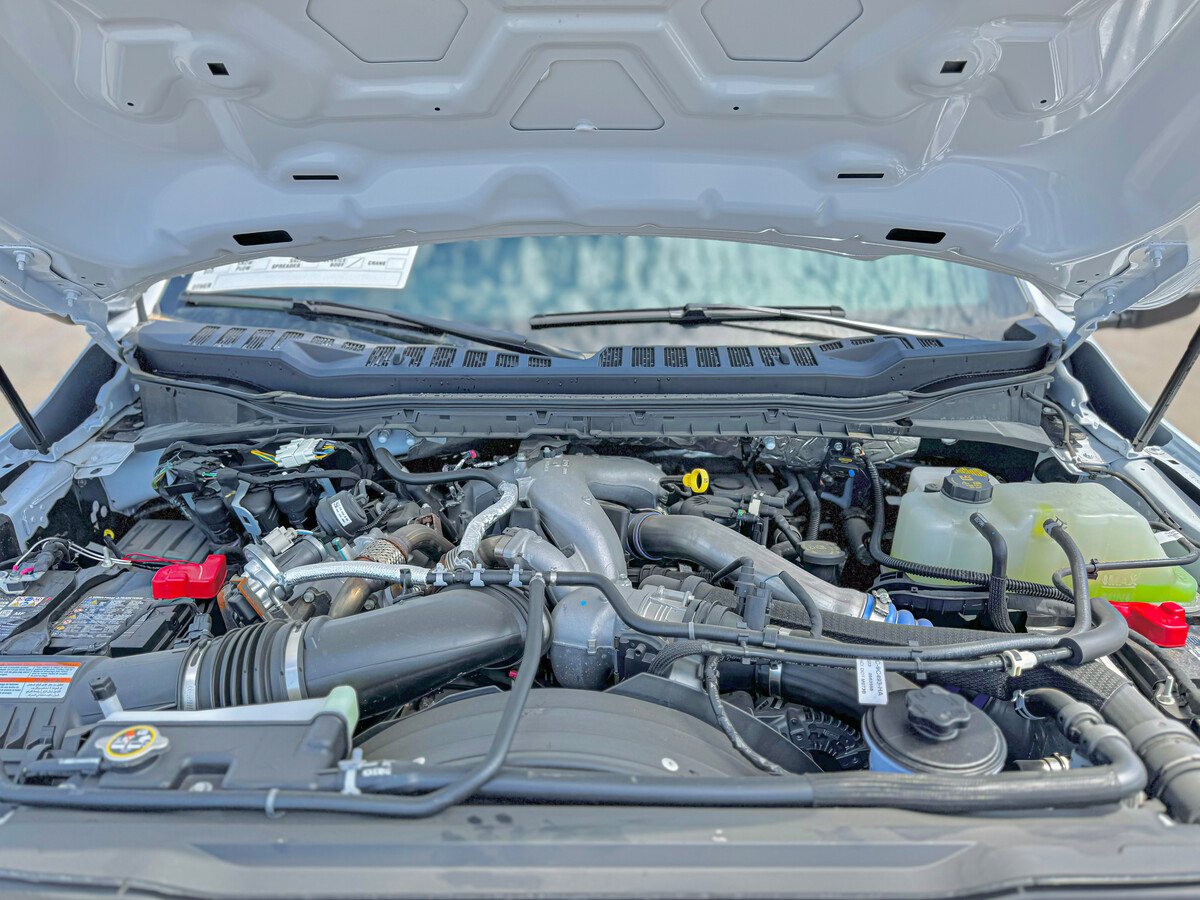

• Engine: Powerstroke 6.7 Turbo Diesel @ 330 HP
• Transmission: 10-Speed Automatic
• Wheels: Steel
• Suspension: Spring
• GVWR: Class 5
• Front Axle Rating: 7,500 lbs
• Rear Axle Rating: 15,500 lbs
• Gear Ratio: 4.30
• Wheelbase: 169''
