Ford
PAL Pro 39 Mechanics Truck
2022 F-550 SuperCab 4x4 Diesel
Stock number: PALPRO39
Offer information
Location details
5125 Clay Ave. SW, Grand Rapids, MI, 49548 - United States
Dealer details
Arista Truck Systems, Inc. | Contact: AJ DeLange Dealer E-mail
ajdelange@royaltrailersales.com Dealer phone
1-800-858-3659
Availability
Coming Soon
Product type
Mechanics Truck Stock number

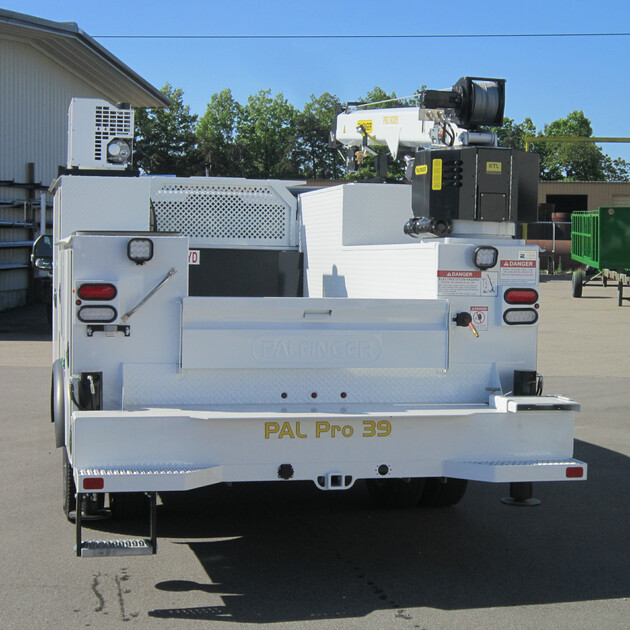

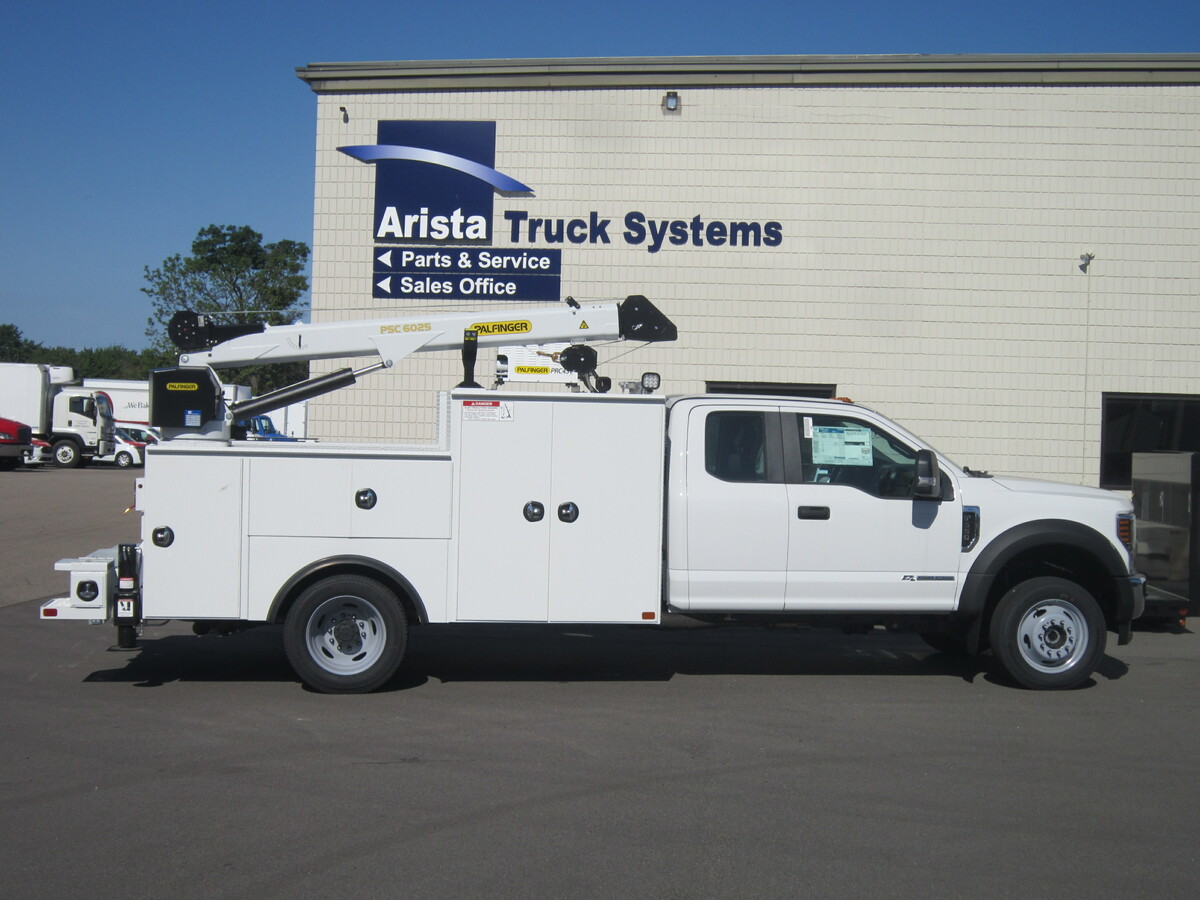

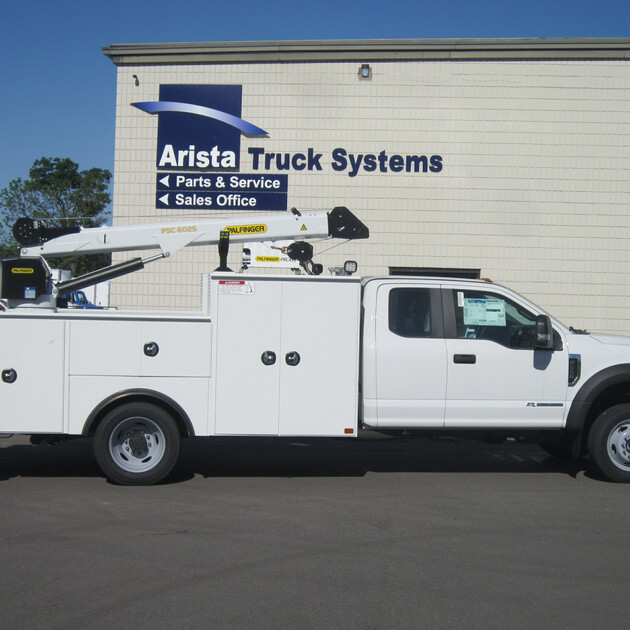

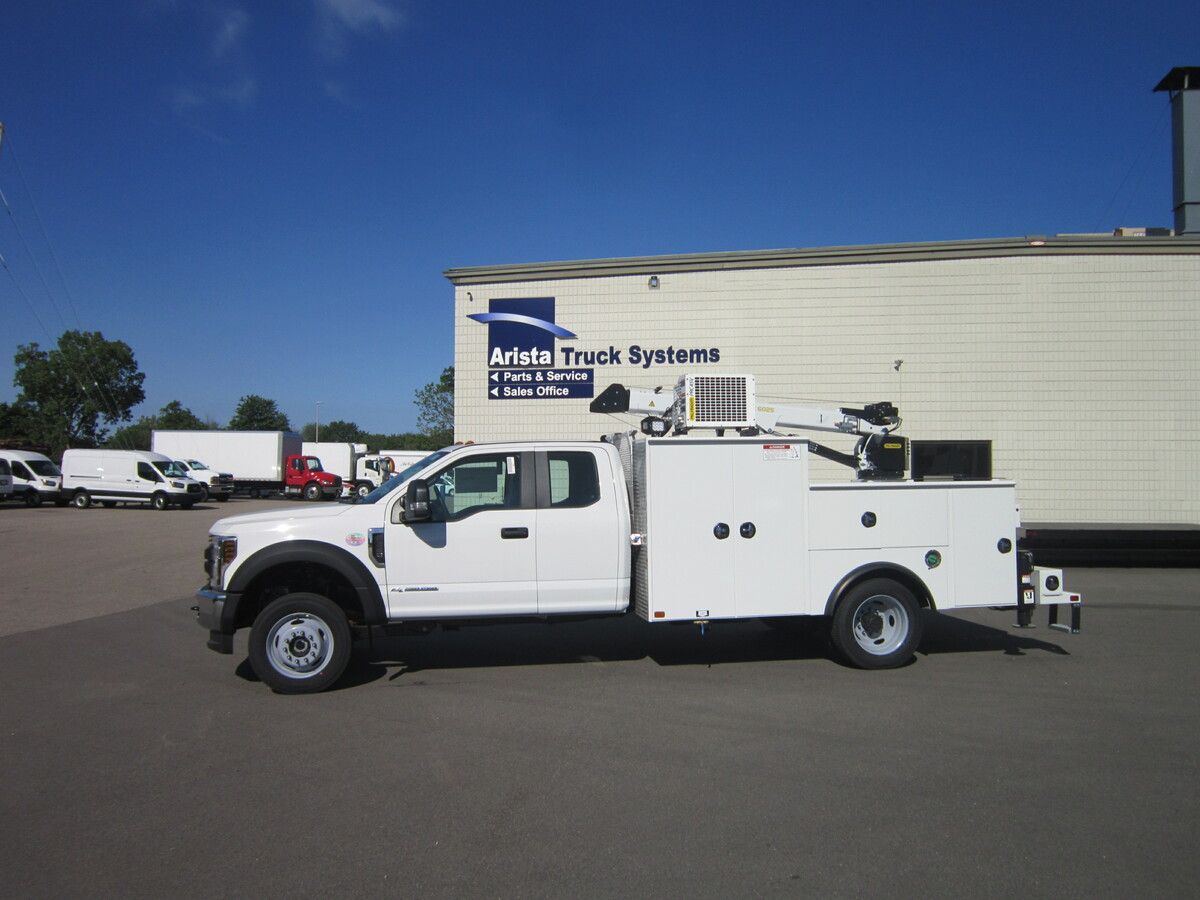

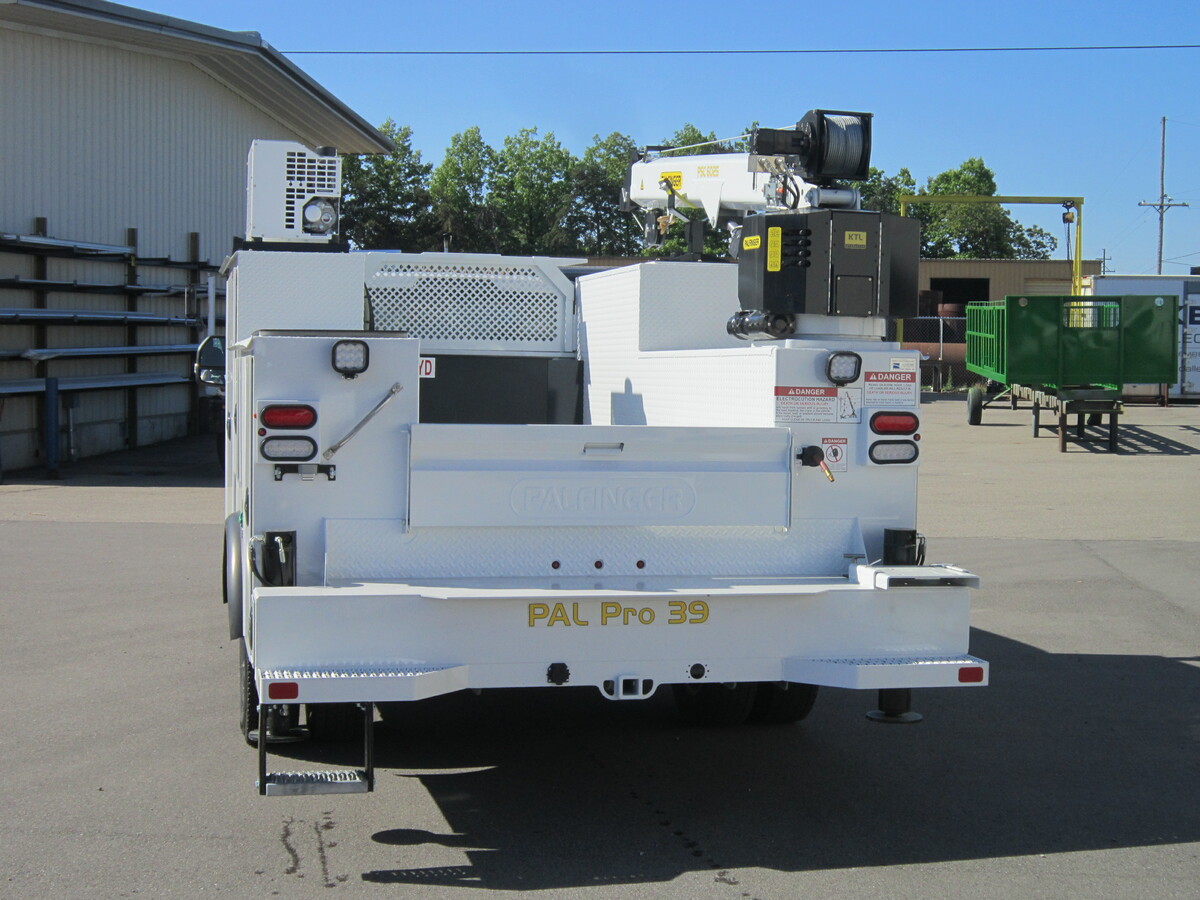

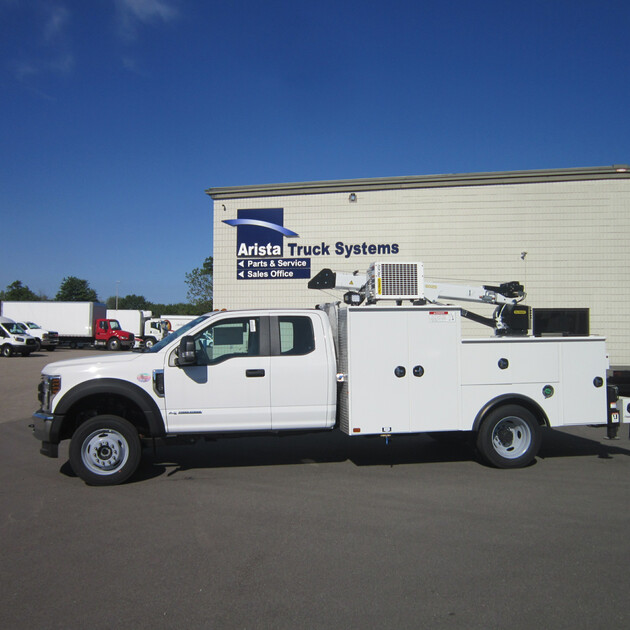

PALPRO39 PAL Pro 39 Mechanics Truck
- 11’ long steel mechanics body with raised compartments
- 44” tall compartments with 60” tall 1st and 2nd compartments on the streetside and curbside
- A-60 galvanneal steel e-coated body
- Double panel aluminum doors
- 21" workbench bumper with power down outriggers on the rear and integrated 2” hitch receiver
- Removable vise mounting braket on the right rear corner
- LED compartment lights and 4 exterior LED work lights
- Welder mounting plate driver side rear
- Integrated mounted plates on the top of the body for air compressor, boom rest, welder, ect.
- LED rear stop/tail/turn lights
Service crane technical details
- PALFINGER PSC 6025 Telescopic Service Crane
- 6,000 lb winch rating @ 3' reach. / 1,380 lbs. capacity @ 25' reach and 38,500 ft/lb lifting moment
- 25’ hydraulic boom reach
- Wireless fully proportional radio remote controls
- Winch damage prevention system
- Boom support rest
Compressor technical details
- PRC 45V Hydraulic Rotary Screw Air Compressor
- 45CFM @ 150 PSI
- Integrated oil cooler with fan
- Cold weather climate kit: includes ambient temp sensor and oil heater.
- 6 gallon air receiver under body with ball valve bleder for moisture
Chassis details
- 2022 Ford F-550 SuperCab 4x4 Diesel
- 6.7L Diesel Engine
- PTO with integrated pump for Ford automatic transmission
- Direct mount hydraulic pump
- Hydraulic oil reservoir mounted in front of the bulkhead. 30-gallon capacity
- Ford Super Duty adapter
