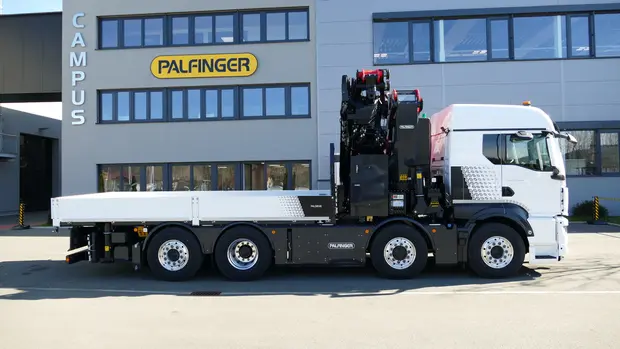

PK 92002 SH
MAN TGS 35.540 8x2H-6 BL
Contract number: Paldrive 560 BAUMA
Specification
All images are from a reference project
Paldrive 560 will be ready for delivery from week 29 /2025
Paldrive 560 will be ready for delivery from week 29 /2025
PK 92002 SH
| lifting moment | 85,5 mt |
| max. outreach incl. Fly-Jib | 32,5 m |
| max. lifting capacity | 25.500 Kg |
| swivel range | endless |
| rope whinch type | 3,5to |
MCC-INSTALLATION
| low built Platform | |
|---|---|
| Platform length | 5.400 mm |
| Platform width | 2.480 mm |
| frontwall height | 1.400 mm |
| side & rearwall height | 400 mm |
| loading height | 1.230 mm |
| Platform floor | Plywood |
MAN TGS 35.540 8x2H-6 BL
| construction year | 2024 |
| power | 540 Hp |
| gearbox | 12.28 OD Tipmatic |
| main Wheelbase | 4.775 mm |
| cabin | TM - the comfortable |
| GSR II options | yes |
Offer information
Location details
Lengau, 5211 - Austria
Dealer Name
Palfinger EMEA GmbH AT
Product type
New Contract number
Paldrive 560 BAUMA Product
| Manufacturer | Palfinger |
|---|---|
| Model | PK 92002 SH |
| Construction year | 2025 |
|---|---|
| Lifting moment | 85,5 mt |
| Outreach / Lifting power | 32,5 m / 680 kg |
truck
| Truck manufacturer | MAN |
|---|---|
| Construction year | 2024 |
| Drivers cabine | TM |
| Power | 540 PS |
| Emmission standard | EURO 6 |
| Axes | 8x2*6 |
|---|---|
| Gross vehicle weight | 32.000 kg |
| Dead weight | 27.100 Kg |
| Payload | 4.900 Kg |
| Payload category | <6t |
| Construction | Crane and platform |

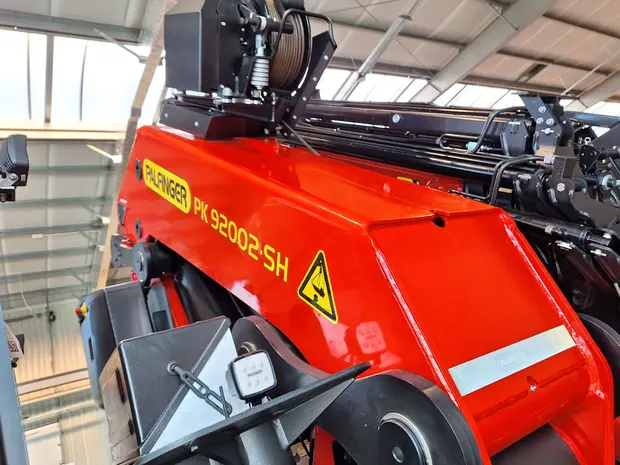

PK 92002 SH
HYDRAULIC & TECHNICS
- 8 hydraulic boom extensions (G)
- High-speed boom extension system with return oil recovery
- Swivel range endless
- Hydraulic support leg extension (max.support width 8.600mm)
- Support legs can be swiveled hydraulically through 180°
- Additional hydraulic support (support width ca. 7.100 mm)
- Hose equipment for two additional devices including quick coupling (multi-faster)
- 3,5to cable winch on the main arm (hydr. foldable)
- Rope length: 90m
ASSISTANCE SYSTEMS
- Paltronic 150
- HPSC + LOAD
- Remote controlled stabilizers
- CPS (cabin protection)
- FPS (Frame Protection System)
- P-FOLD (Folding Assistant)
- AOS (Active Oscillation Suppression)
- SRC (Synchronised Rope Control)
- RTC (Rope Tension Control)
EQUIPMENT
- Palcom P7 radio remote control /8 functions with cross levers
- Working lights on the articulated arm
- 8,0to & 11,5to load hook
- 2 strand rope equipment on the Crane
- Painting RAL3020
- hydraulic oil tank 350 l
PJ 125
Configuration
- 6 hydraulic extensions (E)
- High-speed extension system with return oil recovery
- Hydr. tiltable upwards by 25°
- MFA-L - Multifunctional adapter
- 2 strand rope equipment for the PJ 125
- Working light at the PJ 125
- Heavy load attachment (LHA07)
Installation
- Palfinger MCC low build platform (BAUMA unit)
- Platform inner dimenstions: 5.400mm x 2.480mm
- Front wall: height 1.400 mm including working lights, towing points and retaining bar for chains and loops
- Side- and rearwalls height: 400 mm
- Platform floor 27 mm plywood, impregnated and sealed
- Various lashing options on the platform floor
- Loading height: 1.230mm
- 1 pair of Container locks extendable (max. 3.000mm width)
- 6 working lights
- 2 reversing lights
- 4 LED flashlights
- LED environment lightings
- 1 beacon light mounted at the rear of the vehicle
- Rear view camera
- Emergency power pack for basket operation
- Heavy duty tool box
- 2 pcs. of heavy duty chain-trays at the additional stabilizers
- Two-part telescopic ladder
- Trailer coupling: ROCKINGER Typ 400 G 150A
- manually extendable underrun protection
- 2 wheel chocks
MAN TGS 35.540 8x2H-6 BL
- Engine: 540 Hp, torque max. 2.650 Nm
- Gearbox: 12.28 OD Tipmatic
- Axle distance: 1.795mm + 2.980mm + 1.350mm
- leaf suspension on 1st and 2nd axle - air suspension on 3rd and 4th axle
- Fuel tank 390l / AD-Blue 35l
- Tires 1st, 2nd & 4th axle: 385/65R22.5
- Tires driven axle: 315/80 R22.5
- Rims on all axles: aluminium Alcoa Durabright EVO
- Cabin colour: VERKEHRSWEISS RAL 9016 / chassis colour: RAL 9011

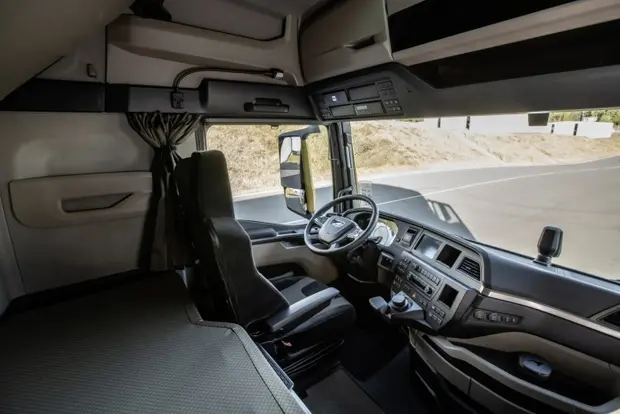

- Cabin type: TM - the comfortable
- Premium Cabin interior
- auxiliary heating: 4kW
- Multifunctional steering wheel
- Infotainment system equipped with 12.3-inch colour display
- GSR II options included
- construction Year: 2024
